- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-605DTP
- Usage:
- home security, security system
- Name:
- PIR And Microwave Detector Motion Sensor PIR Sensor
- Operating voltage:
- DC9V-24V
- Current consumption:
- ≤30mA
- Alarmindicator:
- Green: infrared triggered, Yellow:microwave triggered, Red:Alarm
- Tamper output:
- NC, contact DC28V 100mA
- Alarm output:
- NC/NO optional, contact DC28V 100mA
- Detecting distance:
- 12m
- Self-testing time:
- 60s
- Pet immunity:
- 20kg
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 12.5X6.4X4.8 cm
- Single gross weight:
- 0.25 kg
- Package Type:
- white box or neutral color box
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 12 To be negotiated

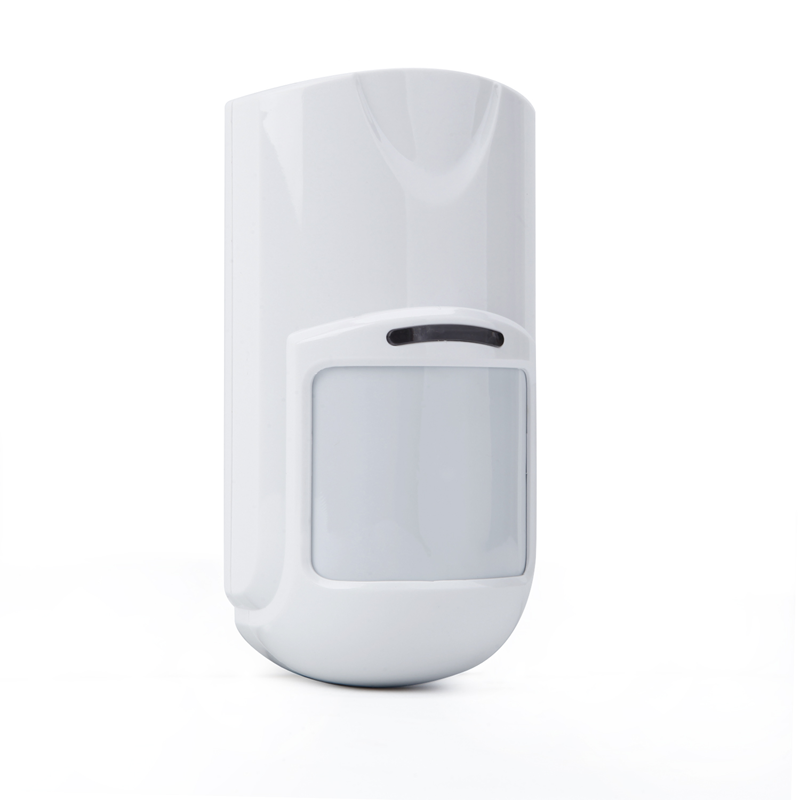

Cheap Pet-friendly Tri-Tech PIR And Microwave Detector Motion Sensor PIR Sensor
The product is a wall-mounted passive infrared detector with high stability. It adopts advanced signal processing technology, providing superhigh detection and anti-false alarm abilities, and MCU processing ensuring the reliability from the design basis. When an intruder passes through the detection area, the detector will detect the movements of human body automatically. If any movements, it will send alarm signal to the connected alarm host. It is suitable for safety protection in residential houses, villas, factories, shopping malls, warehouses and office buildings etc.
Main features:
1.MCU processing, anti-false alarm efficiently
2.Double temperature compensation
3.Pulse count adjustment
4.Anti white light interference
5.Anti RF interference(20V/m-1GHz)
6.Fresnel lens
7.Wall / corner mounted
8.Alarm output NC / NO optional
9.SMT manufacture technology
10.Execute criterion: GB10408.1, GB10408.5
Technical specification:
Model NO. | SR-605DTP |
Operating voltage | DC9V-24V |
Current consumption | ≤30mA |
Alarm indicator | Green: infrared triggered, Yellow:microwave triggered, Red:Alarm |
Tamper output | NC, contact DC28V 100mA |
Alarm output | NC/NO optional, contact DC28V 100mA |
Alarm time | 0.3m/s - 3m/s |
Self-testing time | 60s |
Microwave antenna type | X-Band plane antenna with high frequency GaAs :FET oscillator |
Pet immunity | 20kg |
Detecting angle | 90° |
Detecting distance | 12m |
Installation | Wall or corner mounted |
Working environment | -10℃~+50℃,(≤95%RH No congelation) |
Dimension | 123*62*46mm |

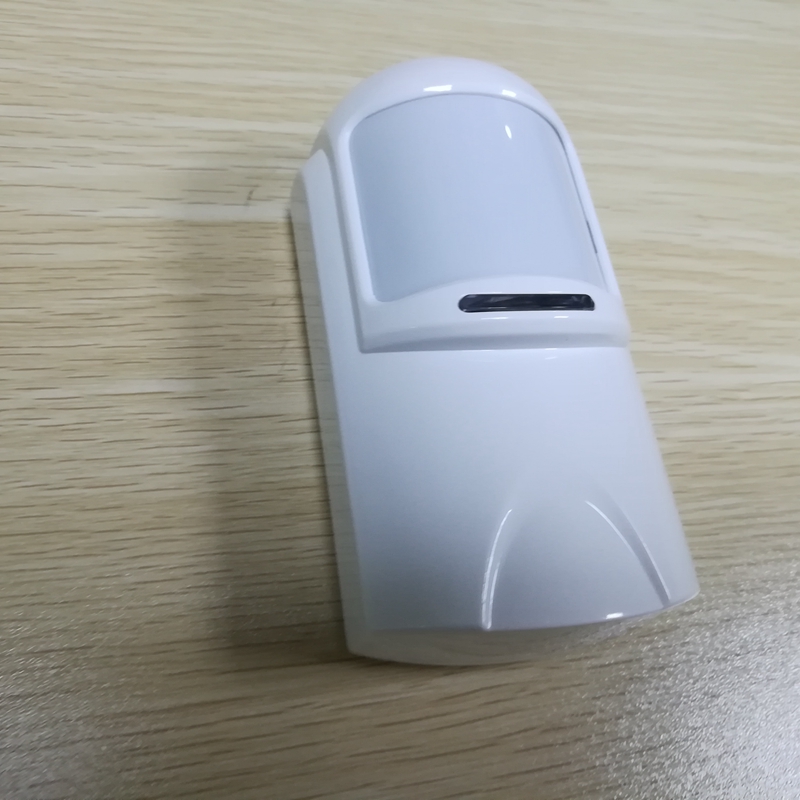

Product show:
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &
development of fire alarm and security products, including Fire alarm control panel, smoke
detector,heat detector,gas detector, motion detector, fire alarm bell/strobe siren,
manual call point, magnetic contact, emergency exit etc.
