Outdoor Security PIR Infrared movement Sensor detector street light PIR motion sensor automatic switch

Click on the image to view the original image

Product：	views：2Outdoor Security PIR Infrared movement Sensor detector street light PIR motion sensor automatic switch
Branch：	OEM/ODM
Size：	10X10X10 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:27

Product Details

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: OEM/ODM

Model Number:: SR-612O

Usage:: light control

Theory:: motion sensor

Output:: Infrared sensor

Power supply voltage:: 220V/AC ~ 240V/AC

Power frequency:: 50 ~ 60Hz

Ambient Light:: Detection range: 8m max

Time Delay:: min: sec +- 3 seconds, max: 7 minutes +- 2 min (adjustable)

Detection angle:: 180 degree

Operating Temperature:: -20 ~ 50 degree

Relative humidity:: less than 93% RH

Installation height:: 1.5m to 3.5m

Power consumption:: 0.45W (static 0.1W)

Detection Motion Speed:: 0.6 to 1.5m / s

Packaging & Delivery

Selling Units:: Single item

Single package size:: 10X10X10 cm

Single gross weight:: 0.25 kg

Package Type:: white box

Lead Time:

Quantity(Piece)	1 - 500	>500
Est. Time(days)	10	To be negotiated

Product Description

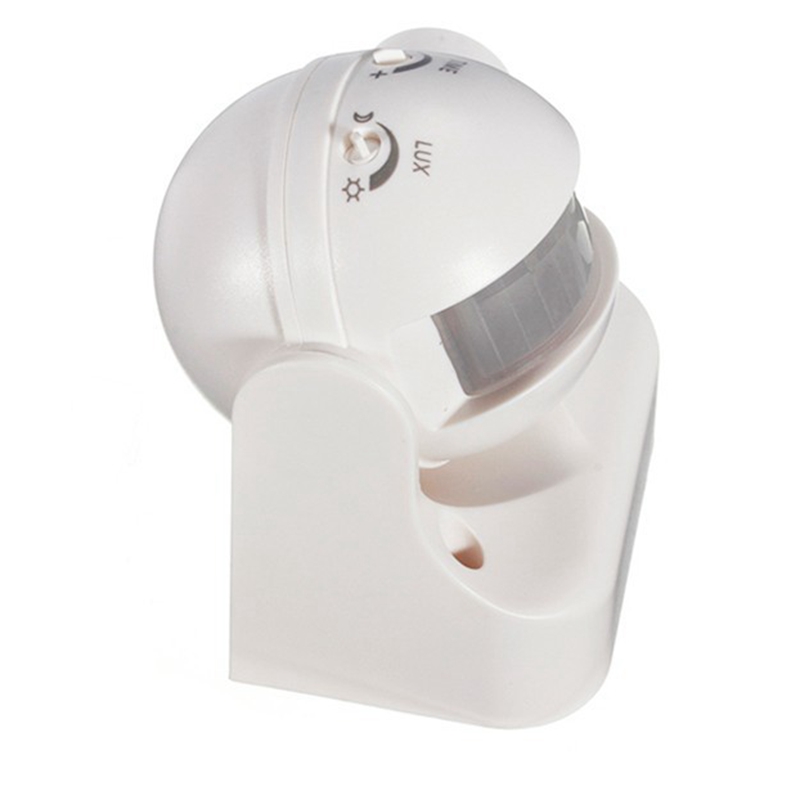

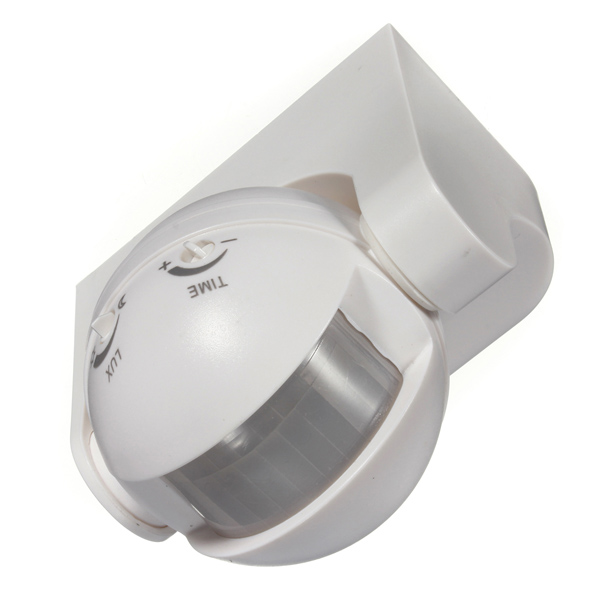

PIR Detector: motion light switch, Outdoor SR-612O

This product is the use of far-infrared sensor to detect infrared rays emitted by the human body

comparison operator, automatically control the lamp light off; turn on the lights by the the imported

chip set lighting time, intelligent control and energy saving. This product is widely used in stairways, basements, toilets and other places, is a new type of energy-saving electronic switch.

Main technical parameters:

Power supply voltage	220V/AC ~ 240V/AC
Power frequency	50 ~ 60Hz
Ambient Light	<3LUX to daylight illumination (adjustable, adjustable night mode to 24-hour mode)
Detection range	8m max
Load power	the principle of resistive electrical resistive 1200W (incandescent), emotional 300W (energy saving lamps, fluorescent lamps, ring tube, LED exhaust fan, alarms, and other appliances) (220V/AC 240V/AC)
Time Delay	min: sec +- 3 seconds, max: 7 minutes +- 2 min (adjustable)
Detection angle	180 degree
Operating Temperature	-20 ~ 50 degree
Relative humidity	less than 93% RH
Installation height	1.5m to 3.5m
Power consumption	0.45W (static 0.1W)
Detection Motion Speed	0.6 to 1.5m / s
IP grade	IP44
