Supplier price mini infrared pir human wired alarm mini led 12v curtain motion sensor types of pir sensor
Supplier price mini infrared pir human wired metal alarm mini led 12v curtain motion sensor types of pir sensor
This product is the wired curtain PIR detector. Hereinafter be called the detector. It adopts advanced technology in signal processing and provides superhigh detection and anti false alarm performance, which ensures its stability in design. Any intruder passing through the detecting area, it will automatically detect the body movement. Any dynamic movement, it will send the alarm signal to the mainframe. This product is suitable for the safety in residential areas, villas, factories, shopping malls, warehouses and office buildings etc.
Main features:
1.Screwing-type mounting bracket, more stable2.Adjustable detecting distance
3.Auto temperature compensation
4.Low power indication
5.Tamper alarm function
6.Alarm delay optional
7.Anti RF(20V/m -1GHz)
8.Wireless signal output
9.Low power consumption design
10.SMT process, anti-RFI, anti-EMI
Technical specification:
| Operating voltage | DC9-24V |
| Consumption current | ≤18mA(DC12V) |
| Operating temp | -10ºC~+50ºC |
| Installation mode | wall mounted |
| Installation height | about 1.8m |
| Detecting distance | 9m |
| Detecting angle | 15 degrees |
| Alarm output | N.C |
| Anti-dismantle switch | N.C |
| Outline size | 100*55*47.5*mm |

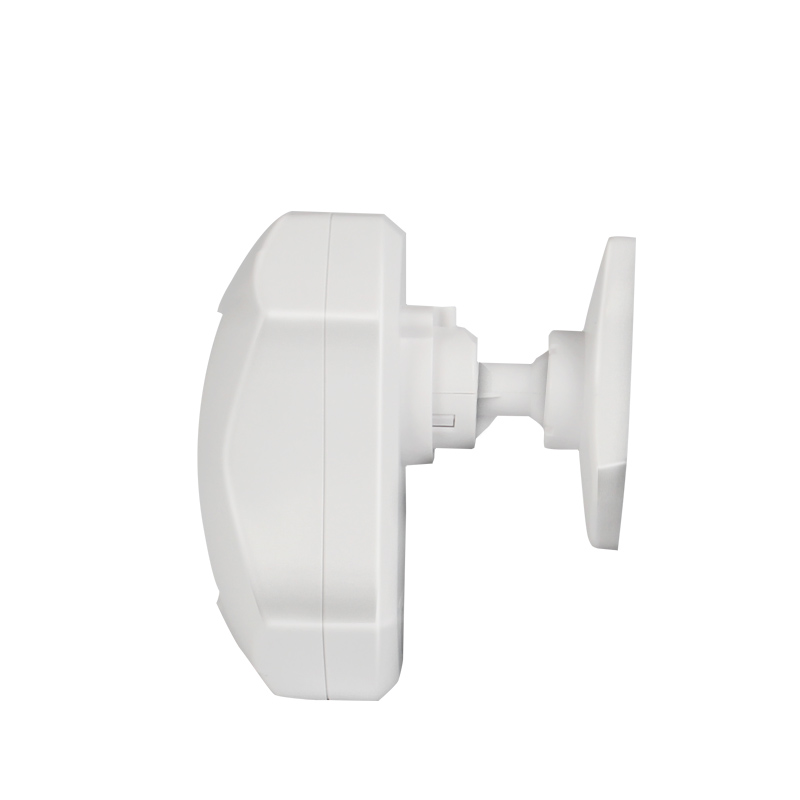

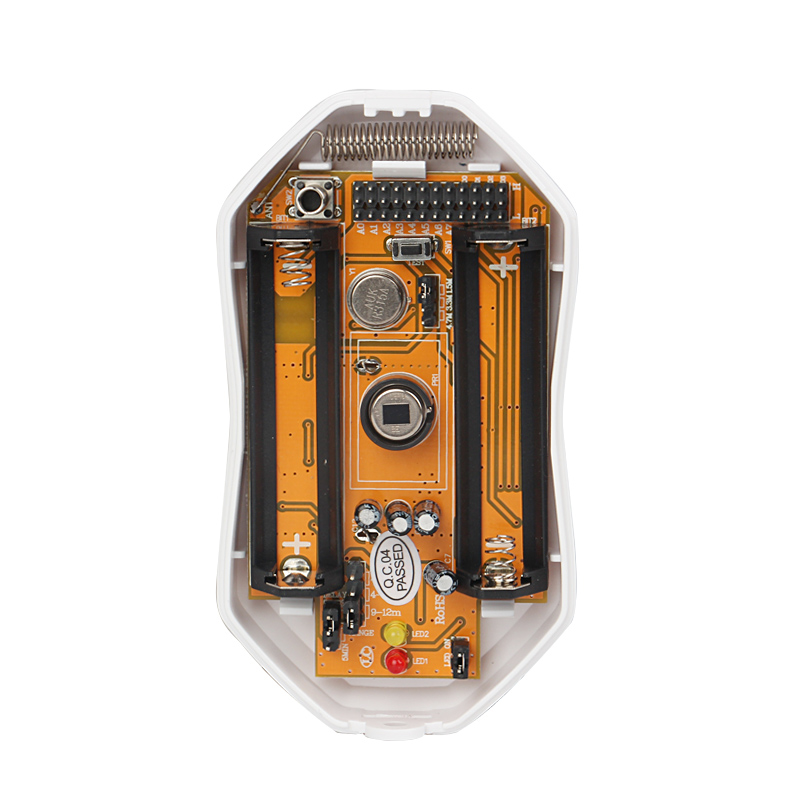

Product Pictures:
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,BT Module etc. Enter more
1:Can I get one sample for test before big order ?
Sure, you can.Please leave a message we will contact you soon.
2. Can I customized LOGO?
Yes you can. Packaging, products, instructions can be printed logo.
3. Can I customized functions?
Yes you can, we have professional R&D team to support best service, and give you best suggestions.
4. How about the quality of your products?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our products quality.
5. How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
6. When can you ship out my order after my payment?
Normally samples order: about 5-7 days; mass order 2-3 weeks.
7. Can I visit your factory and company office?
Sure, welcome ,any time!
