Click on the image to view the original image
Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- OEM
- Model Number:
- SR-612B
- Size:
- 86MM*86MM
- Max. Current:
- 10A
- Max. Voltage:
- AC110-220V (50/60Hz)/DC24V
- Mechanical Life:
- 10 Years, 500,000 times
- Name:
- 220V 360 indoor ceiling mount pir infrared motion sensor light switch
- Color:
- White
- Function:
- Lighting Control
- Operating power:
- 800W
- Operating Temperature:
- -20 °C ~ +50 °C
- Installation Method:
- Ceiling mounted
- Detecting angle:
- 360 degree
- Contacting way:
- input 220VAC, output 220VAC
- Lux range:
- 5 Lux ~ 500Lux ± 20% ajustable
- Detector destance:
- 8 M
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 8.8X8.8X3 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- white box or neutral color box
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 10 To be negotiated
220V 360 indoor ceiling mount pir infrared motion sensor light switch
Product Description
Technical specification:
| Rated voltage | AC110-220V (50/60Hz)/DC24V |
| Operating Temperature | -20 °C ~ +50 °C |
| Operating power | 800W |
| Installation Method | Ceiling mounted |
| Detecting angle | 360 degree |
| Contacting way | input 220VAC, output 220VAC |
| Lux range | 5 Lux ~ 500Lux ± 20% ajustable |
| Delay range | 16~1000 Secs ± 30% |
| Detector destance | 8 M |

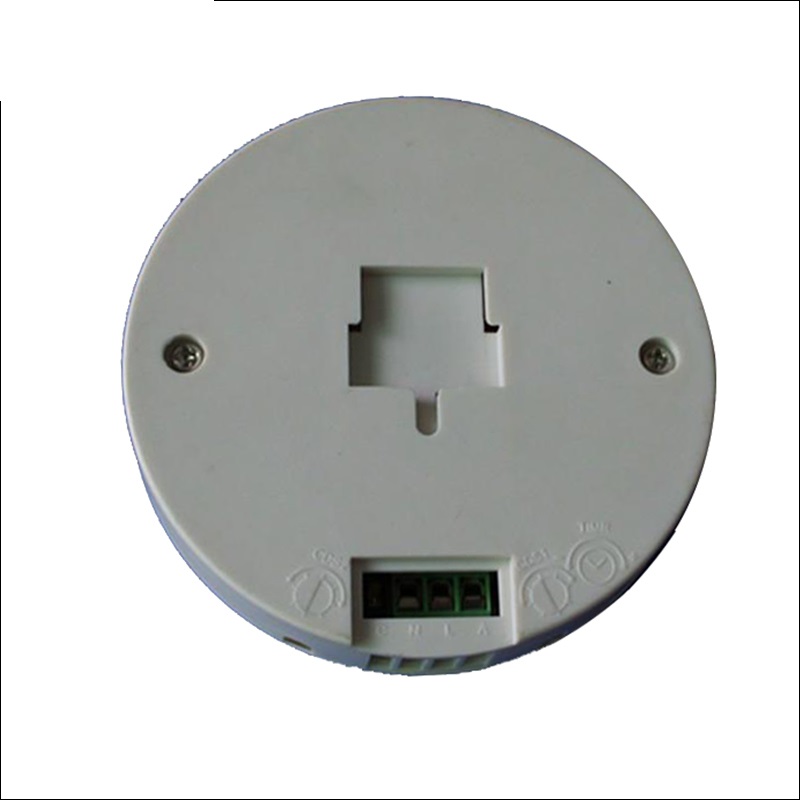

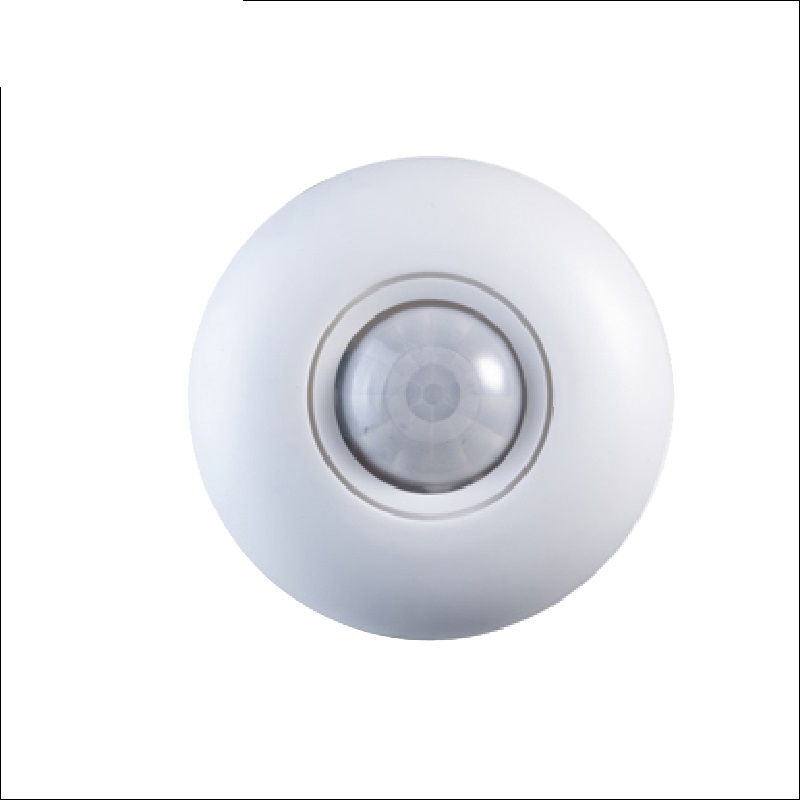

Product show:
Product advantage
Operation principle
Applicable range:
Applicable: corridor, storage, toilet, balcony, garage, lamp automatic turn off places.
Energy conservation, long life, security.
In low light places, and anybody move, swith turn on and automatic turn off, ajustable Lux, and delay time.
