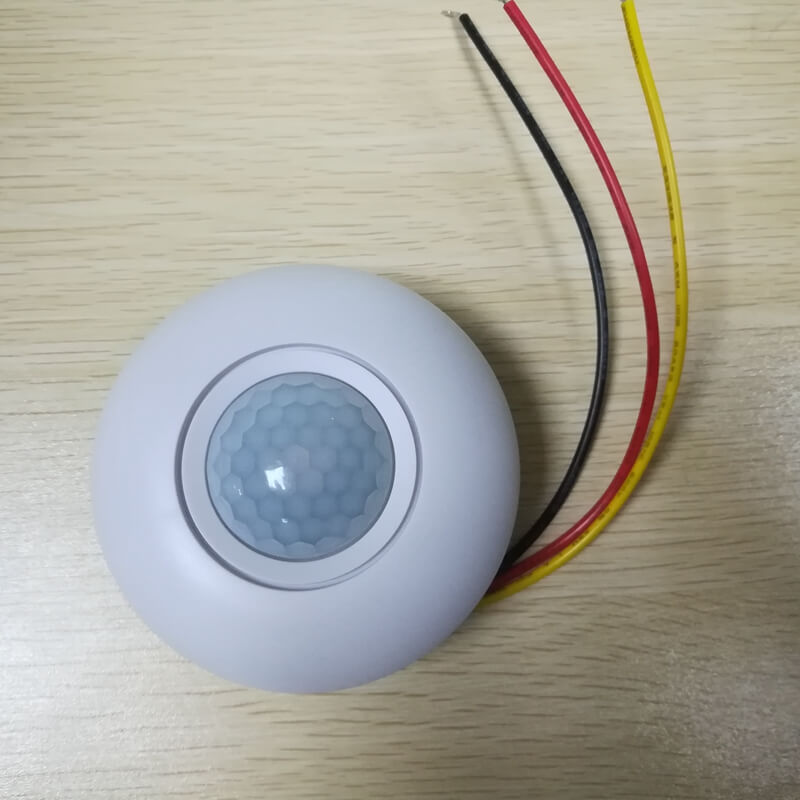

220V 360 indoor ceiling mount pir infrared motion sensor switch
Technical specification:
| Rated voltage | AC110-220V (50/60Hz)/DC24V |
| Operating Temperature | -20 °C ~ +50 °C |
| Operating power | 800W |
| Installation Method | Ceiling mounted |
| Detecting angle | 360 degree |
| Contacting way | input 220VAC, output 220VAC |
| Lux range | 5 Lux ~ 500Lux ± 20% ajustable |
| Delay range | 16~1000 Secs ± 30% |
| Detector destance | 8 M |
Product show:
Product advantage
Operation principle
Applicable range:
Applicable: corridor, storage, toilet, balcony, garage, lamp automatic turn off places.
Energy conservation, long life, security.
In low light places, and anybody move, swith turn on and automatic turn off, ajustable Lux, and delay time.
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,BT Module etc. Enter more
1:Can I get one sample for test before big order ?
Sure, you can.Please leave a message we will contact you soon.
2. Can I customized LOGO?
Yes you can. Packaging, products, instructions can be printed logo.
3. Can I customized functions?
Yes you can, we have professional R&D team to support best service, and give you best suggestions.
4. How about the quality of your products?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our products quality.
5. How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
6. When can you ship out my order after my payment?
Normally samples order: about 5-7 days; mass order 2-3 weeks.
7. Can I visit your factory and company office?
Sure, welcome ,any time!
