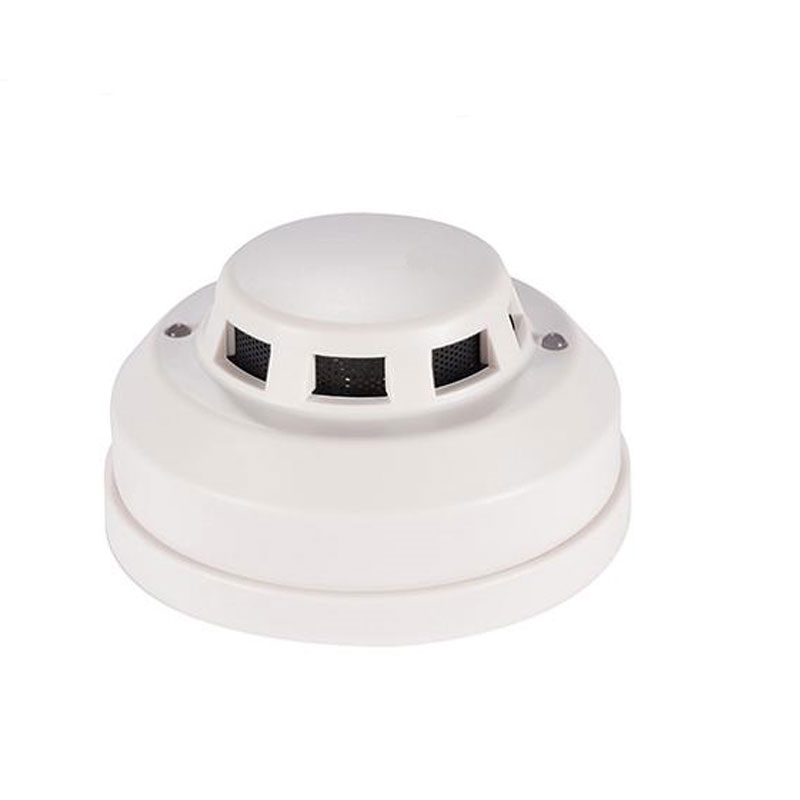

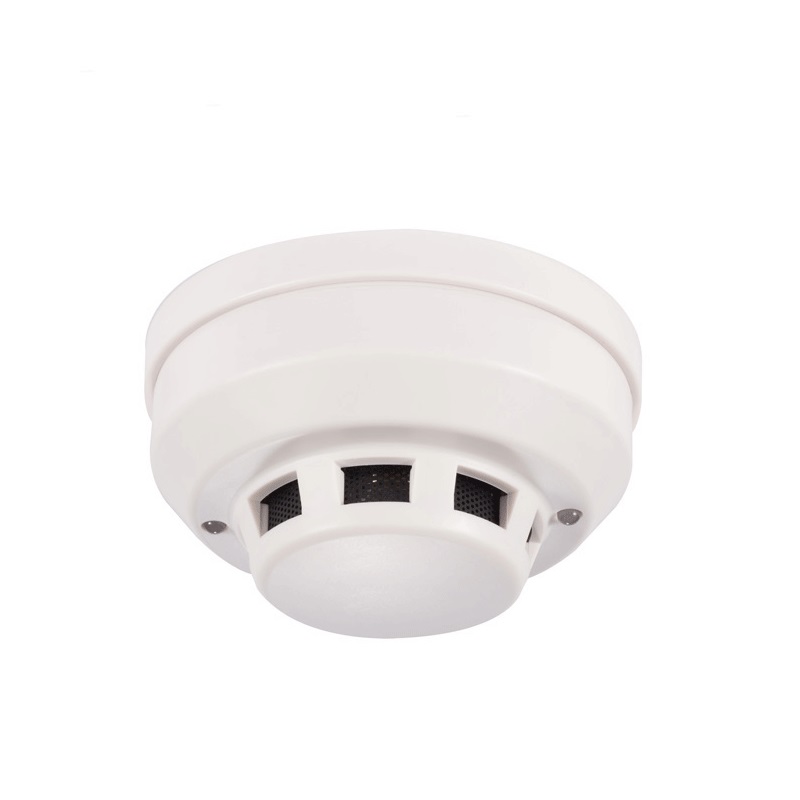

Cheap fire fighting alarm with smoke detector with relay output

Click on the image to view the original image

Product：	views：2Cheap fire fighting alarm with smoke detector with relay output
Branch：	SUMRING
Size：	12.4X12.4X6.9 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:28

Product Details

Overview

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: SUMRING

Model Number:: SR-802PC-2

Colors:: white

Product name:: Cheap fire fighting alarm with smoke detector with relay output

Operating voltage:: DC12-24V

Static current:: 55uA

Alarm current:: 35mA@DC12V;60mA@DC24V

Sensitivity:: 0.5dB/m(±0.01dB/M)

Alarm output:: Remote LED indicator

Installation:: Ceiling mounted

Dimension:: 104*49mm

Packaging & Delivery

Selling Units:: Single item

Single package size:: 12.4X12.4X6.9 cm

Single gross weight:: 0.25 kg

Package Type:: white box or neutral color box

Lead Time:

Quantity(Piece)	1 - 500	>500
Est. Time(days)	10	To be negotiated

Product Description

This fire fighting alarm is optical 2wire smoke detector with photoelectric signal processing technique, stable operation, easy installation and flexible output mode for adapting various alarm control panel. This product is widely used in houses, hotels, schools and storage etc.

Main Features:

SR-802PC-2: 2-Wire Network Photoelectric smoke detector

1.Power supply non-polar input

2.Infrared photoelectric sensor

3.MCU processing, eliminate false alarm

4.SMT manufacture technology, high stability

5.Dustproof, mothproof, anti-light interference design

6.Stainless steel shield, anti-RFI(20V/m-1GHz)

7.Execute criterion:UL268, GB4715, EN54-7

Technological details

Model No.	SR-802PC-2
Operating voltage	DC9~35V
Static current	55uA
Alarm current	35mA@DC12V;60mA@DC24V
Sensitivity	0.5dB/m(±0.01dB/M)
Alarm output	Remote LED indicator
Installation	Ceiling mounted
Working environment	-10℃~+50℃(≤95%RH No congelation)
Dimension	104*49mm
