- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-802PC-4
- Name:
- Sumring Network smoke alarm 3 wire smoke detector 12v 4 wire dc
- Operating voltage:
- DC9~35V
- Static current:
- 12mA(NC);500uA(NO)
- Alarm current:
- 10mA(NC);18mA(NO)
- Sensitivity:
- 0.5dB/m(±0.01dB/M)
- Alarm output:
- Relay output
- Installation:
- Ceiling mounted
- Working environment:
- -10℃~+50℃(≤95%RH No congelation)
- Dimension:
- 104*49mm
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 10.6X10.6X5.2 cm
- Single gross weight:
- 0.25 kg
- Package Type:
- white box or neutral color box for Best pricesSumring Network smoke alarm 3 wire smoke detector 12v 4 wire dc
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 10 To be negotiated
Best prices Sumring Network smoke alarm 3 wire smoke detector 12v 4 wire dc

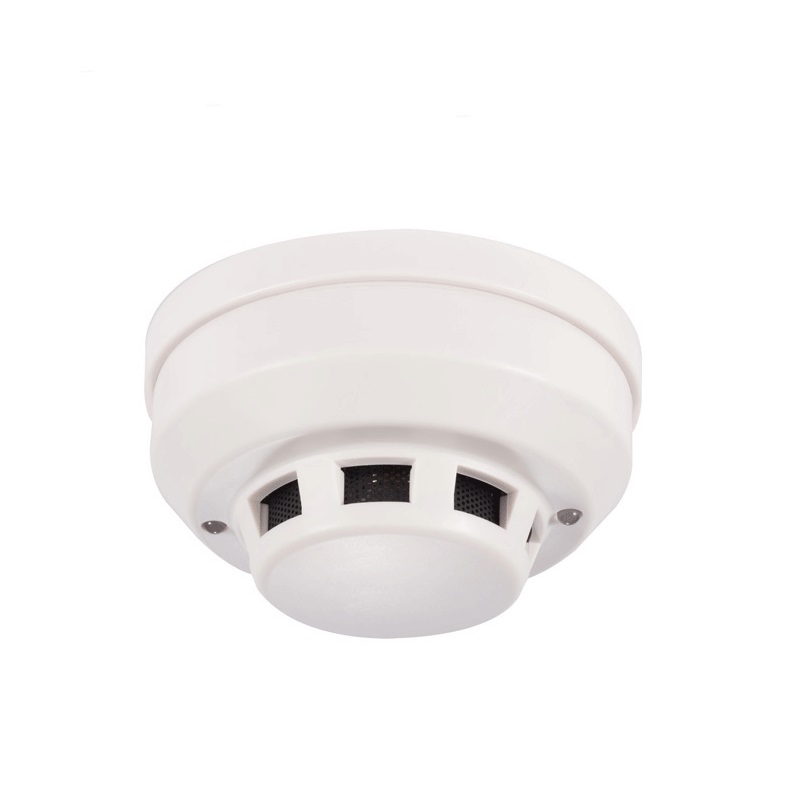

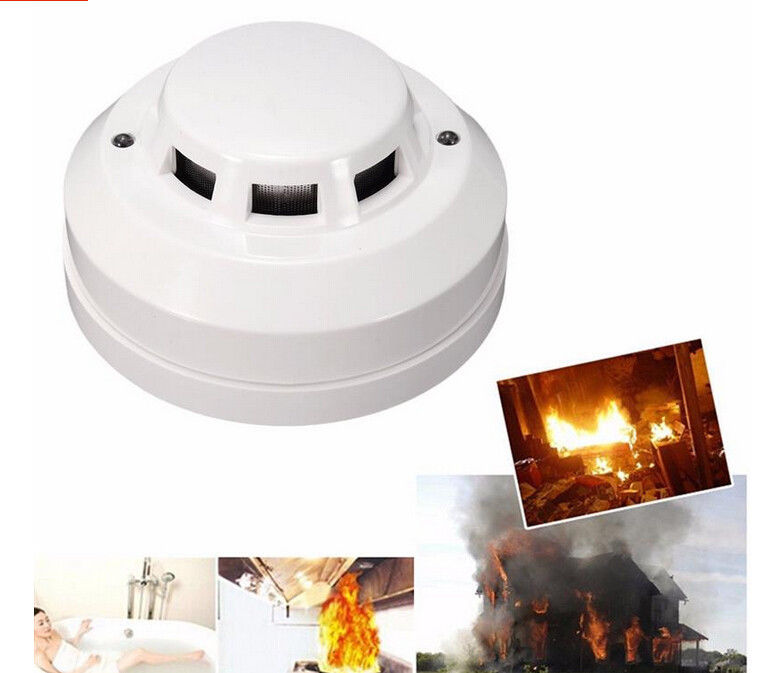

1.SR-802PC-4 is 4-Wire Network Photoelectric smoke detector
2.Power supply non-polar input
3.Infrared photoelectric sensor
4.MCU processing, eliminate false alarm
5.SMT manufacture technology, high stability
6.Dustproof, mothproof, anti-light interference design
7.Stainless steel shield, anti-RFI(20V/m-1GHz)
8.Execute criterion:UL268, GB4715, EN54-7
Technical specification:
Operating voltage | DC9~35V |
Static current | 12mA(NC);500uA(NO) |
Alarm current | 10mA(NC);18mA(NO) |
Sensitivity | 0.5dB/m(±0.01dB/M) |
Alarm output | Relay output |
Installation | Ceiling mounted |
Working environment | -10℃~+50℃(≤95%RH No congelation) |
Dimension | 104*49mm |
