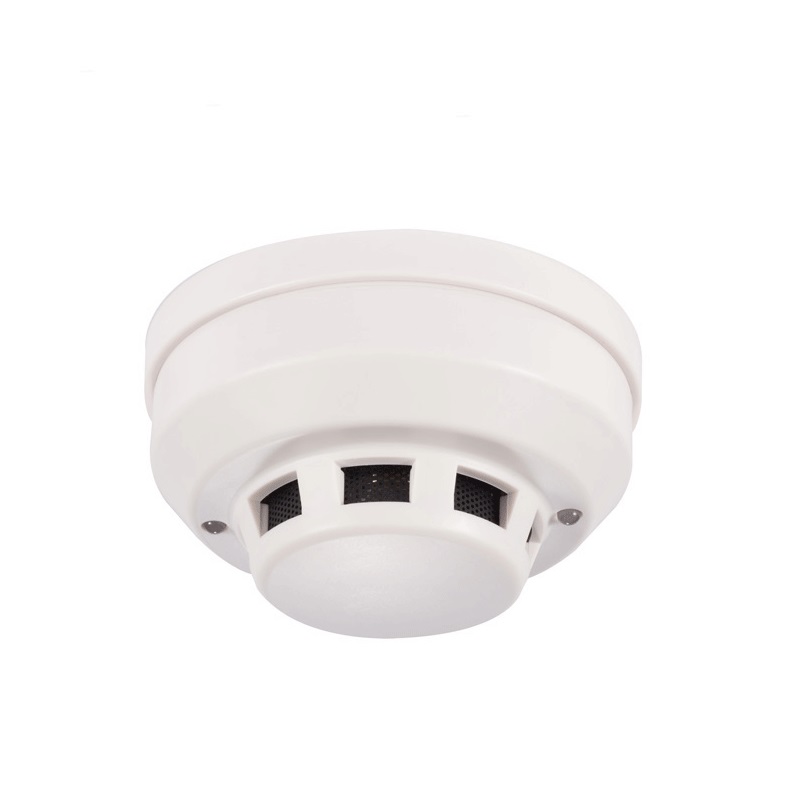

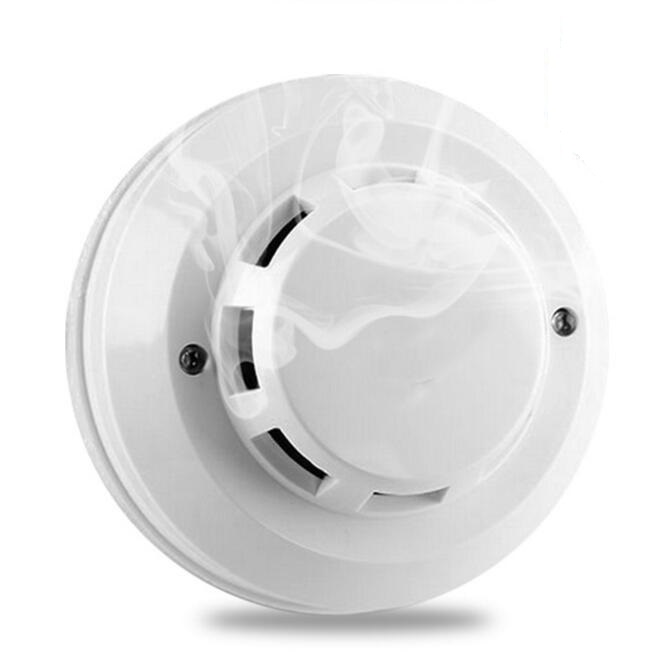

Conventional Interconnected Fire Alarm Detector with Infrared Photoelectric Sensor
This is optical 2wire smoke detector wired with photoelectric signal processing technique, stable operation,
easy installation and flexible output mode for adapting various alarm control panel. This product is widely
used in houses, hotels, schools and storage etc.
Main feature
SR-802PC-2: 2-Wire Network Photoelectric smoke detector
1.Power supply non-polar input
2.Infrared photoelectric sensor
3.MCU processing, eliminate false alarm
4.SMT manufacture technology, high stability
5.Dustproof, mothproof, anti-light interference design
6.Stainless steel shield, anti-RFI(20V/m-1GHz)
7.Execute criterion:UL268, GB4715, EN54-7
Technical Specification
Model No. | SR-802PC-2 |
Operating voltage | DC9~35V |
Static current | 55uA |
Alarm current | 35mA@DC12V;60mA@DC24V |
Sensitivity | 0.5dB/m(±0.01dB/M) |
Alarm output | Remote LED indicator |
Installation | Ceiling mounted |
Working environment | -10℃~+50℃(≤95%RH No congelation) |
Dimension | 104*49mm |
Detailed pictuers
