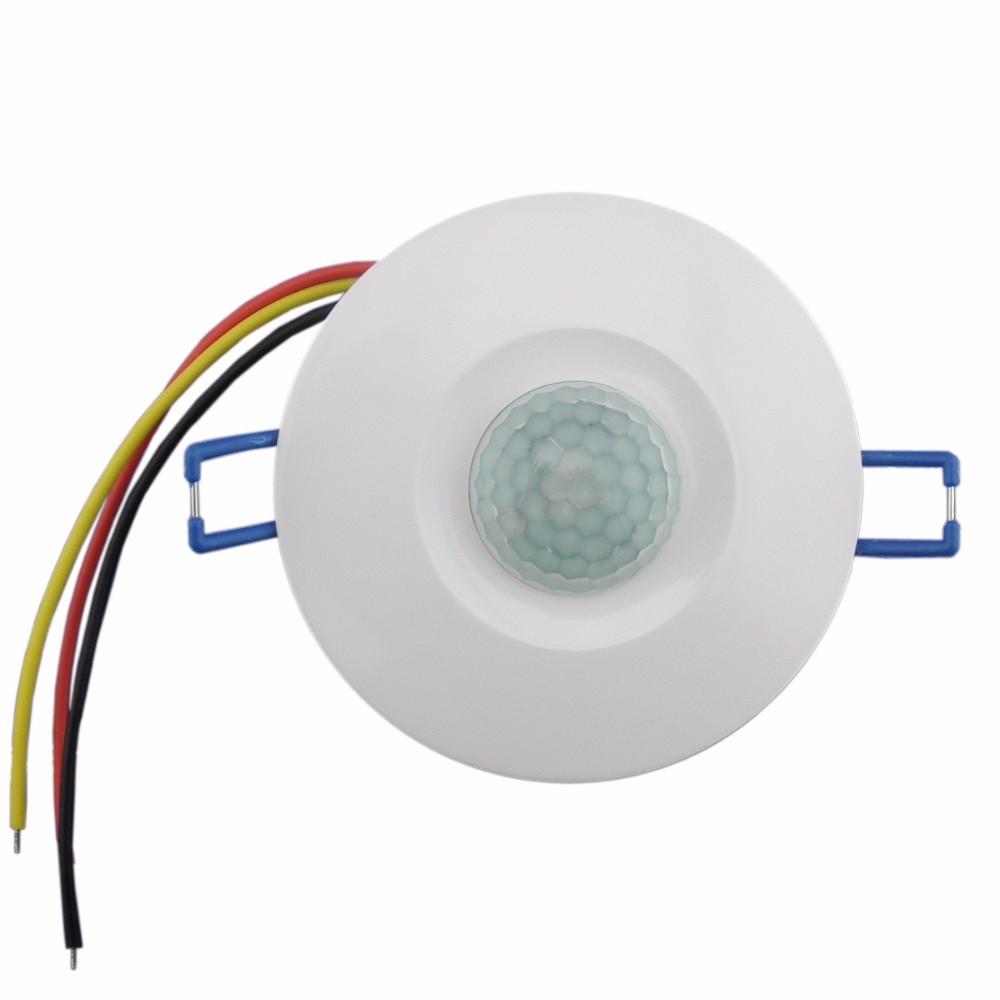

PIR Sensor Automatic Light Switch/Motion Sensor Light Switch/Automatic Lighting Control Switch
PIR Sensor Automatic Light Switch/Motion Sensor Light Switch/Automatic Lighting Control Switch
Features:
(SR-612C-DC)It is built-in switch with PIR sensor provides 360° coverage to detect the human motion in controlled area. The sensor can turn the light on and off automatically within range(5 to 7 meters). They offer convenient, cost-effective and energy savings for users, energy saving up to 35 %( compared to manual switch).
Technical specification:
1. Operating voltage: DC12V
2. Ambient temperature: -20 ‘C – +50’ C
3. Own power: <0.016W
4. Load type: Incandescent lamp, ventilating fan, various types of lamps, be available to all
electric apparatus.
5. Load power: 0W-100W.
6. Output forms: positive output (be close usually, open after induction); reverse output
(be open usually, close after induction), with beep alarm (about 70 decibels
7. Optical control range (adjustable): 5Lux-500Lux ± 20% (default setting is 5 Lux ±
20%)
8. Time delay closing time (adjustable): 16-350 seconds ±30% (default setting is 16
seconds ±30%)
Applicable range:
For automatic lighting in places like corridors, bathrooms, basements, garages, etc.
For automatic exhausting of the exhaust fan.
For automatic on/off control of electrical equipment and anti-theft function.
