- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING/OEM
- Model Number:
- SR-616RIP
- Product name:
- Long Range low power elert Wireless Infrared PIR Motion detector
- Color:
- White
- Operating voltage:
- DC 3V (2*AA battery)
- Detecting distance:
- 9~18m
- Pet immunity:
- 12kg
- Detecting angle:
- 110°
- Codeform:
- 2262 or 1527
- Radio frequency:
- 315MHzor 433MHz
- Radio distance:
- 200m (open area)
- Installation mode:
- wall mounted or hanged in corner
- Supply Ability:
- 20000 Piece/Pieces per Month
- Packaging Details
- carton or neutral color box
- Port
- shenzhen

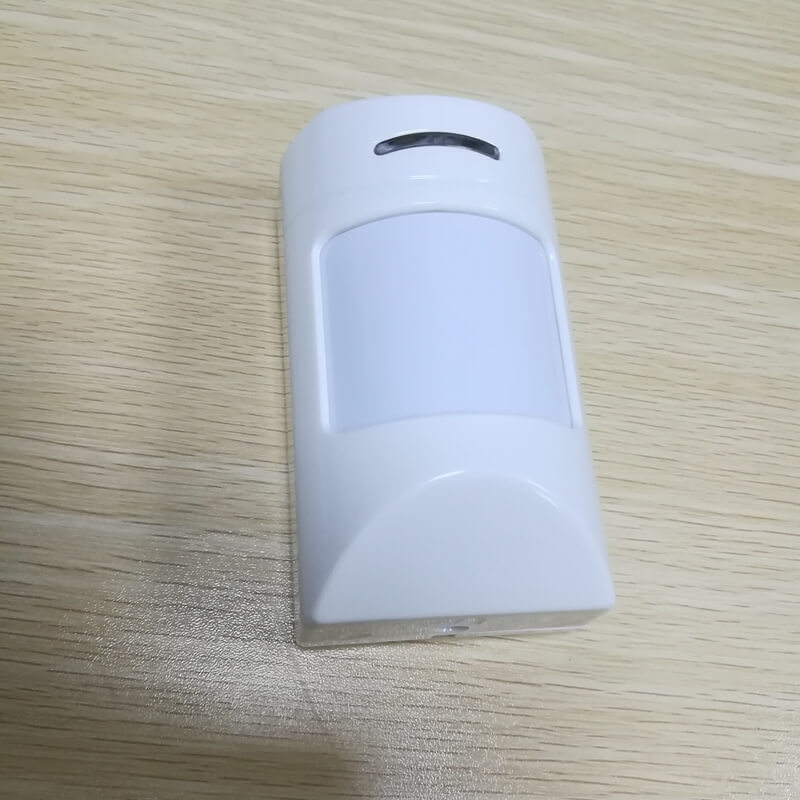

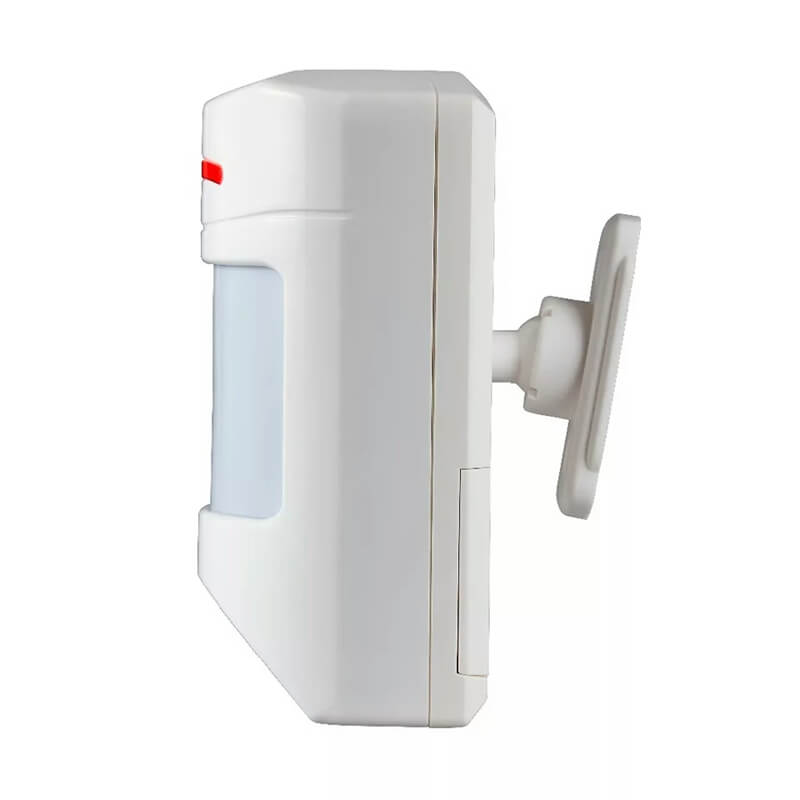

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 500 >500 Est. Time(days) 12 To be negotiated
Security Alarm 433Mhz Long Range low power elert easy to instal Wireless Infrared PIR Motion detector
The product is wireless intelligent pet-immunity detector with high stability. It has adopted advanced technology in signal processing, provided super high detection ability, function of automatically identify valve control and pulse count. The detector will detect movement of human auotomatically when intruder pass through the detector area, and it will send out alarm signal to alarm host if there is movement. The product suitable for the safety of residential house, villas, factories, markets, warehouses, office building etc.
TECHNICAL SPECIFICATION
| Operating voltage | DC 3V (2*AA battery) |
| Static current | ≤15uA |
| Alarm current | ≤10mA |
| Detecting distance | 9~18m |
| Pet immunity | 12kg |
| Detecting angle | 110° |
| Code form | 2262 or 1527 |
| Radio frequency | 315MHz or 433MHz |
| Radio distance | 200m (open area) |
| Low battery indicator | yellow LED |
| Alarm indicator | red LED |
| Range of coverage | 11 distance, 8 middle, 5 vicinities |
| Sensor | dual element infrared sensor |
| Operating temperature | -10℃ ~ +50℃ |
| Environment humidity | ≤ 95% RH (no congelation) |
| Anti RF interference | 10MHz 1GHz 20V/m |
| Installation mode | wall mounted or hanged in corner |
| Installation height | 1.7 to 2.5m (2.2m is Proposed) |
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,BT Module etc. Enter more
1:Can I get one sample for test before big order ?
Sure, you can.Please leave a message we will contact you soon.
2. Can I customized LOGO?
Yes you can. Packaging, products, instructions can be printed logo.
3. Can I customized functions?
Yes you can, we have professional R&D team to support best service, and give you best suggestions.
4. How about the quality of your products?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our products quality.
5. How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
6. When can you ship out my order after my payment?
Normally samples order: about 5-7 days; mass order 2-3 weeks.
7. Can I visit your factory and company office?
Sure, welcome ,any time!
