Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-P01-8
- Type:
- conventional
- fire alarm control panel:
- 4 zone, 8 zones or 16 zones optional
- Function:
- Fire detection
- AC POWER:
- 220VAC, 50 Hz.
- battery:
- Sealed lead-acid batteries only
- Maximum charging circuit:
- 27.6VDC @ 0.8 amp for normal flat charge
- Maximum battery charger capacity:
- 18AH battery
- Total DC24V system power:
- 3.0 amps.
- Maximum current per NAC:
- 1.25 amps.
- Maximum battery charging capability:
- 18 AH.
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 48X45X18.5 cm
- Single gross weight:
- 10.0 kg
- Package Type:
- carton
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 100 >100 Est. Time(days) 7 To be negotiated
First fire alarm equipment stand and fire fighting systems control conventional panel for fire alarm
Fire alarm control panel:
SR-P01-4 4 zones conventional fire alarm control panel
SR-P01-8 8 zones conventional fire alarm control panel
SR-P01-16 16 zones conventional fire alarm control panel
The SR-P01 Series is Conventional Fire Alarm Control Panel, four to sixteen-zone, Class B, Conventional Fire Alarm Control Panel. Designed exclusively to meet the latest market requirements and future ULC codes, the highly cost-effective SR-P01 Series can be used in a variety of low- to mid-sized applications.
Main features:
Four, Eight, Sixteen Zone Style B (Class B) Initiating Device Circuits (IDCs), All zones accept
two-wire smoke detectors and any normally-open contact devices.
Two Supervisory Input with DC12V output, ideal to connect security alarm devices.
Three General Alarm, Trouble and Supervisory, Form A Relay Output.
One, Two, Four Built-in Sound Output, Style Y (Class B) Notification Appliance (Signal) Circuits
(NACs), NACs may be programmed: Silenceable or Non-Silenceable.
3.0 amps of total system power. Resettable DC24V & Non-resettable DC24V Output.
Zone Input Short Circuit can be set to “Alarm” or “ Fault” mode.
RS485 Communication Port (optional).
Automatic/Manual mode can be programmed.
Disable/Enable control per Zone (IDC) can be programmed.
Disable/Enable Sound Output(NACs) can be programmed.
Technical Parameters
AC POWER: 220VAC, 50 Hz.
BATTERY: Sealed lead-acid batteries only. Maximum charging circuit: 27.6VDC @ 0.8 amp for
normal flat charge. Maximum battery charger capacity: 18AH battery.
NOTE: Two 10AH batteries can be housed in the cabinet. Larger batteries require a separate
battery box.
Total DC24V system power: 3.0 amps.
Maximum current per NAC: 1.25 amps.
Maximum battery charging capability: 18 AH.
Resettable four-wire smoke detector power output.
Non-resettable power output.
Integral Form-A Alarm, Trouble and Supervisory relays, rated at: 2.0 amps @ 30 VDC
(resistive), 2.0 amps @ 30 VAC (resistive)

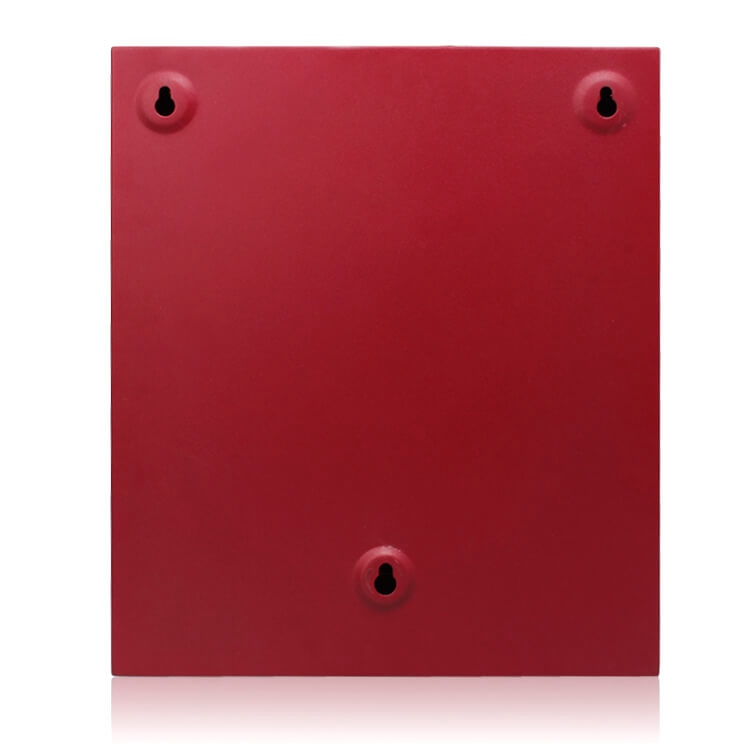

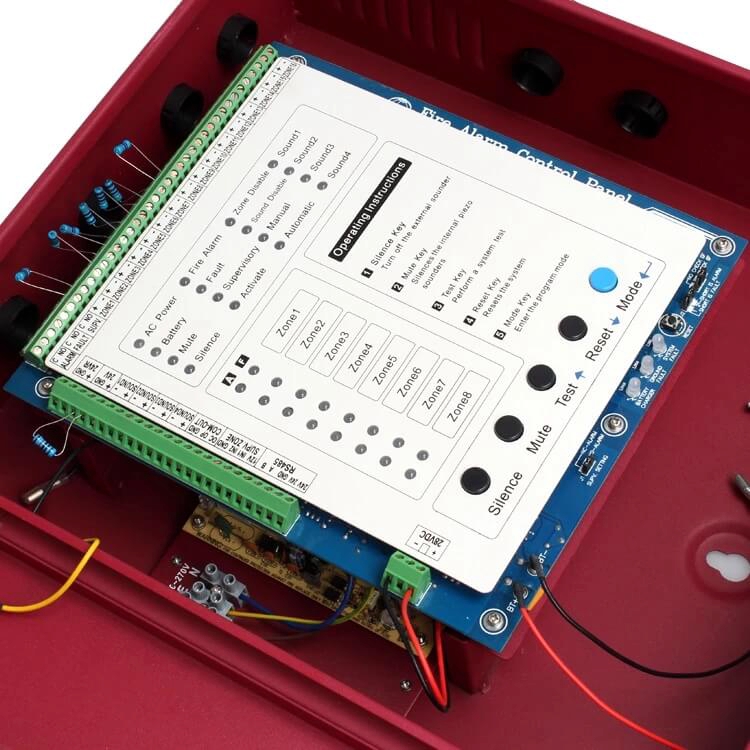

Product pictures:
This fire alarm control panel can Match any 2 wire smoke heat detector,strobe siren,fire bell,manual call point ect
| smoke detector | 2 wire, photoelectric type |
| heat detector | 2 wire, rate of rise or fixed temeparture |
| strobe siren | wired type, with or without strobe |
| fire bell | wired type, indoor or outdoor type |
| manual call point | resettable type or breaking glass type optional |
Not only the alarm control panel we have, but also we offer all kinds of detectors you want, we are looking forward to your inquiry, thank you!
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,BT Module etc. Enter more
1:Can I get one sample for test before big order ?
Sure, you can.Please leave a message we will contact you soon.
2. Can I customized LOGO?
Yes you can. Packaging, products, instructions can be printed logo.
3. Can I customized functions?
Yes you can, we have professional R&D team to support best service, and give you best suggestions.
4. How about the quality of your products?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our products quality.
5. How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
6. When can you ship out my order after my payment?
Normally samples order: about 5-7 days; mass order 2-3 weeks.
7. Can I visit your factory and company office?
Sure, welcome ,any time!
