- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-603W
- Product name:
- home motion detector motion sensor system long range with alarm
- Color:
- White
- Function:
- Anti-Theft
- Operating voltage:
- DC9V~16V
- Static current:
- NC≤15mA NO≤6mA
- Alarm current:
- NC≤9mA NO≤18mA
- Alarm output:
- Relay output
- Detecting angle:
- 360°
- Detecting distance:
- 6m
- Supply Ability:
- 200000 Piece/Pieces per Month
- Packaging Details
- white box or neutral color box for PIR Detector
- Port
- Shenzhen

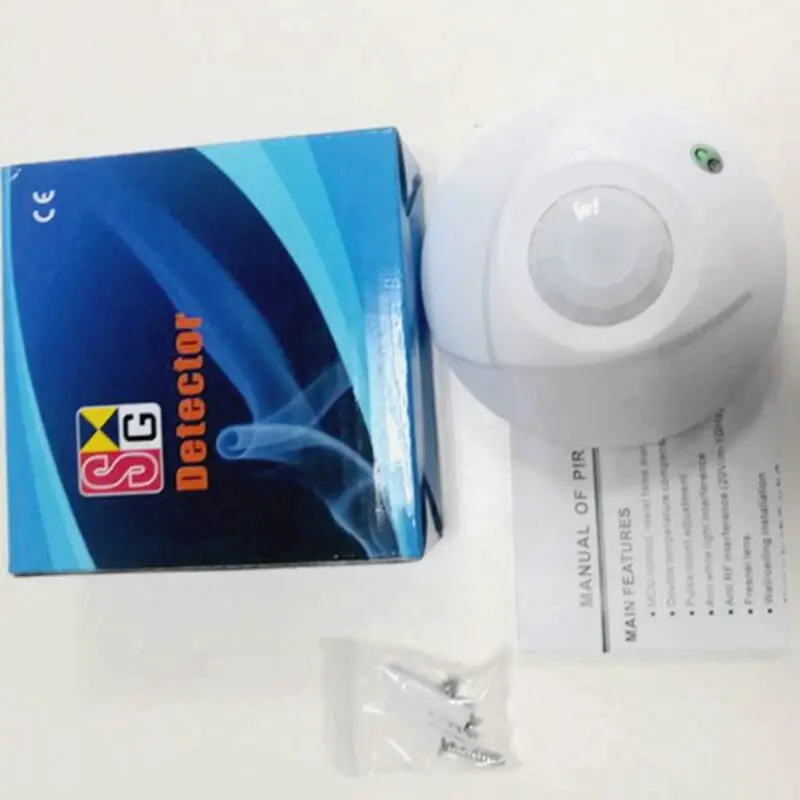

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 500 >500 Est. Time(days) 12 To be negotiated
home motion detector motion sensor system long range with alarm
Main features:
MCU control, resist false alarm efficiently
Double temperature compensation
Pulse count adjustment
Anti white light interference
Anti RF interference (20V/m-1GHz)
Fresnel lens
Wall/ceiling installation
Alarm output N.C. or N.O.
Alarm time optional (3s or 30s)
Intelligent floating thresholds technology
Patent appearance design
SMT manufacture technology with high stability
Technical specification:
Model NO. | SR-603W |
Operating voltage | DC9V~16V |
Static current | NC≤15mA NO≤6mA |
Alarm current | NC≤9mA NO≤18mA |
Alarm output | Relay output |
Detecting angle | 360° |
Detecting distance | 6m |
Operating temperature | -10℃~+50℃ |
Dimension | 100mm(Dia)*32mm(H) |
