alarm output N.C./ N.O sensor motion pir techo detector de movimiento
sensor motion pir techo detector de movimiento
Main features:
SR-610W Wide Angle PIR Detector (Infrared sensor)
fireproof ABS housing
LED ON/OFF optional
automatic temperature compensation
SMT adopted, anti-RFI & anti-EMI
pulse count optional
alarm output N.C./ N.O. optional
Technical specification:
| operating voltage | DC 9-16V |
| consumption current | ≤18mA(DC12V) |
| operating temp | -10ºC~+50ºC |
| installation mode | wall or corner mounted |
| installation height | about 2.2m |
| detecting distance | 12m |
| detecting angle | 110 degrees |
| alarm output | N.O./ N.C. optional |
| anti-dismantle switch | N.C. |

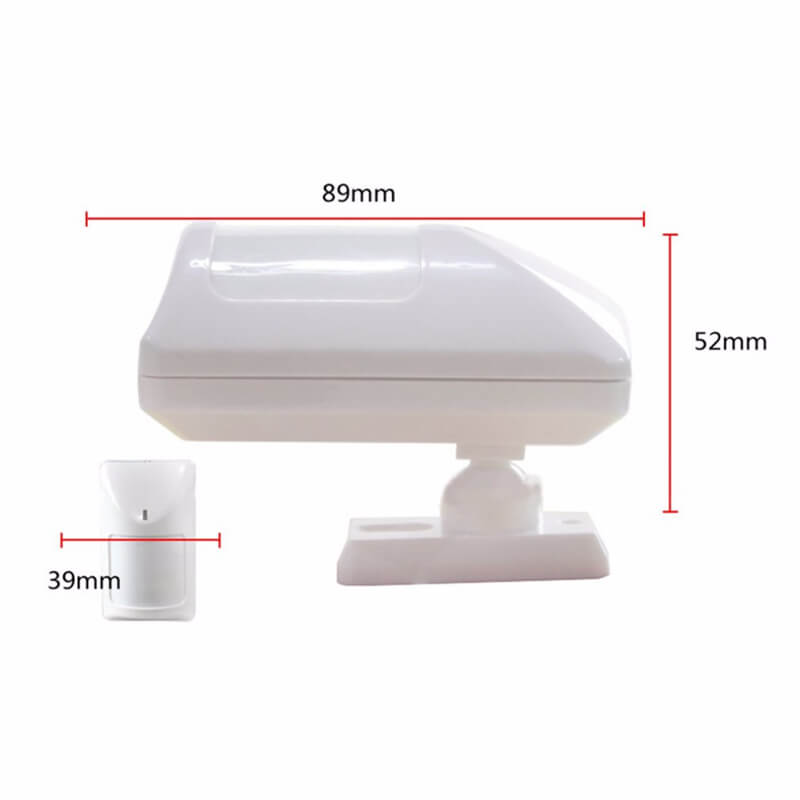

| dimension | 89*52.5*38.5mm |

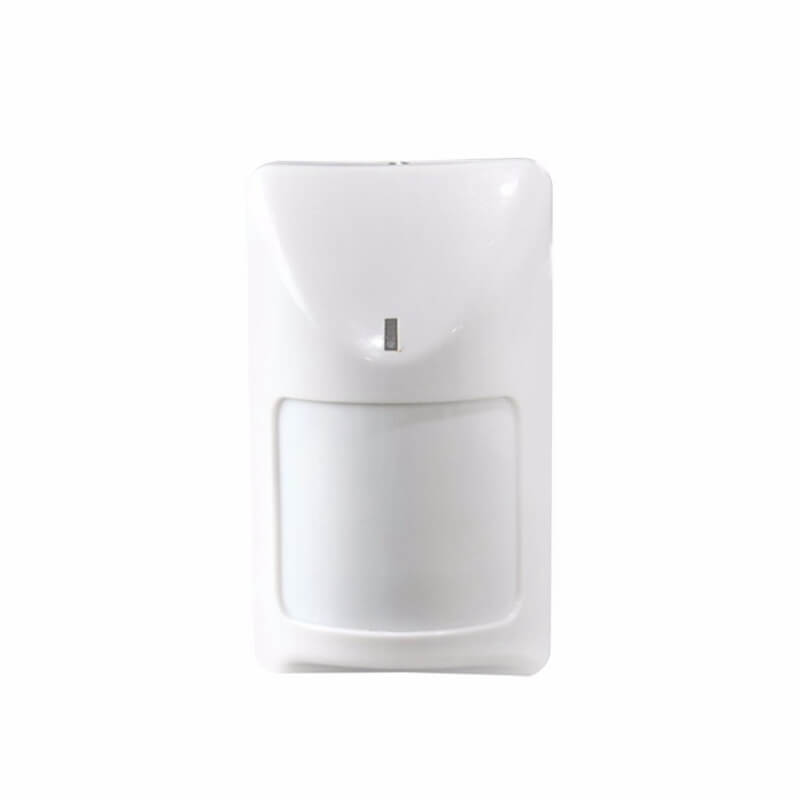

Product Pictures:
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,BT Module etc. Enter more
1:Can I get one sample for test before big order ?
Sure, you can.Please leave a message we will contact you soon.
2. Can I customized LOGO?
Yes you can. Packaging, products, instructions can be printed logo.
3. Can I customized functions?
Yes you can, we have professional R&D team to support best service, and give you best suggestions.
4. How about the quality of your products?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our products quality.
5. How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
6. When can you ship out my order after my payment?
Normally samples order: about 5-7 days; mass order 2-3 weeks.
7. Can I visit your factory and company office?
Sure, welcome ,any time!
Packaging information:
Shipping information:
* Express(UPS, DHL, Fedex, EMS, etc) is available.
* Sea and Air delivery is available
* welcome your agent to deal with our products .
