- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING/OEM
- Model Number:
- SR-807
- name:
- New Products Battery Operated Stand alone Photoelectric Smoke Detector
- Usage:
- Fire detection
- Voltage:
- 9V battery
- Standby current:
- <10uA
- Alarm current:
- <20mA
- Operating temp:
- -10 to +50 degrees
- Working humidity:
- less than 95%RH
- Alarm mode:
- sound & flash alarm
- Alarm volume:
- 85dB/3 metre
- Supply Ability:
- 20000 Piece/Pieces per Month
- Packaging Details
- carton orneutral color box
- Port
- shenzhen

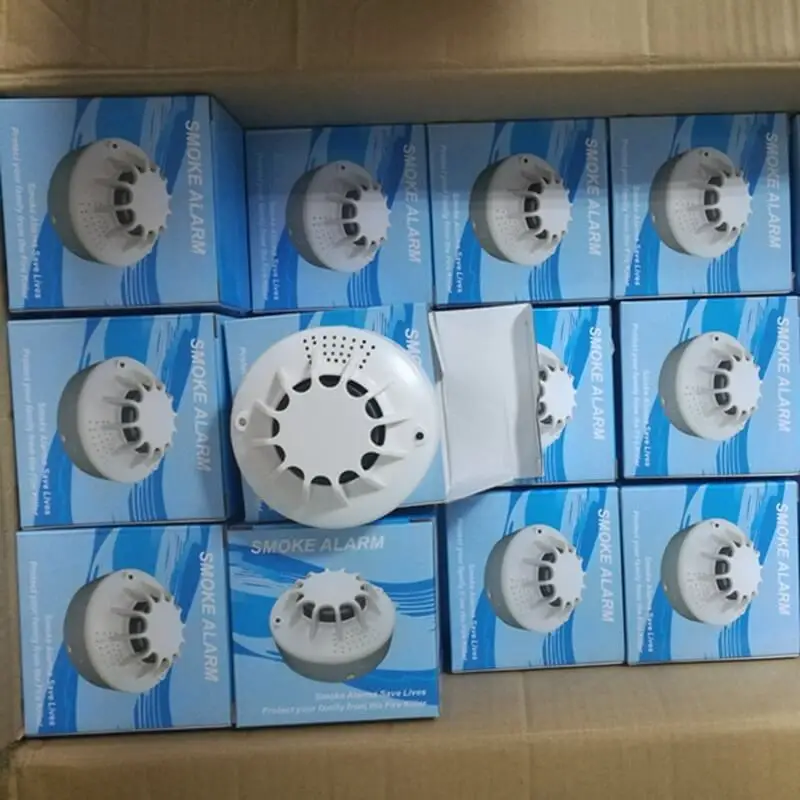

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 100 >100 Est. Time(days) 8 To be negotiated
New Products Battery Operated Stand alone Photoelectric Smoke Detector
Main Features:
1. ASIC control
2.Manual test, auto-reset
3.Low power indication
4.Infrared photoelectric sensor
5.Sound & flash alarm
6.Thin structure design
7.Strong adaptability to circumstance
8.SMT adopted
9.Dustproof, mothproof and anti-white light
Technical specification:
| Operating voltage | DC9V (power by battery) |
| Standby current | <10uA |
| Alarm current | < 20mA |
| Operating temp | -10 to +50 degrees |
| Working humidity | less than 95%RH |
| Alarm mode | sound & flash alarm |
| Alarm volume | 85dB/3m |
| Detecting area | 80 square meter at 6-12m installation height; 60 square meter at installation height <6m |
| Sensitivity | class I |
| Dimension | 131mm dia.*45mm deep |
Product show
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,BT Module etc. Enter more
1:Can I get one sample for test before big order ?
Sure, you can.Please leave a message we will contact you soon.
2. Can I customized LOGO?
Yes you can. Packaging, products, instructions can be printed logo.
3. Can I customized functions?
Yes you can, we have professional R&D team to support best service, and give you best suggestions.
4. How about the quality of your products?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our products quality.
5. How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
6. When can you ship out my order after my payment?
Normally samples order: about 5-7 days; mass order 2-3 weeks.
7. Can I visit your factory and company office?
Sure, welcome ,any time!
