- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-M36
- TYPE:
- WIRED
- COLOR:
- WHITE OR BROWN
- NAME:
- Brown Recessed Type Security Alarm Contacts Door Window Reed Switch
- Packaging Details
- plastic bag
- Port
- Shenzhen
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 500 >500 Est. Time(days) 7 To be negotiated
Brown Recessed Type Security Alarm Contacts Door Window Reed Switch
Magnetic reed switch SR-M36 can solve your troubles
Wired Magnetic reed switch Door Sensor - Recessed Mount: Detecting door gap by opening, Be used to detect door, window, or drawer if it is opened or moved. It is widely used for monitoring and security system, with high reliability, small size, easy installation and operation and strong flexibility.
Technological details:
Product Dimensions: φ19 * 25
Case Material: ABS
Sensing distance :20-30 (mm)
Installation: Concealed drilling
Connection: 22 # wire, 250MM (430mm available)
Current Voltage Power: 0.5A/100V/10W
Note: NO —- normally open (path alarm)
NO & NC — normally open normally closed (this note two, can provide)
Package:10 sets/bag,800 sets/carton
Carton size:375*295*300mm

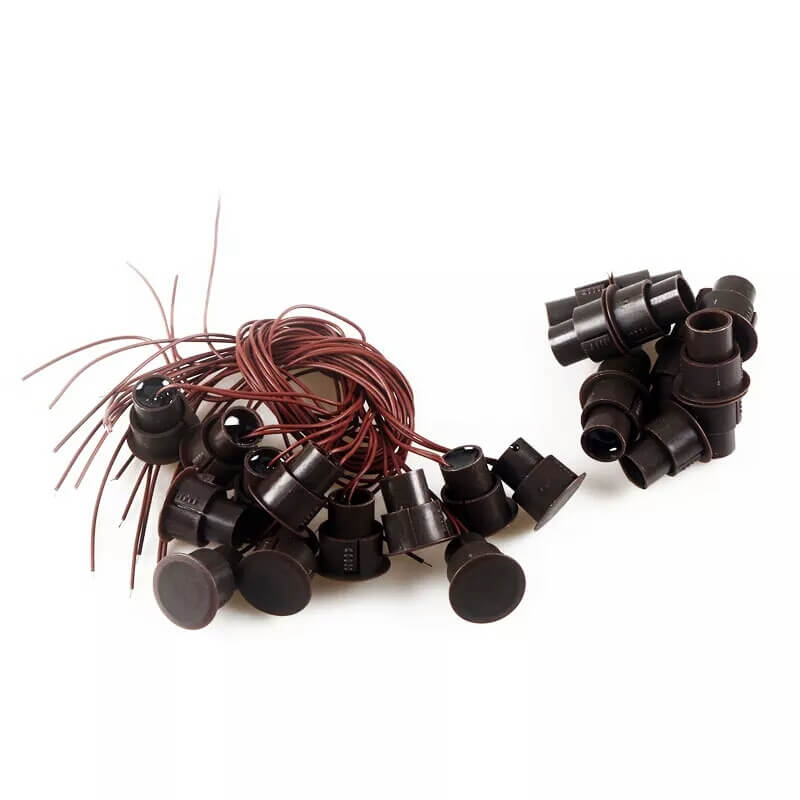

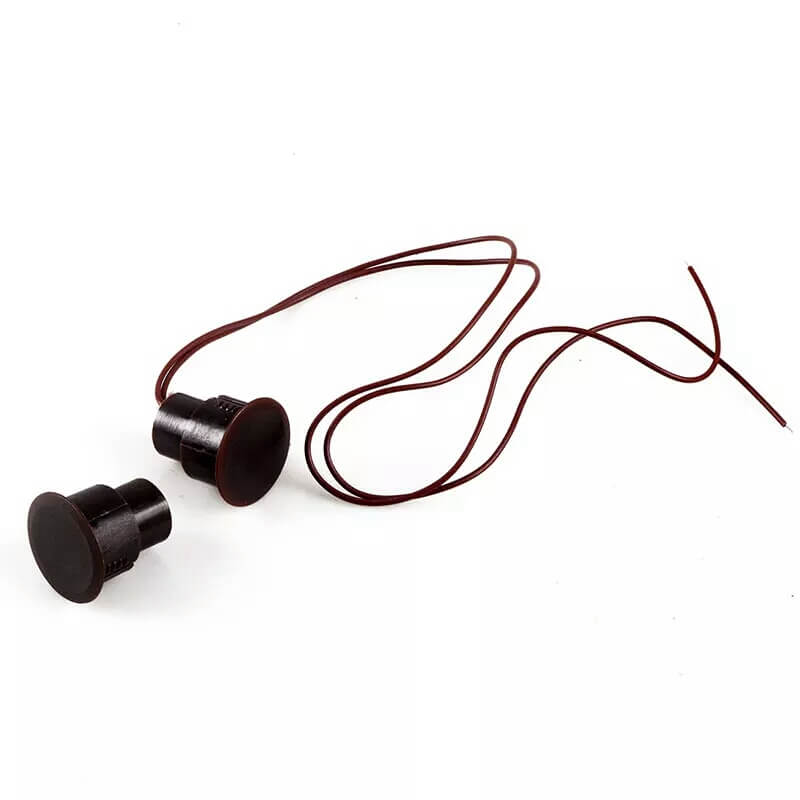

Product Pictures:
What Main Features of our Magnetic reed switch SR-M36 ?
1. Round magnetic contact for window / wooden
2. fireproof ABS housing aterial and power saving
3. Gap:20±5mm color:white/Brown;contact mode:NO/NC
Working principle: The reed switch is controlled to be broken by a magnet (magnet steel), so that various proximity switches, magnetic switches, and non-contact magnetic sensors can be conveniently formed.
Application:
