light switches 180 long distance motion detector outdoor 50m for lamp
Welcome to our shop
Product Description

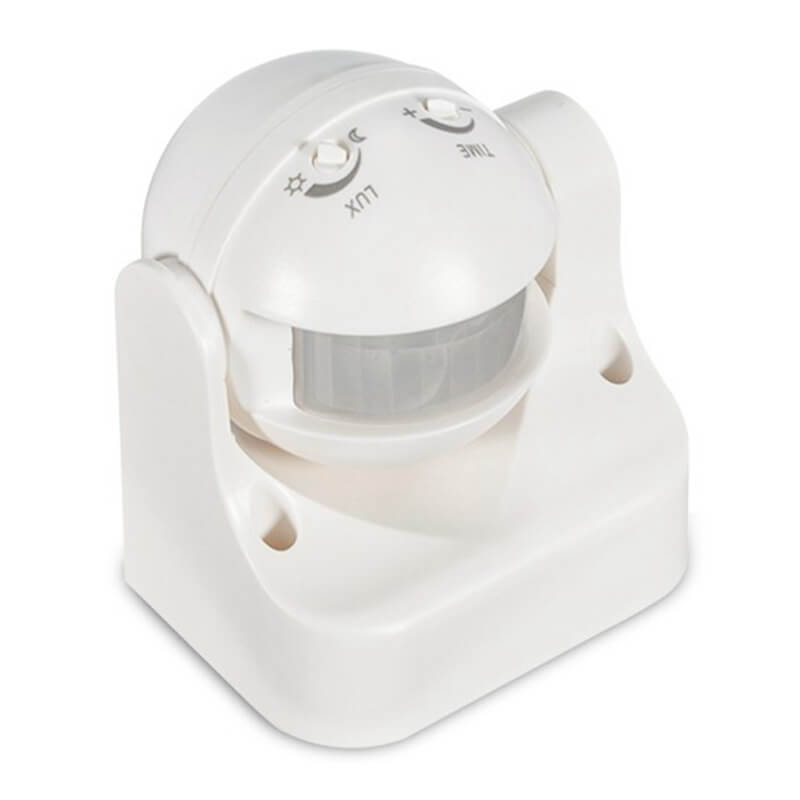

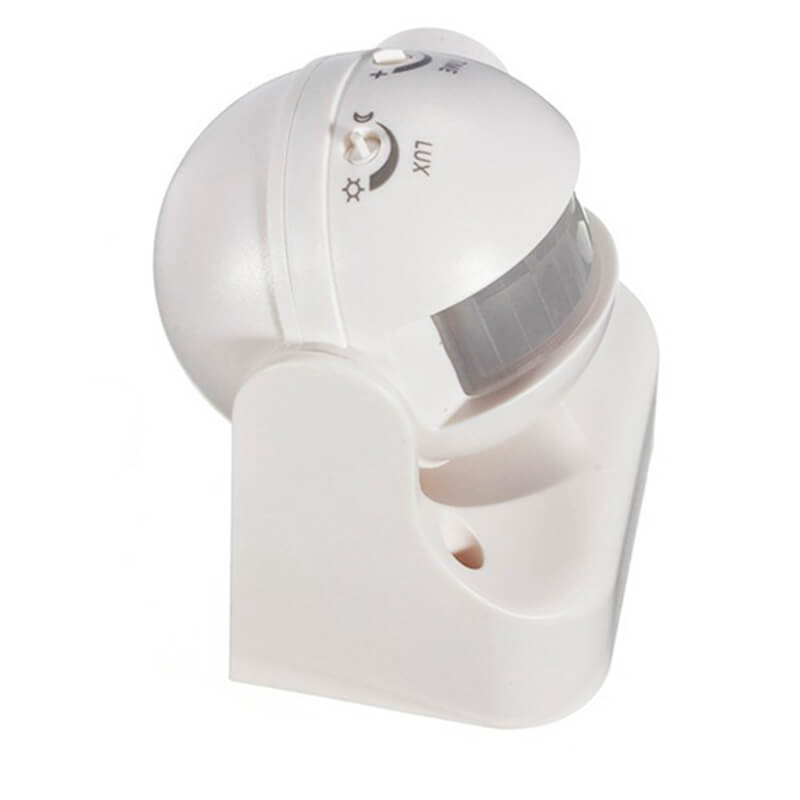

PIR Detector: motion light switch, Outdoor SR-612O
This product is the use of far-infrared sensor to detect infrared rays emitted by the human body
comparison operator, automatically control the lamp light off; turn on the lights by the the imported
chip set lighting time, intelligent control and energy saving. This product is widely used in stairways, basements, toilets and other places, is a new type of energy-saving electronic switch.
Main technical parameters:
| Power supply voltage | 220V/AC ~ 240V/AC |
| Power frequency | 50 ~ 60Hz |
| Ambient Light | <3LUX to daylight illumination (adjustable, adjustable night mode to 24-hour mode) |
| Detection range | 8m max |
| Load power | the principle of resistive electrical resistive 1200W (incandescent), emotional 300W (energy saving lamps, fluorescent lamps, ring tube, LED exhaust fan, alarms, and other appliances) (220V/AC 240V/AC) |
| Time Delay | min: sec +- 3 seconds, max: 7 minutes +- 2 min (adjustable) |
| Detection angle | 180 degree |
| Operating Temperature | -20 ~ 50 degree |
| Relative humidity | less than 93% RH |
| Installation height | 1.5m to 3.5m |
| Power consumption | 0.45W (static 0.1W) |
| Detection Motion Speed | 0.6 to 1.5m / s |
| IP grade | IP44 |
Motion light switch
