Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING/OEM
- Model Number:
- SR-616RIP
- Product name:
- infrared sensor long distance 433 motion sensor alarm
- Color:
- White
- Operating voltage:
- DC 3V (2*AA battery)
- Detecting distance:
- 9~18m
- Pet immunity:
- 12kg
- Detecting angle:
- 110°
- Codeform:
- 2262 or 1527
- Radio frequency:
- 315MHzor 433MHz
- Radio distance:
- 200m (open area)
- Installation mode:
- wall mounted or hanged in corner
- Supply Ability:
- 20000 Piece/Pieces per Month
- Packaging Details
- carton or neutral color box
- Port
- shenzhen
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Pieces) 1 - 500 >500 Est. Time(days) 12 To be negotiated

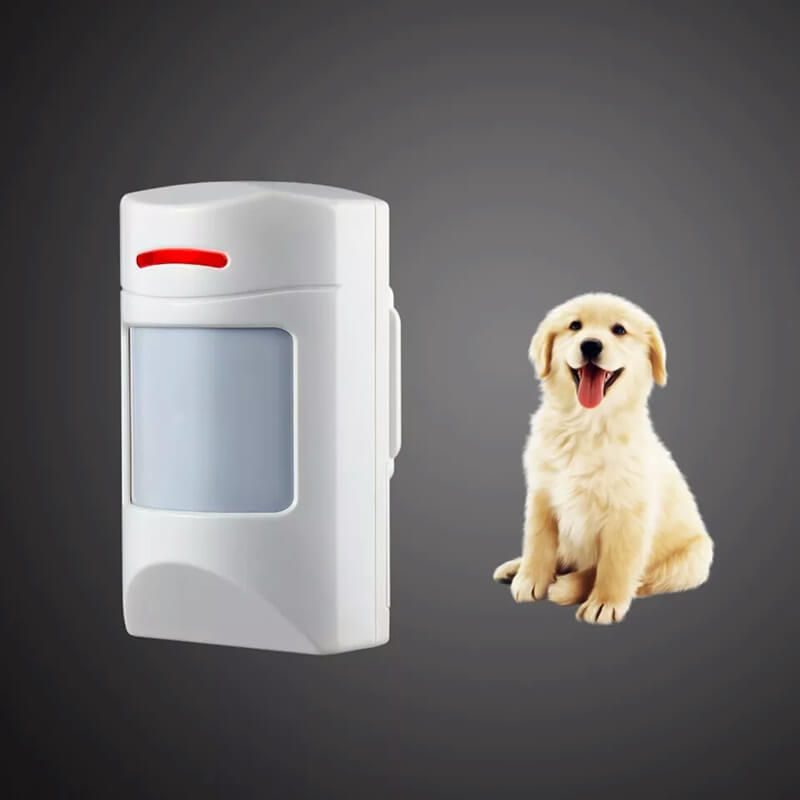

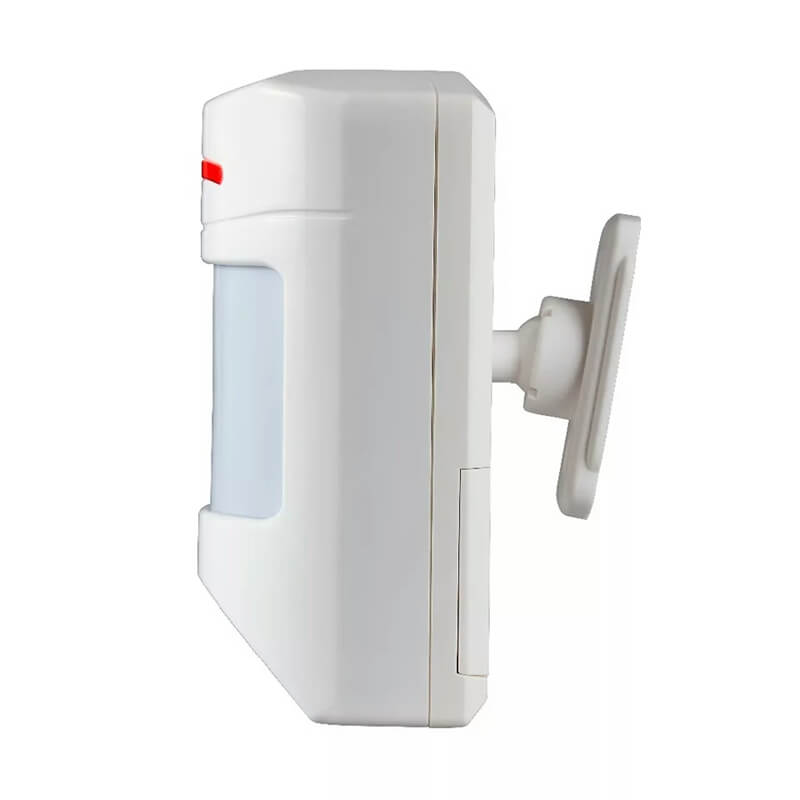

anti-theft anti pet infrared sensor long distance 433 motion sensor alarm
The product is wireless intelligent pet-immunity detector with high stability. It has adopted advanced technology in signal processing, provided super high detection ability, function of automatically identify valve control and pulse count. The detector will detect movement of human auotomatically when intruder pass through the detector area, and it will send out alarm signal to alarm host if there is movement. The product suitable for the safety of residential house, villas, factories, markets, warehouses, office building etc.
TECHNICAL SPECIFICATION
| Operating voltage | DC 3V (2*AA battery) |
| Static current | ≤15uA |
| Alarm current | ≤10mA |
| Detecting distance | 9~18m |
| Pet immunity | 12kg |
| Detecting angle | 110° |
| Code form | 2262 or 1527 |
| Radio frequency | 315MHz or 433MHz |
| Radio distance | 200m (open area) |
| Low battery indicator | yellow LED |
| Alarm indicator | red LED |
| Range of coverage | 11 distance, 8 middle, 5 vicinities |
| Sensor | dual element infrared sensor |
| Operating temperature | -10℃ ~ +50℃ |
| Environment humidity | ≤ 95% RH (no congelation) |
| Anti RF interference | 10MHz 1GHz 20V/m |
| Installation mode | wall mounted or hanged in corner |
| Installation height | 1.7 to 2.5m (2.2m is Proposed) |
