convenienal fire smoke alarm sensor de humo fotoelectrico detector de humo
Main Features:
Strong Adaptability For Circumsiance
SMT Design, High Stability
10-35VDC Wide Voltage Operating Range
Low Standby Current
Stain Steeless Shield,Antt-(20V/m-1GHz)
Technical specification:
Operating Voltage:DC 10V~35V
Standby Current : ≤35uA(at DC24V)
Alarm Current:70mAMax(at DC24V)
Remote Output :15mA Max ,DIODE GATE
Alarm Indication:Red LED ON
Operating Temperature: -10℃ ~ +50℃
Operating Humidity :≤95%RH
Detecting Area: 80 square meter(with the installation height of 6m-12m), and 60 square meter (with the installation height less than 6m)
Dimension Size :104 mm dia.*51mm deep

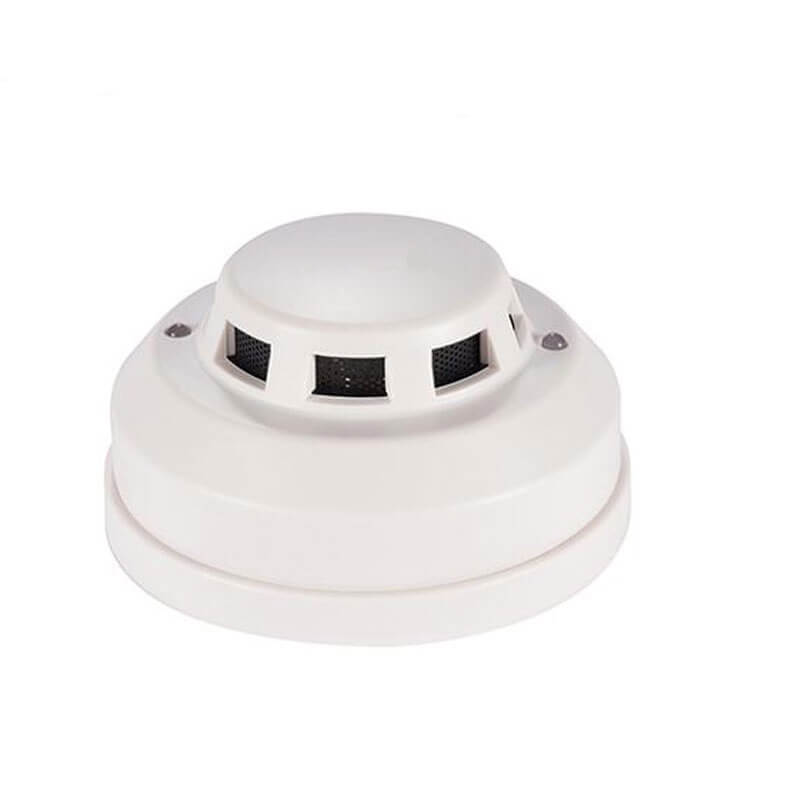

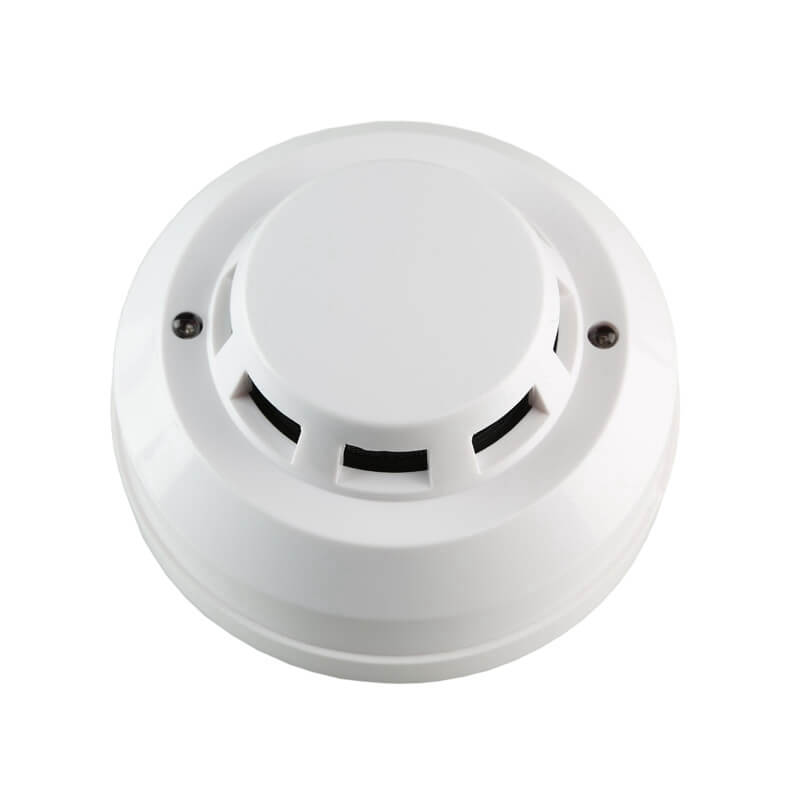

Product Pictures:
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,BT Module etc. Enter more
1:Can I get one sample for test before big order ?
Sure, you can.Please leave a message we will contact you soon.
2. Can I customized LOGO?
Yes you can. Packaging, products, instructions can be printed logo.
3. Can I customized functions?
Yes you can, we have professional R&D team to support best service, and give you best suggestions.
4. How about the quality of your products?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our products quality.
5. How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
6. When can you ship out my order after my payment?
Normally samples order: about 5-7 days; mass order 2-3 weeks.
7. Can I visit your factory and company office?
Sure, welcome ,any time!
Packaging information
Shipping information
* Express(UPS, DHL, Fedex, EMS, etc) is available.
* Sea and Air delivery is available
* welcome your agent to deal with our products .
