- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-612I
- Size:
- 86*86mm
- Max. Current:
- 5A
- Max. Voltage:
- 230V
- Mechanical Life:
- 10 Years
- Usage:
- Light control switch
- Power supply voltage:
- 220V/AC ~ 240V/AC
- Power frequency:
- 50 ~ 60Hz
- Ambient Light:
- Detection range: 8m max
- Detection angle:
- 360 degree
- Operating Temperature:
- -20 ~ 50 degree
- Relative humidity:
- less than 93% RH
- Installation height:
- 1.5m to 3.5m
- Power consumption:
- 0.45W (static 0.1W)
- Detection Motion Speed:
- 0.6 to 1.5m / s
- Supply Ability:
- 20000 Piece/Pieces per Month
- Packaging Details
- carton
- Port
- shenzhen
- Lead Time:
Quantity(Pieces) 1 - 500 >500 Est. Time(days) 10 To be negotiated
electric light pir motion sensor switch day night sensor switch

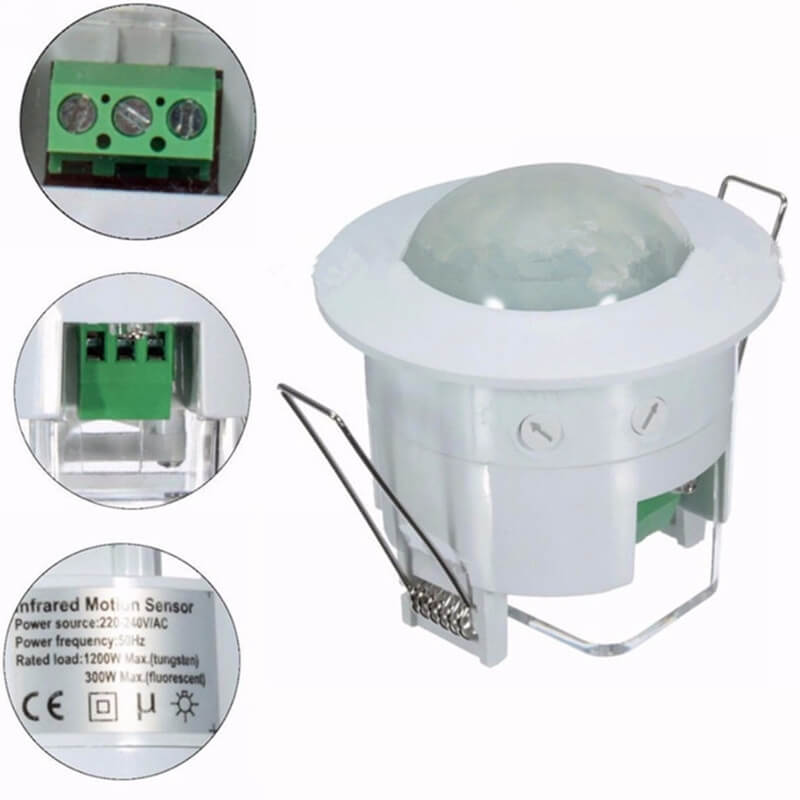

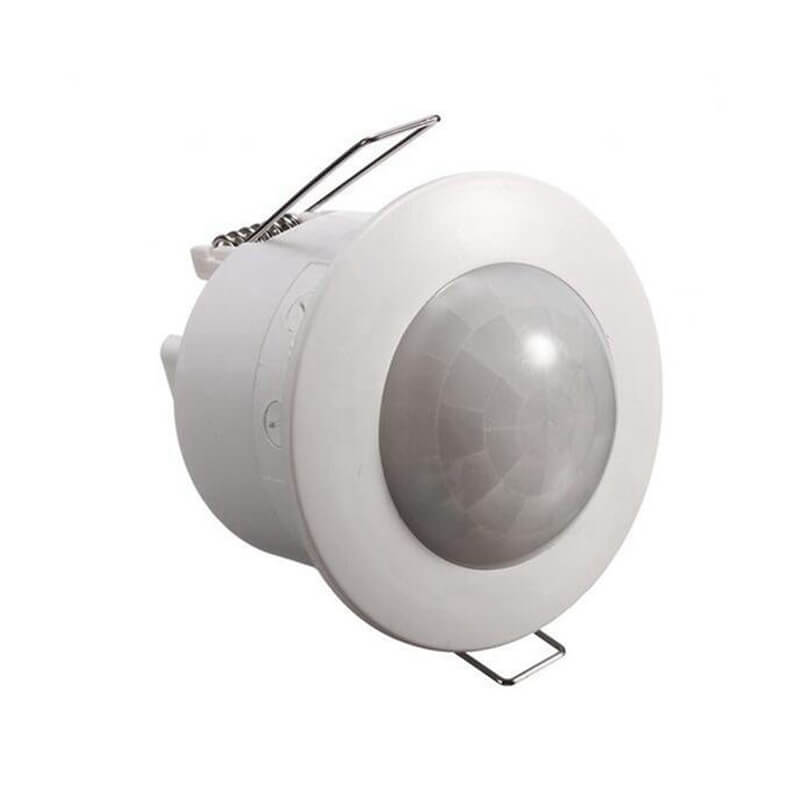

SR-612I: motion light switch, indoor
This product (motion light switch, indoor)is the use of far-infrared sensor to detect infrared rays emitted by the human body comparison operator, automatically control the lamp light off; turn on the lights by the the imported chip set lighting time, intelligent control and energy saving. This product is widely used in stairways, basements,toilets and other places, is a new type of energy-saving electronic switch.
Main technical parameters:
Power supply voltage: 220V/AC ~ 240V/AC
Power frequency: 50 ~ 60Hz
Ambient Light: <3LUX to daylight illumination (adjustable, adjustable night mode to 24-hour mode)
Detection range: 8m max
Load power: the principle of resistive electrical resistive 1200W (incandescent), emotional 300W (energy saving lamps, fluorescent lamps, ring tube, LED exhaust fan, alarms, and other appliances) (220V/AC 240V/AC)
Time Delay: min: sec +- 3 seconds, max: 7 minutes +- 2 min (adjustable)
Detection angle: 360 degree
Operating Temperature: -20 ~ 50 degree
Relative humidity: less than 93% RH
Installation height: 1.5m to 3.5m
Power consumption: 0.45W (static 0.1W)
Detection Motion Speed: 0.6 to 1.5m / s
