indoor 360 degree detector of movement sensor de movimiento 24v
The product is wired ceiling passive infrared detector with high stability. It adopts advanced signal processing technology, providing superhigh detection and anti-false alarm abilities, and MCU processing ensuring the reliability from the design basis. When an intruder passes through the detection area, the detector will detect the movements of human body automatically. If any movements, it will send alarm signal to the connected alarm host. It is suitable for safety protection in residential house, villas, factories, shopping malls, warehouses and office buildings etc.
Main features:
MCU control, resist false alarm efficiently
Double temperature compensation
Pulse count adjustment
Anti white light interference
Anti RF interference (20V/m-1GHz)
Fresnel lens
Wall/ceiling installation
Alarm output N.C. or N.O.
Alarm time optional (3s or 30s)
Intelligent floating thresholds technology
Patent appearance design
SMT manufacture technology with high stability
Technical specification:
Model NO. | SR-603W |
Operating voltage | DC9V~16V |
Static current | NC≤15mA NO≤6mA |
Alarm current | NC≤9mA NO≤18mA |
Alarm output | Relay output |
Detecting angle | 360° |
Detecting distance | 6m |
Operating temperature | -10℃~+50℃ |
Dimension | 100mm(Dia)*32mm(H) |

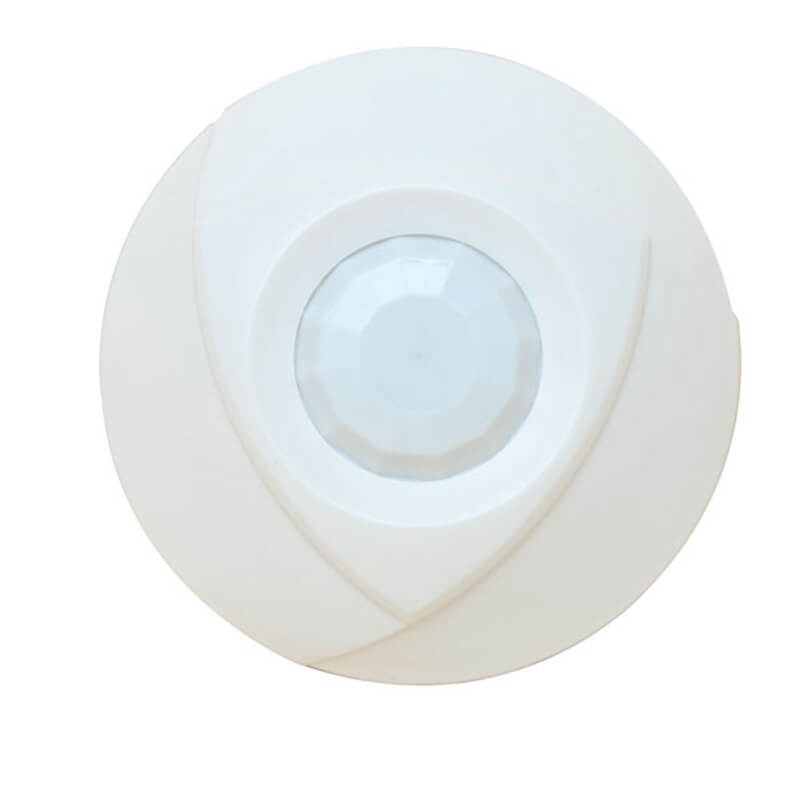

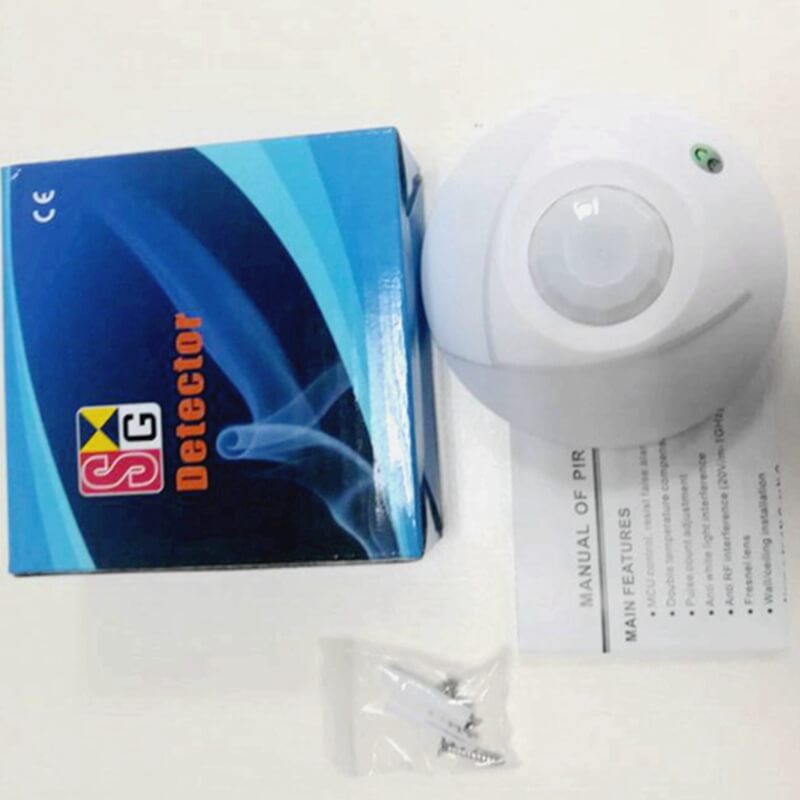

Product Pictures:
