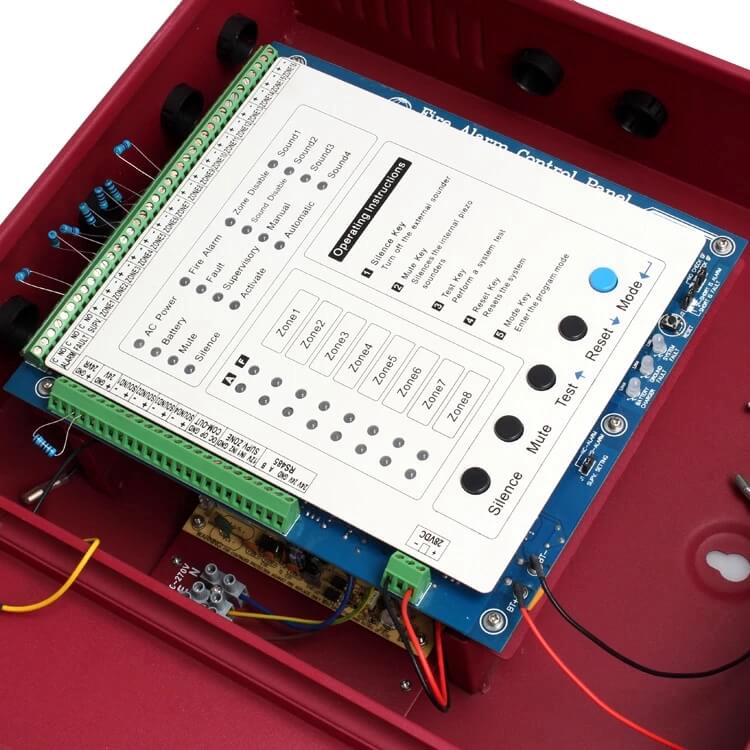

Click on the image to view the original image

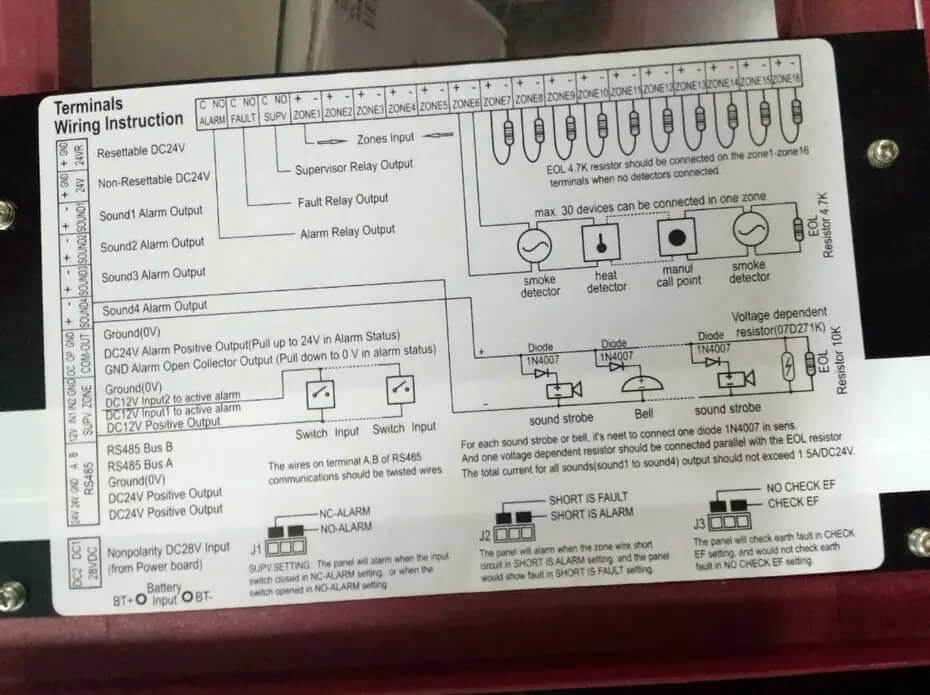

Four, Eight, Sixteen Zone Style B (Class B) Initiating Device Circuits (IDCs), All zones accept
two-wire smoke detectors and any normally-open contact devices.
Two Supervisory Input with DC12V output, ideal to connect security alarm devices.
Three General Alarm, Trouble and Supervisory, Form A Relay Output.
One, Two, Four Built-in Sound Output, Style Y (Class B) Notification Appliance (Signal) Circuits
(NACs), NACs may be programmed: Silenceable or Non-Silenceable.
3.0 amps of total system power. Resettable DC24V & Non-resettable DC24V Output.
Zone Input Short Circuit can be set to "Alarm" or " Fault" mode.
RS485 Communication Port (optional).
Automatic/Manual mode can be programmed.
Disable/Enable control per Zone (IDC) can be programmed.
Disable/Enable Sound Output(NACs) can be programmed.
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research &development of fire alarm ,security proucts and bluetooth module, including Fire alarm control panel, smoke detector,heat detector,
gas detector, motion detector, fire alarm bell/strobe siren, manual call point, magnetic contact, emergency exit etc.Enter more........
15 years experience
Complete fire alarm solution factory over 15 years.
Quality guarantee
10 times test procedures (28 hours) in production;40% regular client more than 10 years.
24-hour service
2 years warranty; layout, Response inquiry in 24 hours
