Click on the image to view the original image
- Place of Origin:
- Guangdong, China
- Brand Name:
- SUMRING
- Model Number:
- SR-603W
- Usage:
- Anti burglar
- Product name:
- led smart motion detector ceiling motion sensors 12 vdc pir sensor 24v
- Operating voltage:
- DC9V~16V
- Static current:
- NC≤15mA NO≤6mA
- Alarm current:
- NC≤9mA NO≤18mA
- Alarm output:
- Relay output

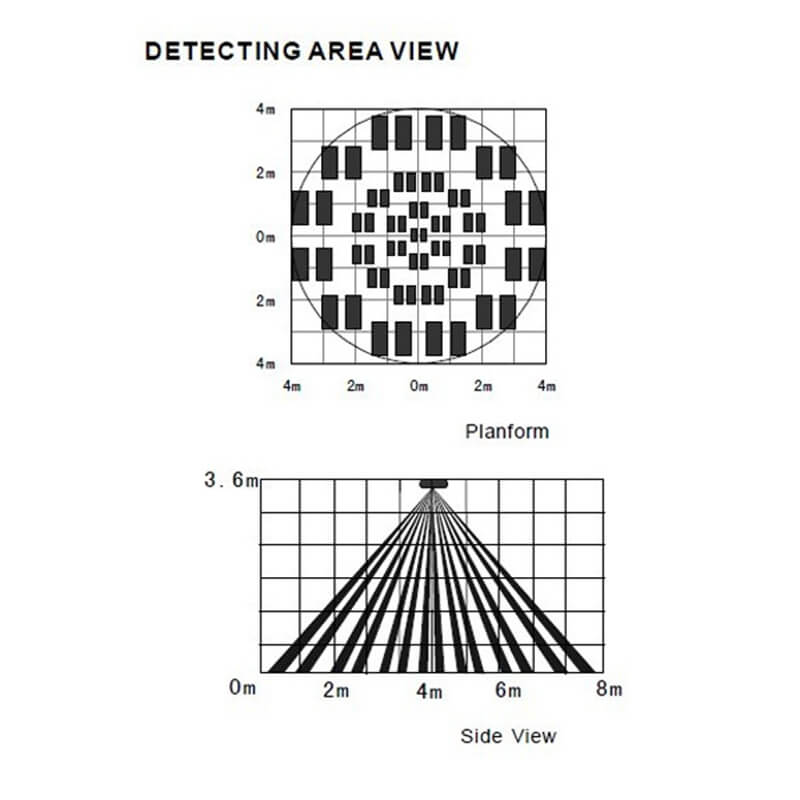

- Detecting angle:
- 360°
- Detecting distance:
- 6m
- Operating temperature:
- -10℃~+50℃
- Dimension:
- 100mm(Dia)*32mm(H)
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 10.2X10.2X3.4 cm
- Single gross weight:
- 0.25 kg
- Package Type:
- carton or netural color box

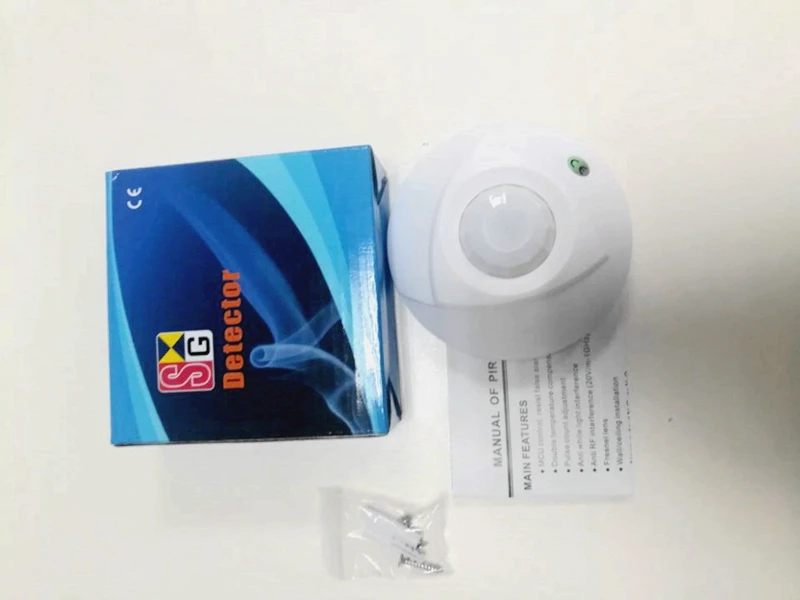

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 15 To be negotiated
led smart motion detector ceiling motion sensors 12 vdc pir sensor 24v
The product is wired ceiling passive infrared detector with high stability. It adopts advanced signal processing technology, providing superhigh detection and anti-false alarm abilities, and MCU processing ensuring the reliability from the design basis. When an intruder passes through the detection area, the detector will detect the movements of human body automatically. If any movements, it will send alarm signal to the connected alarm host. It is suitable for safety protection in residential house, villas, factories, shopping malls, warehouses and office buildings etc.
Main features:
MCU control, resist false alarm efficiently
Double temperature compensation
Pulse count adjustment
Anti white light interference
Anti RF interference (20V/m-1GHz)
Fresnel lens
Wall/ceiling installation
Alarm output N.C. or N.O.
Alarm time optional (3s or 30s)
Intelligent floating thresholds technology
Patent appearance design
SMT manufacture technology with high stability
Technical specification:
Model NO. | SR-603W |
Operating voltage | DC9V~16V |
Static current | NC≤15mA NO≤6mA |
Alarm current | NC≤9mA NO≤18mA |
Alarm output | Relay output |
Detecting angle | 360° |
Detecting distance | 6m |
Operating temperature | -10℃~+50℃ |
Dimension | 100mm(Dia)*32mm(H) |
Product Pictures:
Shenzhen SUMRING Technology Co. Ltd is a Hi-tech enterprise specialized in the research & development of security and fire alarm products, including PIR detector, smoke detector, gas leakage detector, Carbon Monoxide detector, fire alarm bell/strobe siren, manual call point, magnetic contact ,BT Module etc. Enter more
1:Can I get one sample for test before big order ?
Sure, you can.Please leave a message we will contact you soon.
2. Can I customized LOGO?
Yes you can. Packaging, products, instructions can be printed logo.
3. Can I customized functions?
Yes you can, we have professional R&D team to support best service, and give you best suggestions.
4. How about the quality of your products?
Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our products quality.
5. How long is your products quality warranty?
The warranty period is 2 years from the factory, if there are individual quality problems, we will replenish the customer in the next batch of orders
6. When can you ship out my order after my payment?
Normally samples order: about 5-7 days; mass order 2-3 weeks.
7. Can I visit your factory and company office?
Sure, welcome ,any time!
Packaging information:
Shipping information:
* Express(UPS, DHL, Fedex, EMS, etc) is available.
* Sea and Air delivery is available
* welcome your agent to deal with our products .
