DC 12V pir sensor adjustiable micro sensor de mivimiento alarm wired motion detector

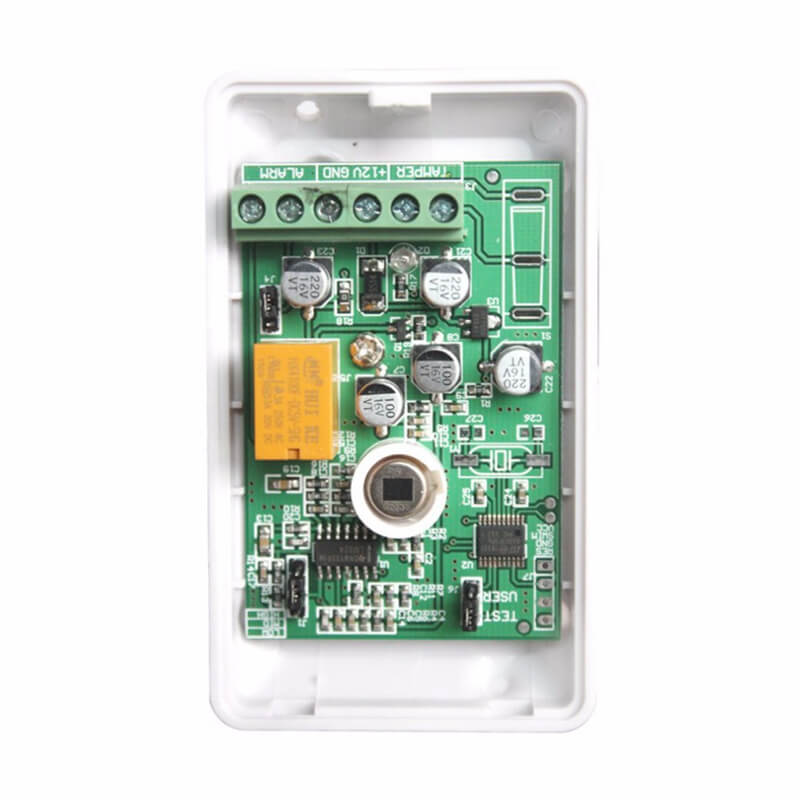

SR-610W Wide Angle PIR Detector (Infrared sensor)
fireproof ABS housing
LED ON/OFF optional
automatic temperature compensation
SMT adopted, anti-RFI & anti-EMI
pulse count optional
alarm output N.C./ N.O. optional
Technical specification:
| operating voltage | DC 9-16V |
| consumption current | ≤18mA(DC12V) |
| operating temp | -10ºC~+50ºC |

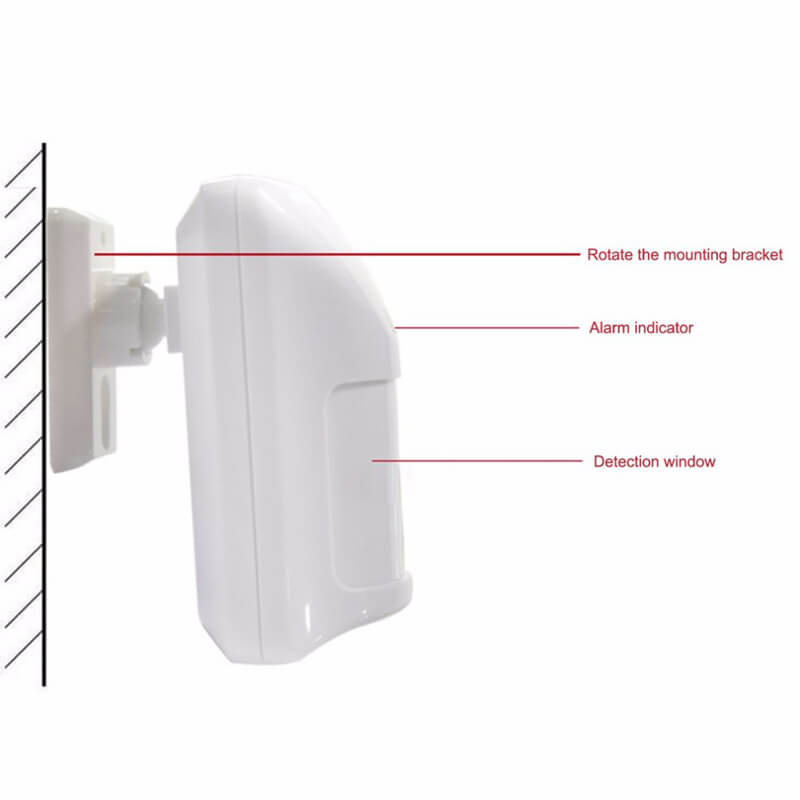

| installation mode | wall or corner mounted |
| installation height | about 2.2m |
| detecting distance | 12m |
| detecting angle | 110 degrees |
| alarm output | N.O./ N.C. optional |
| anti-dismantle switch | N.C. |
| dimension | 89*52.5*38.5mm |
| Delivery Time | |
| Sample order | 1-3 working days |
| Bulk order | 25-35 working days |
| Stock order | 7-10 working days |
Q1:Are you manufacture or trading company?
A1:We are a professional manufacture specialize in fire alarm products.
Q2:What is the moq?
A2:As usual,there is ready stock for our regular & hot selling models.
So any order quantity is welcome.
Q3:Can I customize LOGO and customized functions?
A3:Yes you can. Packaging, products, instructions can be printed logo. and functions we have professional R&D team to support best service.
Q4:How about the quality of your products?
A4:Our raw materials are purchased from qualified suppliers.
Q5:How long is the warranty time of the products?
A5:The warranty period is 2 years from the factory,if there are individual quality problems,
we will replenish the customer in the next batch of orders.
