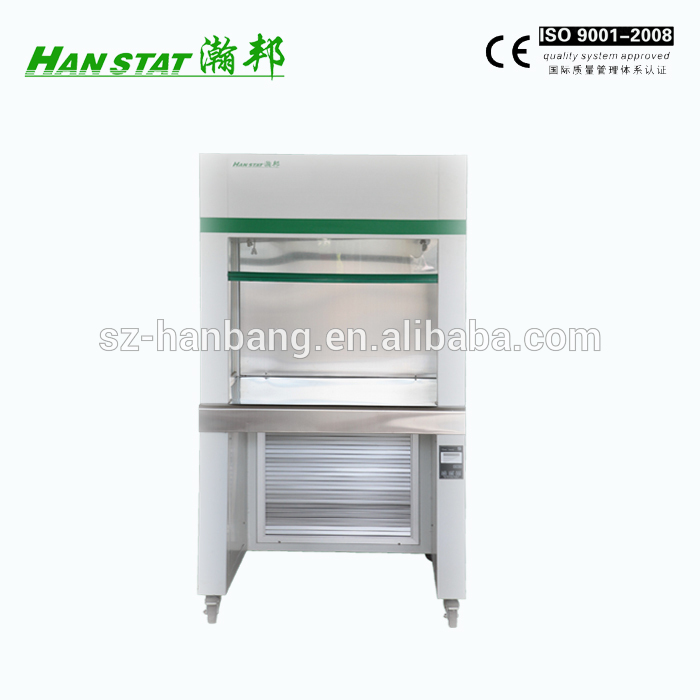

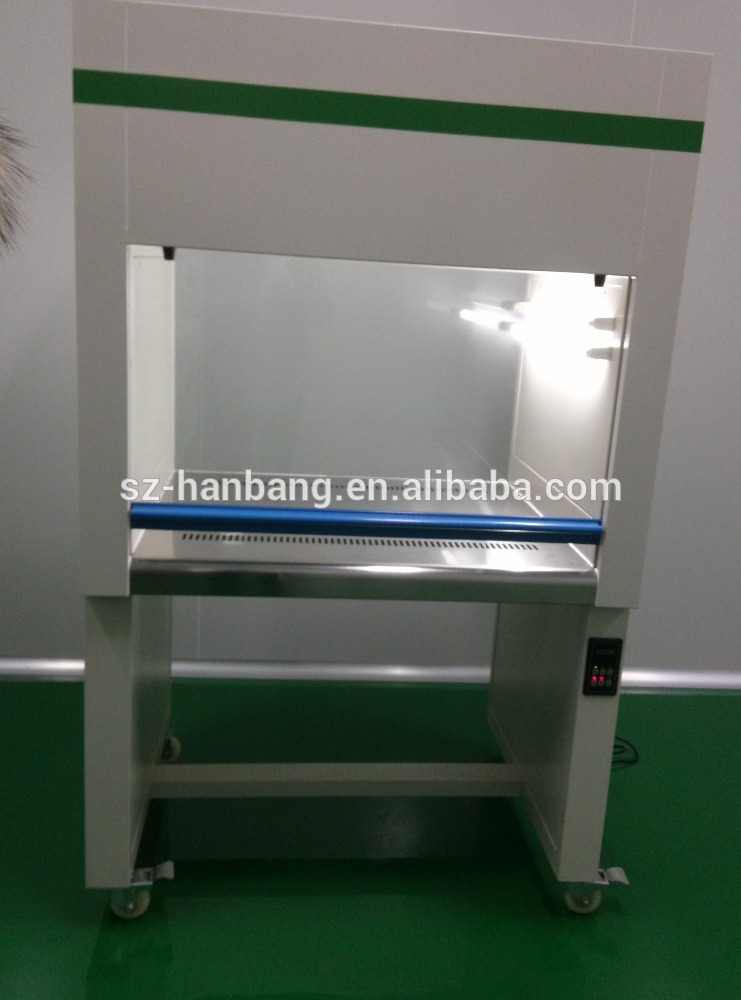

Professional Lab Furniture Lab Biology Laminar Air Flow Clean Work Bench
Introduction:
HB-CJ-B1 single person horizontal flow clean bench makes the fan set horizontally.
The working noise of the product is lower than the vertical product.
The single person horizontal flow clean bench is equipped with one set of centrifugal fan featuring high air pressure and low working noise. The adopted ultra-thin baffleless high efficiency air filter allows the dimension of the plenum chamber to the lowest level. Then the size of the operational plate is much larger and the operational space is more spacious. The right and left sides of the product are 8mm thickened glass which makes the working area more spacious and brighter. Meanwhile, the high quality laminar flow equipment is applied for providing high clean environment.
As a China-based single person horizontal flow clean bench manufacturer, we also offer air curtain, open type clean cabinet, clean room HEPA filter, double person air shower room, and much more.
Technical Parameters
| Item | Data | |
| Number of Aerobic Plate | ≤0.5/m·h | |
| Filtration Efficiency | ≥0.3um (for the diameter of particle) ≥99.995% (for the dust with sodium flame method ) | |
| Average Air Flow Speed | ≥0.5m/s ±20% (adjustable) | |
| Noise | ≤62dB (A) | |
| Vibration | ≤3um (in the directions of X, Y, Z) | |
| Illumination | ≥300lx | |
| Power Supply | 220V 50Hz | |
| Illumination Lamp | 20W×1 | |
| Ultraviolet Lamp | 20W×1 | |
| Max. Power Consumption | 400W (Rated Power) | |
| Outside Dimension (W×D×H)mm | 900×720×1430 | |
| Dimension of Operation Area(mm) | 860×520×600(mm) | |
| Dimension | Medium Efficiency Air Filter | 437×390mm |
| High Efficiency Air Filter | 820×600×50mm | |
| Weight | 110kg | |
