- Applicable Industries:
- Hote
- Place of Origin:
- China
- Brand Name:
- HAN STAT
- Warranty:
- 1 Year
- After-sales Service Provided:
- No after-sales service, Engineers available to service machinery overseas
- Material:
- Stainless Steel
- Application:
- 100 Lab / Laboratory Clean Room
- Certification:
- CEFCC FDA Certification
- Color:
- As shown in the picture
- Noise:
- ≤62dB(A)
- Outline dimension:
- 990*750*1620mm
- Working dimension:
- 830*600*520mm
- Flow type:
- vertical
- Air speed:
- 0.3-0.6m/s(adjustable)
- Supply Ability:
- 100 Set/Sets per Month
- Packaging Details
- Standard export packing, foam inside packing with plywood case outside
- Port
- Shanghai
- Picture Example:
- Lead Time:
Quantity(Sets) 1 - 5 >5 Est. Time(days) 10 To be negotiated
Clean bench Category: From the air flow into: vertical flow clean bench (clean bench) and horizontal flow clean bench (clean bench). Purification table divided from the number of operators: divided into single-table and double table; Purification table from the structural points: divided into conventional and new push-pull and self-circulation (vertical flow only).

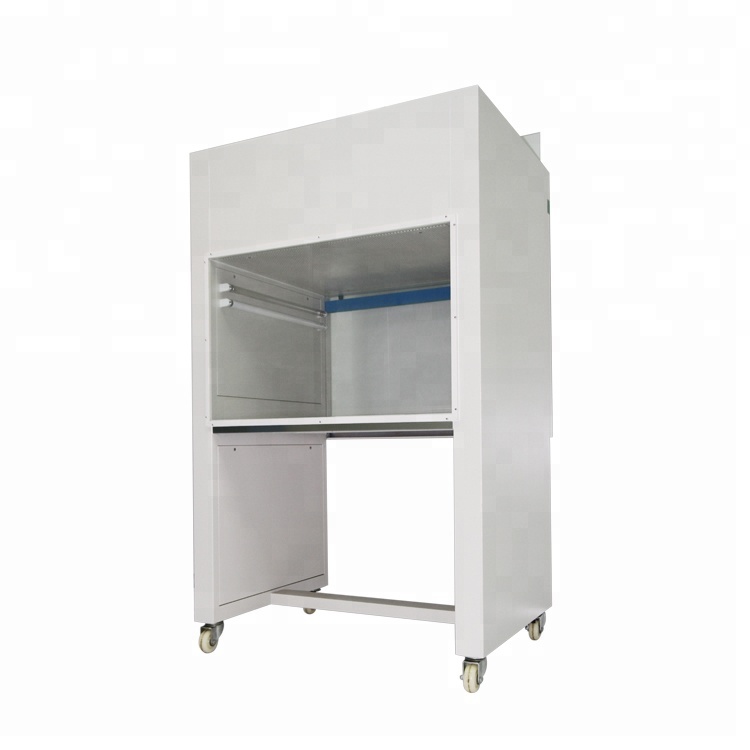

Vertical flow purification workbench is different from the horizontal flow purification plant, the general use of vertical unidirectional flow purification principle of the form of air, the low noise centrifugal fan, plenum, high efficiency filter unit with a single integrated structure
Configration | Vertical flow clean bench | Horizontal flow clean bench | ||
Model | HB-CJ-B1 | HB-CJ-B2 | HB-CJ-A1 | HB-CJ-A2 |
Outline dimension(mm) | 990 X 750 X 1620 | 1500 X 750 X 1620 | 900 X 700 X 1430 | 1500 X 700 X 1430 |
working space dimensions(mm) | 830 X 600 X 520 | 1340 X 600 X 520 | 850 X 520 X 600 | 1450 X 520 X 600 |
Power(kW) | 0.4 | 0.8 | 0.4 | 0.8 |
Net weight(kg) | 110 | 200 | 110 | 200 |
Specification and quantity of efficent filter(mm) | 800 X 600 X 50 / 1 | 650 X 600 X 50 / 2 | 820X600X50/ 1 | 820 X 600 X 50 / 1 600 X 600 X 50 / 1 |
Size and Qty of Light | 20w X 1 | 20w X 2 | 20w X 1 | 40w X 1 |
Size and Qty of UV Light | 20w X 1 | 20w X 2 | 20w X 1 | 40w X 1 |
Noise(dB) | ≦62 | |||
Average air Volume(m3/h) | 0.30-0.60m/s (Adjustabie) | |||
Cleanliness class | 100@≥0.5μm FED209E |



Application
Clean bench are widely services in: medical and health, biological, pharmaceutical, food and beverage, cosmetics, electronic optical, semiconductor, laboratory instrument, thermal power, aerospace science and technology, etc.



Suzhou Hanbang Sterilizer Equipment Co,.Ltd. is specialized in independent research and development, as well as professional production and sales of purifying equipment and sterilizer products.
The main products include: Dynamic and static ultraviolet disinfector, Plasma sterilizer, Electrostatic precipitator, Ozone sterilization cabinet, Ozone generator, Bed unit disinfector, Clean workstation, Medical purification screen, Biological safety cabinet, and other series disinfection products and air purification equipment.
