Horizontal Laminar Flow Cabine/class 100 clean bench/ laminar flow cabin Hoods laminar flow cabin

Click on the image to view the original image

Product：	views：3Horizontal Laminar Flow Cabine/class 100 clean bench/ laminar flow cabin Hoods laminar flow cabin
Branch：	HAN STAT
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 17:49

Product Details

Overview

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: HAN STAT

Warranty:: 1 Year, 1 Year

After-sales Service Provided:: Free spare parts

Color:: As shown in the picture

Material:: Steel

Outside dimension:: 900*700*1430mm

Application:: Labmedical

Class:: ISO5

Illuminance:: ≥300Lx

Flow:: horizontal

Noise:: ≤62dB(A)

Air velocity:: 0.3-0.6m/s

Supply Ability

Supply Ability:: 200 Set/Sets per Month

Packaging & Delivery

Packaging Details: Carton, 1 unit /carton; or Plywood box

Port: Shanghai /ningbo

Lead Time:

Quantity(Sets)	1 - 1	>1
Est. Time(days)	7	To be negotiated

Product Description

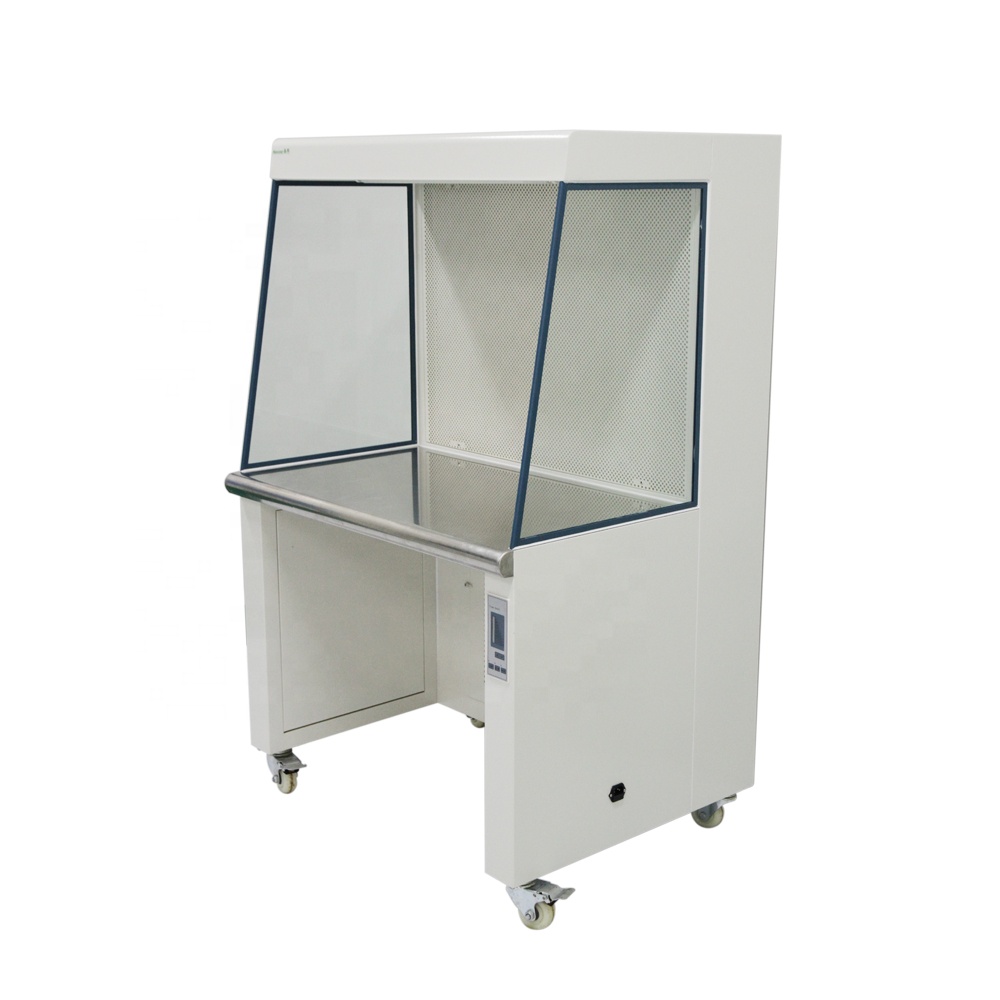

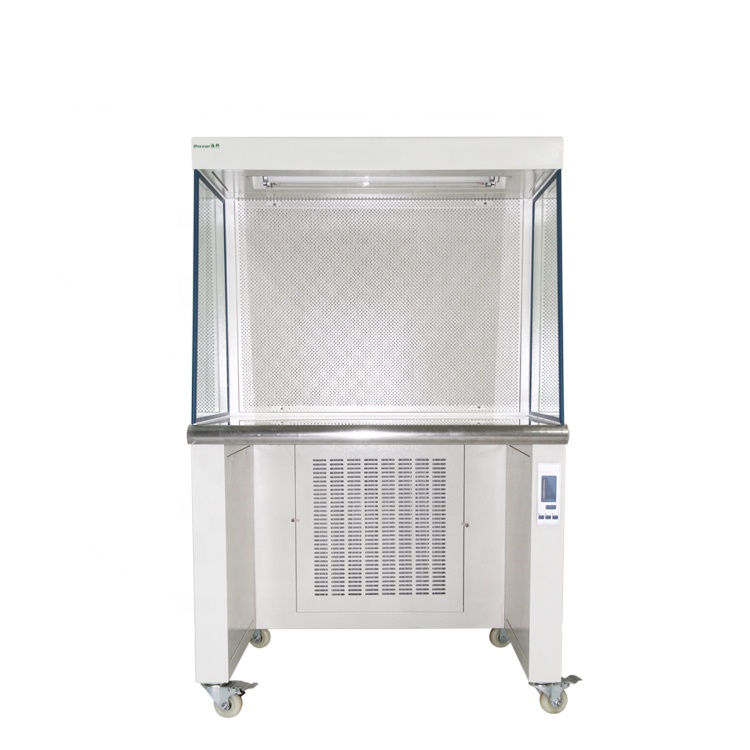

Horizontal Laminar Flow Cabine/class 100 clean bench/ Laminar Flow Hoods

Main Application:

HB-CJ-A2 standard clean bench is a kind of local clean bench with strong universality, and it is widely used in electron, national defense, precision instrument, instrument, pharmacy and other industries.

Product characteristics:

1.Horizontal manifold, open type bench and convenient operation. The clean bench is equipped with a differential pressure gauge, and thus the change situation of the resistance of the efficient filter can be mastered at any time;

2.The fan system with adjustable air volume is adopted, and the light touch type switch is used for adjusting the voltage;

3.Ensure that the wind speed in working area is always in the ideal state;

4.The working bench is made of imported stainless steel;

Parameters

Configration	Vertical flow clean bench		Horizontal flow clean bench
Model	HB-CJ-B1	HB-CJ-B2	HB-CJ-A1	HB-CJ-A2
Outline dimension（mm)	990 X 750 X 1620	1500 X 750 X 1620	900 X 700 X 1430	1500 X 700 X 1430
working space dimensions（mm)	830 X 600 X 520	1340 X 600 X 520	850 X 520 X 600	1450 X 520 X 600
Power（kW)	0.4	0.8	0.4	0.8
Net weight(kg)	110	200	110	200
Specification and quantity of efficent filter(mm)	800 X 600 X 50 / 1	650 X 600 X 50 / 2	820X600X50/ 1	820 X 600 X 50 / 1 600 X 600 X 50 / 1
Size and Qty of Light	20w X 1	20w X 2	20w X 1	40w X 1
Size and Qty of UV Light	20w X 1	20w X 2	20w X 1	40w X 1
Noise(dB)	≦62
Average air Volume（m3/h)	0.30-0.60m/s (Adjustabie)
Cleanliness class	100@≥0.5μm FED209E
