- Place of Origin:
- China
- Brand Name:
- Hanbang
- Model Number:
- HB-P-BY980/1180
- Panel Material:
- Metal
- Panel thickness:
- 50/75/100mm
- Length:
- Customer's Choice
- Steel thickness:
- 0.4-1.0mm
- Usage:
- Walls/doors/roofs
- Color:
- Red/blue/white/grey
- Core material:
- Glass magnesium & rock wool
- Rock wool density:
- 120Kg/m3
- Thermal conductivity:
- 0.044w/m.k
- Inorganic board density:
- 118Kg/m3
- Supply Ability:
- 1000 Square Meter/Square Meters per Day
- Packaging Details
- According to customer's requirements
- Port
- Shanghai

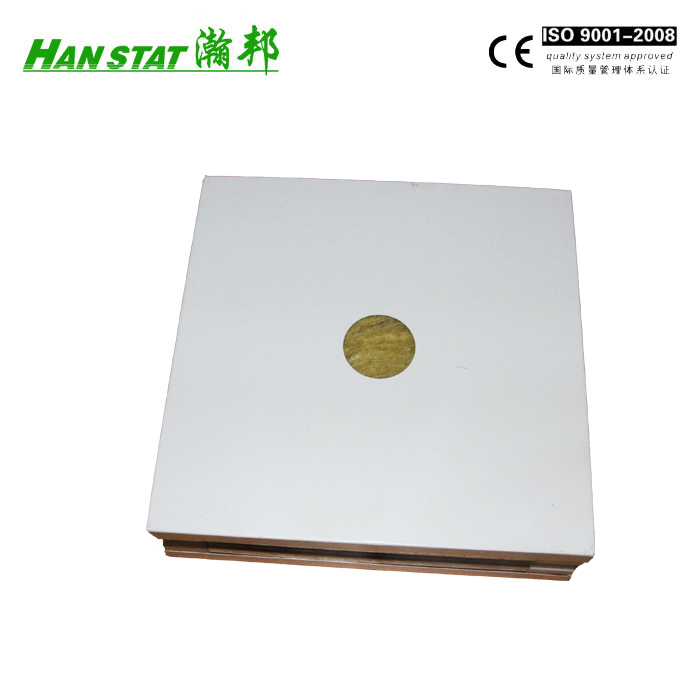

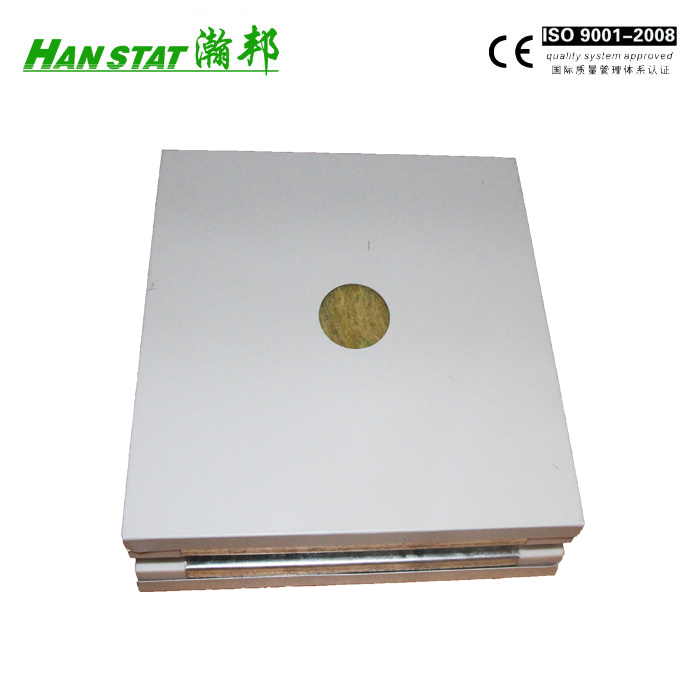

- Picture Example:
Handmade glass magnesium & rock wool color coated steel plate adopts color coated plate for both sides, core material is inorganic glass magnesium and rock wool. With aluminum alloy cold drawn frame or Iron keel frame for surround and adopts handmade crafts.
Core material and color coated steel plate surface adopt PAPU strongly one-component PU adhesive, after the liquid adhesive curing, bonding strength is extremely strong, will not melt dripping in high temperature, curing rubber avirulent insipidity, in conformity with the relevant requirements of the ISO or IMO standard.
Beautiful surface, sound insulation, heat insulation, heat preservation, anti-seismic and fire proof performance meet the national standard.
This product has fast and convenient installation, comprehensive benefit is significant. It is widely used in electronic (industrial factory), medicine (clean room) and chemical (fire prevention workshop), factory plant for food, scientific research, aerospace, medical, and functional partition and ceiling for factory lab and all kinds of places.
Performance and quality standards
Rock wool density: 120Kg/m³
Thermal Conductivity: 0.044w/m.k
Inorganic board density: 118Kg/m³
Thermal Conductivity: 0.09w/m.k
The fire resistance of inorganic non-combustible color coated steel with sandwich performance is grade A1.
Product specifications
Length: according to customer"s requirements (usually less than or equal to 6000mm).
Width: standard is 980mm, 1180mm; no limit for non-standard.
Thickness: 50mm, 75mm, 100mm, custom-made.
