- Applicable Industries:
- Manufacturing Plant, Machinery Repair Shops, Biology Electronics Precision Instruments Medic
- Place of Origin:
- China
- Brand Name:
- HAN STAT
- Warranty:
- 1 Year
- After-sales Service Provided:
- Free spare parts, Engineers available to service machinery overseas
- Cleanliness:
- ISO5(Class5)100@≥0.5μm FED209E
- Air Velocity:
- ≥0.3m/sec(3 levels adjustable)
- Vibration/Half Peak:
- ≤4μm
- Illumination:
- ≥300LX
- Material 1:
- Main Body: Cold-rolled steel with anti-bacteria powder coating
- Material 2:
- Work Table:304 stainless steel
- Outline dimension (Width*Deep*Height):
- 990 X 750 X 1620mm
- Working Zone (Width*Deep*Height):
- 830 X 600 X 520mm
- Hepa filter:
- 99.999% efficiency at 0.3um
- Supply Ability:
- 100 Unit/Units per Month
- Packaging Details
- Polywood box or carton
- Port
- Shanghai
- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Units) 1 - 1 2 - 2 >2 Est. Time(days) 7 15 To be negotiated

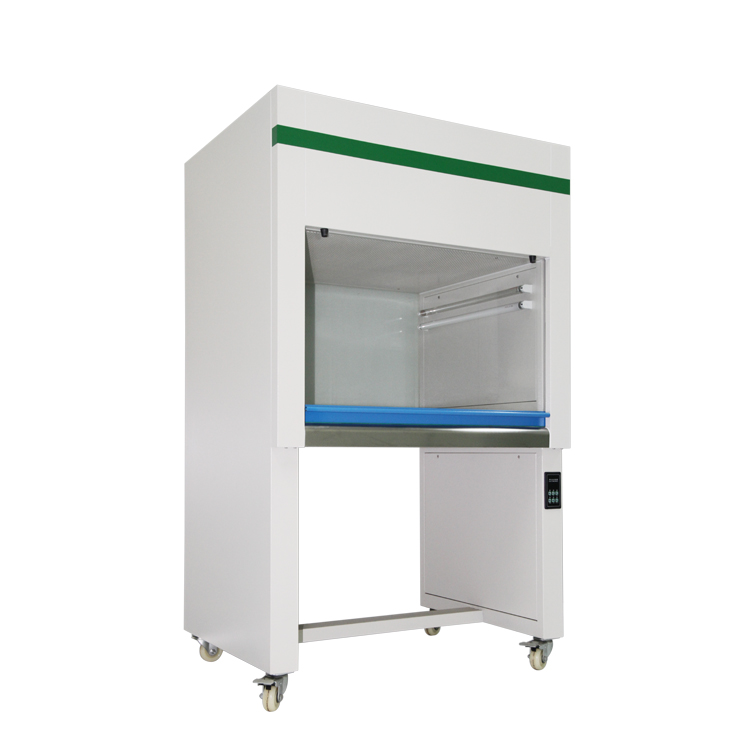

Vertical air supply laminar air flow cabinet clean bench
Application:
clean benchare widely services in: medical and health, biological, pharmaceutical, food and beverage, cosmetics, electronic optical, semiconductor, laboratory instrument, thermal power, aerospace science and technology, etc.
Configration | Vertical flow clean bench | Horizontal flow clean bench | |||||
Model | HB-CJ-B1 | HB-CJ-B2 | HB-CJ-A1 | HB-CJ-A2 | |||
Outline dimension(mm) | 990 X 750 X 1620 | 1500 X 750 X 1620 | 900 X 700 X 1430 | 1500 X 700 X 1430 | |||
working space dimensions(mm) | 830 X 600 X 520 | 1340 X 600 X 520 | 850 X 520 X 600 | 1450 X 520 X 600 | |||
Power(kW) | 0.4 | 0.8 | 0.4 | 0.8 | |||
Net weight(kg) | 110 | 200 | 110 | 200 | |||
Specification and quantity of efficent filter(mm) | 800 X 600 X 50 / 1 | 650 X 600 X 50 / 2 | 820X600X50/ 1 | 820 X 600 X 50 / 1 600 X 600 X 50 / 1 | |||
Size and Qty of Light | 20w X 1 | 20w X 2 | 20w X 1 | 40w X 1 | |||
Size and Qty of UV Light | 20w X 1 | 20w X 2 | 20w X 1 | 40w X 1 | |||
Noise(dB) | ≦62 | ||||||
Average air Volume(m3/h) | 0.30-0.60m/s (Adjustabie) | ||||||
Cleanliness class | 100@≥0.5μm FED209E | ||||||
Clean bench Category: From the air flow into: vertical flow clean bench (clean bench) and horizontal flow clean bench (clean bench). Purification table divided from the number of operators: divided into single-table and double table; Purification table from the structural points: divided into conventional and new push-pull and self-circulation (vertical flow only).
Vertical flow purification workbench is different from the horizontal flow purification plant, the general use of vertical unidirectional flow purification principle of the form of air, the low noise centrifugal fan, plenum, high efficiency filter unit with a single integrated structure.
