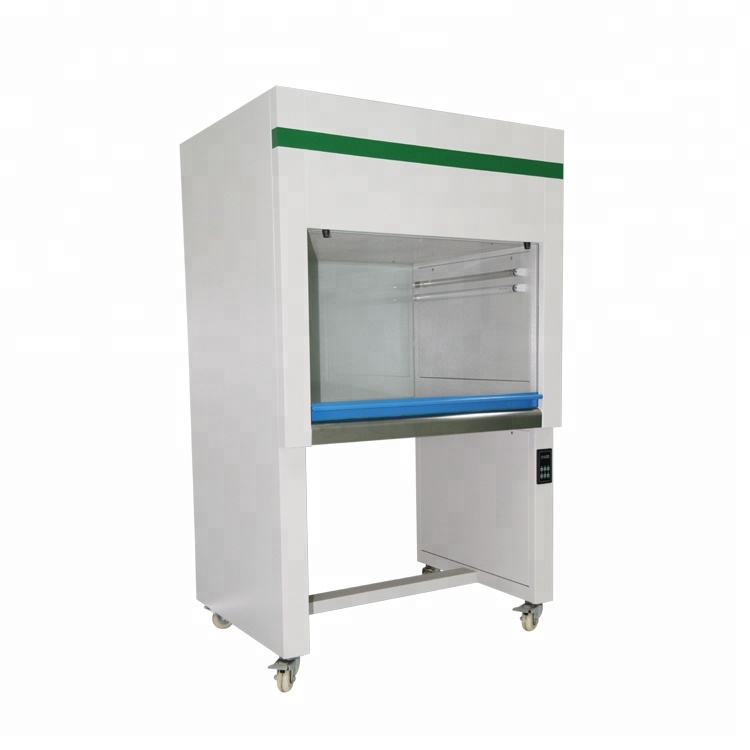

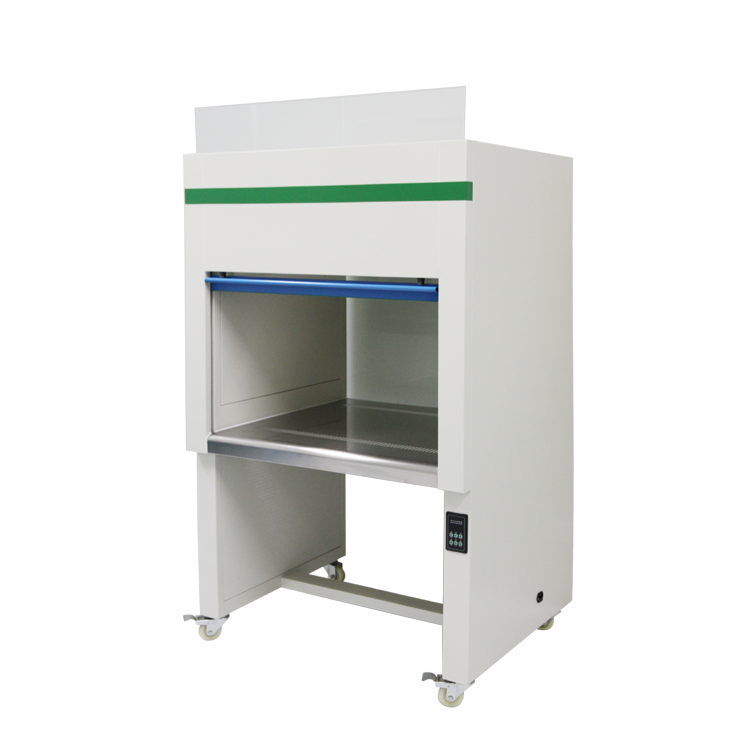

hepa filter Vertical airflow Class 100 pharmaceutical clean room bench price

Click on the image to view the original image

Product：	views：3hepa filter Vertical airflow Class 100 pharmaceutical clean room bench price
Branch：	HAN STAT
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-12-03 17:49

Product Details

Overview

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: HAN STAT

Model Number:: HB-CJ-B1

Cleanliness:: ISO5(Class5)100@≥0.5μm FED209E

Air Velocity:: ≥0.3m/sec(3 levels adjustable)

Noise:: ≤62dB(A)

Vibration/Half Peak:: ≤4μm

Illumination:: ≥300LX

Material 1:: Main Body: Cold-rolled steel with anti-bacteria powder coating

Material 2:: Work Table:304 stainless steel

Outline dimension (Width*Deep*Height):: 990 X 750 X 1620mm

Working Zone (Width*Deep*Height):: 830 X 600 X 520mm

Hepa filter:: 99.999% efficiency at 0.3um

After-sales Service Provided:: Engineers available to service machinery overseas

Supply Ability

Supply Ability:: 100 Unit/Units per Month

Packaging & Delivery

Packaging Details: Polywood box or carton

Port: Shanghai

Lead Time:: Shipped in 7 days after payment

Product Description

Application:

clean benchare widely services in: medical and health, biological, pharmaceutical, food and beverage, cosmetics, electronic optical, semiconductor, laboratory instrument, thermal power, aerospace science and technology, etc.

Parameters

Configration	Vertical flow clean bench		Horizontal flow clean bench
Model	HB-CJ-B1	HB-CJ-B2	HB-CJ-A1	HB-CJ-A2
Outline dimension（mm)	990 X 750 X 1620	1500 X 750 X 1620	900 X 700 X 1430	1500 X 700 X 1430
working space dimensions（mm)	830 X 600 X 520	1340 X 600 X 520	850 X 520 X 600	1450 X 520 X 600
Power（kW)	0.4	0.8	0.4	0.8
Net weight(kg)	110	200	110	200
Specification and quantity of efficent filter(mm)	800 X 600 X 50 / 1	650 X 600 X 50 / 2	820X600X50/ 1	820 X 600 X 50 / 1 600 X 600 X 50 / 1
Size and Qty of Light	20w X 1	20w X 2	20w X 1	40w X 1
Size and Qty of UV Light	20w X 1	20w X 2	20w X 1	40w X 1
Noise(dB)	≦62
Average air Volume（m3/h)	0.30-0.60m/s (Adjustabie)
Cleanliness class	100@≥0.5μm FED209E

Clean bench Category: From the air flow into: vertical flow clean bench (clean bench) and horizontal flow clean bench (clean bench). Purification table divided from the number of operators: divided into single-table and double table; Purification table from the structural points: divided into conventional and new push-pull and self-circulation (vertical flow only).
Vertical flow purification workbench is different from the horizontal flow purification plant, the general use of vertical unidirectional flow purification principle of the form of air, the low noise centrifugal fan, plenum, high efficiency filter unit with a single integrated structure.
