Overview
Quick Details
- Place of Origin:
- Jiangsu, China
- Brand Name:
- HAN STAT
- Name:
- Selling hot vertical flow clean bench
- Material:
- Metal / Coil
- use:
- Sterilizing / Disinfecting
- Power:
- 400
- Size:
- 990*750*1620 mm
- Color:
- As shown in the picture
- Warranty:
- 1 Year
- MOQ:
- 10 Units
- Cleaning class:
- 100
- Application:
- lab/hospital/facotry
- After-sales Service Provided:
- Engineers available to service machinery overseas
Supply Ability
- Supply Ability:
- 200 Set/Sets per Month
Packaging & Delivery
- Packaging Details
- Carton, 1 unit /carton; or Poly wood box
- Port
- Shanghai
Detailed Images

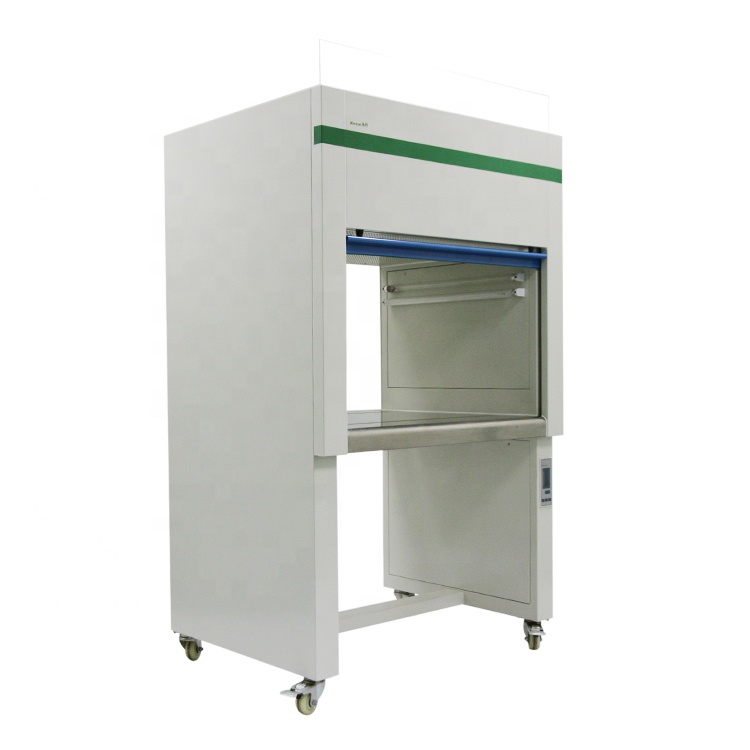

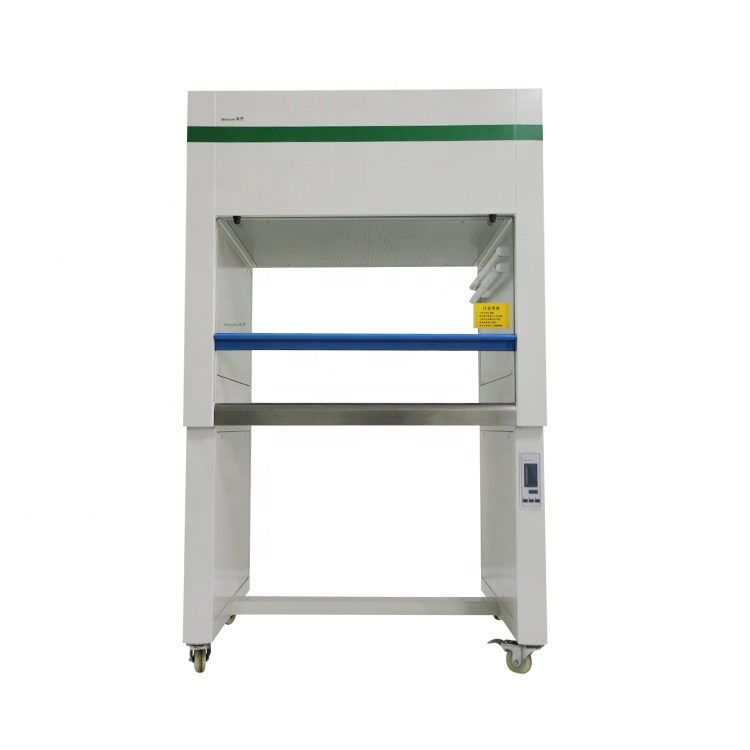

Selling hot vertical flow clean bench
Configration | Horizontal flow clean bench | Vertical flow clean bench | ||
Model | HB-CJ-A1 | HB-CJ-A2 | HB-CJ-B1 | HB-CJ-B2 |
Outline dimension(mm | 900 X 700 X 1430 | 1500*700*1450 | 990 X 750 X 1620 | 1500 X 750 X 1450 |
Power(kW) | 0.4 | 0.8 | 0.4 | 0.8 |
Size and Qty of Light | 20w X 1 | 40w X 1 | 20w X 1 | 20w X 2 |
Size and Qty of UV Light | 20w X 1 | 40w X 1 | 20w X 1 | 20w X 2 |
Noise(dB) | ≦62 | |||
Average air Volume(m3/h) | 0.30-0.60m/s (Adjustabie) | |||
Cleanliness class | 100@≥0.5μm FED209E |

Product Description
Main Application
single person horizontal flow clean bench makes the fan set horizontally.
The single person horizontal flow clean bench is equipped with one set of centrifugal fan featuring high air pressure and low working noise. The adopted ultra-thin baffleless high efficiency air filter allows the dimension of the plenum chamber to the lowest level. Then the size of the operational plate is much larger and the operational space is more spacious. The right and left sides of the product are 8mm thickened glass which makes the working area more spacious and brighter. Meanwhile, the high quality laminar flow equipment is applied for providing high clean environment.
As a China-based single person horizontal flow clean bench manufacturer, we also offer air curtain, open type clean cabinet, clean room HEPA filter, double person air shower room, and much more.
As a China-based single person horizontal flow clean bench manufacturer, we also offer air curtain, open type clean cabinet, clean room HEPA filter, double person air shower room, and much more.
Product characteristics:
1.Horizontal manifold, open type bench and convenient operation. The clean bench is equipped with a differential pressure gauge, and thus the change situation of the resistance of the efficient filter can be mastered at any time;
2.The fan system with adjustable air volume is adopted, and the light touch type switch is used for adjusting the voltage;
3.Ensure that the wind speed in working area is always in the ideal state;
The working bench is made of imported stainless steel;
