- Type:
- LED PL Lamp
- Input Voltage(V):
- AC 100-240V
- Lamp Luminous Flux(lm):
- 600
- CRI (Ra>):
- 83
- Working Temperature(℃):
- -20 - 45
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum
- Certification:
- CE, EMC, FCC, LVD, RoHS
- Base Type:
- G24-2pin/G24-4pin/G23/E27
- Place of Origin:
- Guangdong, China
- Brand Name:
- Liweida
- Model Number:
- LVP1203I-6
- Application:
- Residential
- Light Source:
- LED
- Lamp Luminous Efficiency(lm/w):
- 100
- Product Name:
- LED PLC LIGHT
- Power:
- 6W/8W/10W/12W
- Input Voltage:
- AC 100-240V
- LED G24 Plc Lamp LEDs:
- 12pcs 5730SMD
- Color Temperature:
- 3000K/4000K/6000K
- Beam Angle:
- 120degree
- Power Factor:
- 0.98
- Size:
- 170*35*35mm
- Power Supply:
- Isolation
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 20X8X8 cm
- Single gross weight:
- 0.5 kg
- Package Type:
- Standard export box and carton or as client's design Packing
- Lead Time:
Quantity(Piece) 1 - 500 >500 Est. Time(days) 5 To be negotiated

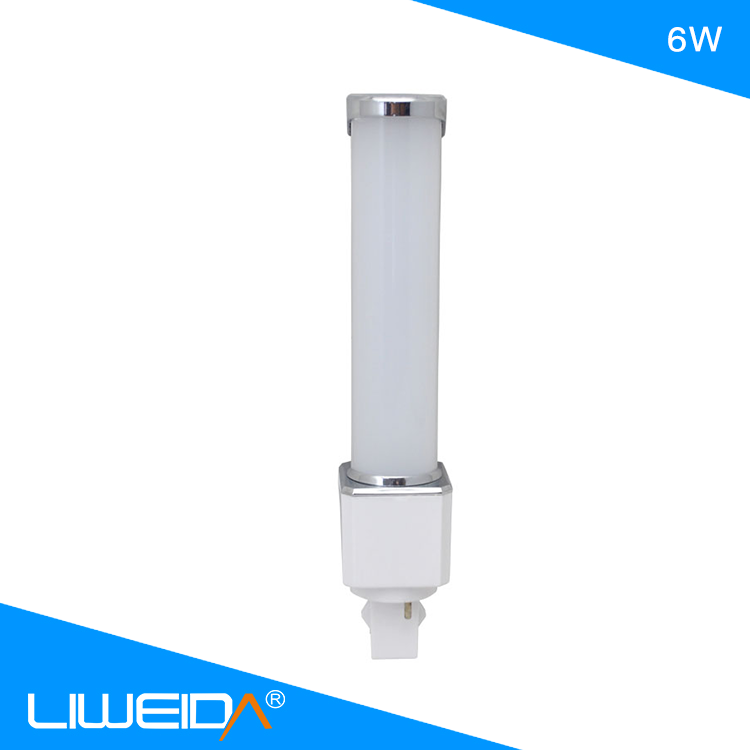

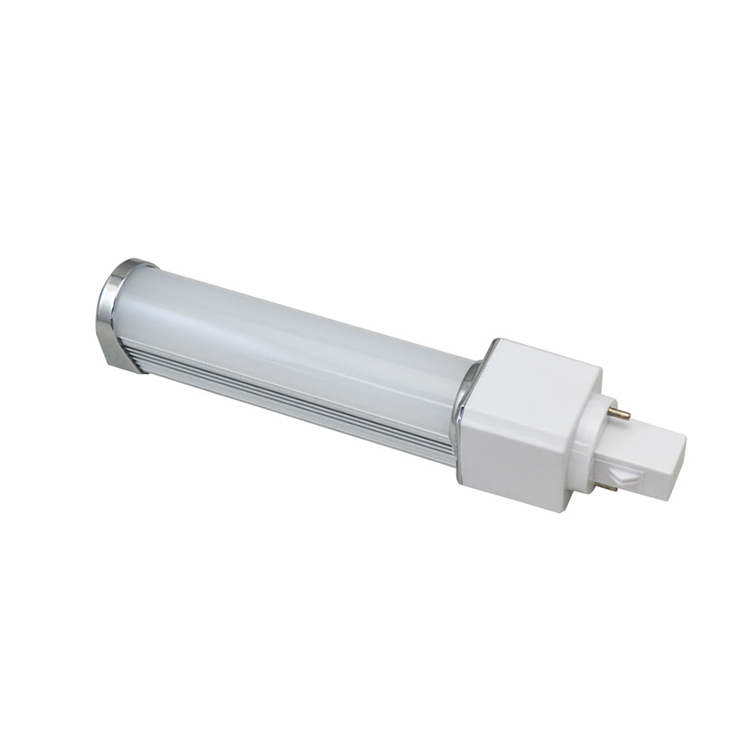

3 Years warranty 6W 8W 10W 12W g23 g24 pl led light compatible with magnetic ballast
1.Product Introduction
LED PLC light is a kind of modern and decorative lighting, which is ideal for Store, supermarkets, hotels, Office and indoor lighting. LED PLC light has main advantages of low-carbon energy, adapting to global energy conservation, low-carbon lifestyle trends. The life span for LED PLC light is 50000 hours, equivalent to 50 times of incandescent lamp.
2.Product Features
1)LEDs with high lumen and no-flicker trait make facilities more bright and bring harmonious atmosphere.
2)Constant current driver guarantees product stability and long life span.
3)G24-2pin, G24-4pin, G23 and E27 bases are available.
4)6W,8W,10W and 12W power are available;
5)CE and RoHS certificates are available.
3.Product Specifications
2.Product Introduction
LED PLC light is a kind of modern and decorative lighting, which is ideal for Store, supermarkets, hotels, Office and indoor lighting. LED PLC light has main advantages of low-carbon energy, adapting to global energy conservation, low-carbon lifestyle trends. The life span for LED PLC light is 50000 hours, equivalent to 50 times of incandescent lamp.
3.Product Features
1)LEDs with high lumen and no-flicker trait make facilities more bright and bring harmonious atmosphere.
2)Constant current driver guarantees product stability and long life span.
3)G24-2pin, G24-4pin, G23 and E27 bases are available.
4)6W,8W,10W and 12W power are available;
5)CE and RoHS certificates are available.
4.Product Specifications
Model | Power | Input Voltage | LED Qty | Luminous | CCT | CRI | PFC | Bean Angle |
LVP1203I-6 | 6W | 12pcs 5730SMD | 450- 570lm | 3500K 4000- 4500K 4700- 6700K | 83.6 | 0.89 |
Model | Power | Input Voltage | LED Qty | Luminous | CCT | CRI | PFC | Bean Angle |
LVP1203I-6 | 6W | 12pcs 5730SMD | 450- 570lm | 3500K 4000- 4500K 4700- 6700K | 83.6 | 0.89 | 100° | |
LVP1603I-8 | 8W | AC100-240V 50-60Hz | 16pcs 5730SMD | 723- 755lm | 81.4 | 0.92 | ||
LVP2003I-10 | 10W | AC100-240V 50-60Hz | 20pcs 5730SMD | 850- 950lm | 80.5 | 0.94 | ||
LVP2403I-12 | 12W | AC100-240V 50-60Hz | 24pcs 5730SMD | 1010- 1051lm | 83.7 | 0.96 |
Application
1. Illumination lighting for homes, offices, restaurants, supermarket, hotels, malls, warehouses, parking lots etc;
2. Replace incandescent, fluorescent and other traditional light sources.
Product Scene
Payment and Delivery
1. Payment term: T/T 100% payment in advance, or for over 10,000USD, TT 30% deposit after order confirmed, the balance after goods ready before shipping .
2.Delivery time : normally in 5-7 working days after deposit received .
3. Shipping port: Shenzhen , China
4.Discounts are offered based on order quantities
5.Logo: According to your requirement
6.Packaging: 1pc /gift box/white mail order box.
7.Shipping: By Express (EMS, DHL, UPS, ARAMEX), By Air or By Sea.
1. Your enquiry can be replied in 24 working hours;
2. Experienced staffs answer all your questions in fluent English;
3. OEM is available, and OEM sample can be finished within 7 days;
4. Exlusive solution can be provided to our customer by our well-trained and professional engineers and staffs.
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, we quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution i
ncluding re-call according to real situation.
