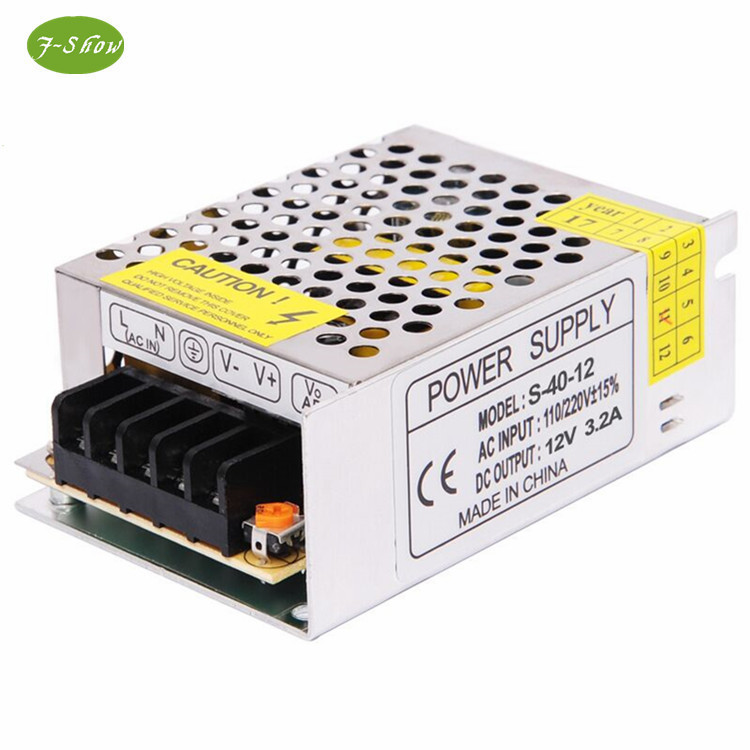

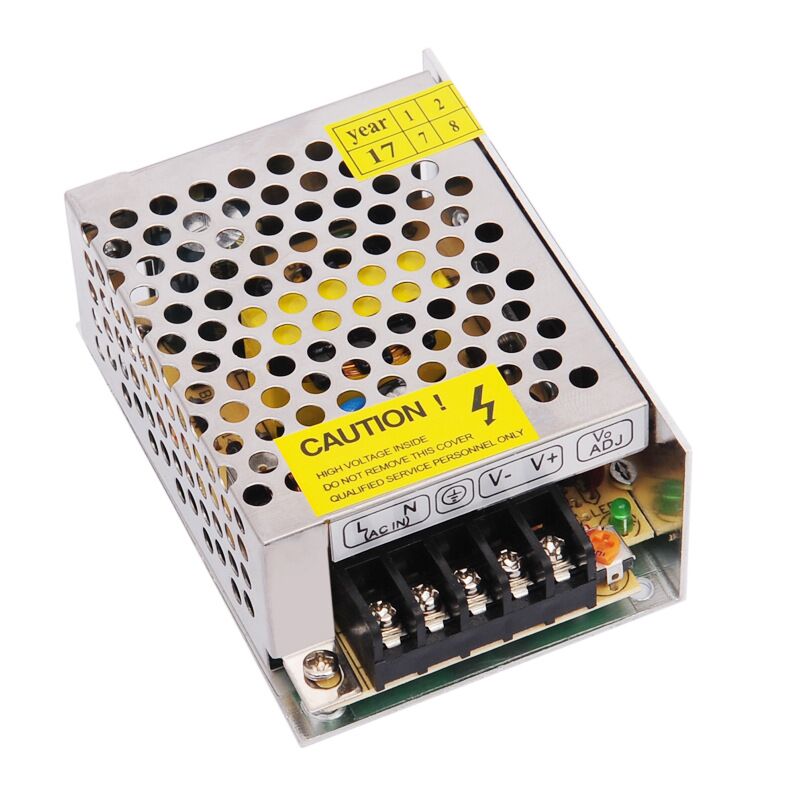

12 Volt 3.2 Amp DC Regulated Switching Power Supply LED 12V 3.2A 38W
Congratulations! You find a high quality LED Power supply manufacturer .
Application scope:
1. Home appliances : LED light, LCD Monitor, currency detector ,humidifier ,Access control,air purifier etc..
2. Rechargeable Electronic products: Battery Charger, hoverboard and massager etc.
3.Medical beauty care products: medical device, Dental descaler and Nail Machine etc.
4. Security & digtal products: CCTV camera, Xbox , Router ,DVR ,NVR, Laptops, printers, tablets etc.
| AC input Voltage: | AC 110V/220V ±15% |
| Input Current: | 0.5A/115V , 0.25A /230V |
| AC impulse current: | Cold-start current 13A/115V , 26A / 230V |
| DC output voltage: | 12V |
| DC output Power: | 40W |
| Rated output power : | 3.2A |
| Output Voltage error: | ±1% |
| Efficiency: | 85% |
| Ripple&noise: | 100mVp-P |
| Inlet stability: | ±0.5% |
| Load stability: | ±0.5% |
| Leakage current: | <0.5mA/240VAC |
| Over-load Protection: | 105% - 150% rated power, automatically recovery |
| Vibration: | 10500Hz,2G 10min./1cycle,Period for 60min,Each axes |
| Cooling method: | Neutral cooling air convection |
| working Temprature& humidity: | -20°C~+60°C /20-90%R.H (no frost) |
| Storage temprature &humidity: | -40°C~+85°C / 10-95%R.H(no frost) |
| Size: | 110*78*35mm |
| Certificates: | CE (EMC+LVD) , ROHS |
| Warranty: | 2 years |
| Package: | 1 bubble bag+1 white box, 50pcs/carton |
Highlights:
- International AC input range
- High efficiency,low working temperature
- Short circuit,overload,over-current protection
- 100% fully load burn-in test
- Built-in EMI filter, low ripple noise
- CE and Rohs approval,2 years warranty
- OEM and ODM is welcome
- Low cost, high reliability
Why Choose us?
1. Five research and development engineers
2. Seven-year ac adapter/Power supply manufacturing experience
3. Five-year exporting experience
4. 250000pcs monthly production with 3000 square meters workshop and 120 workers..
5. One-stop purchasing service is available
6. Accepting customized order
Our Exhibition:
Our Certificates:
Package: 1 white box, 50pcs /carton (can be customized).
Payment terms: T/T , Western Union, Paypal
Delivery time: within 7 work days for quantity below 1000pcs normally
Shipping way: by sea/ air/ DHL/ UPS/ Fedex/ TNT/ EMS/ China Post etc.
Package: customize package is welcome
OEM service: printing your logo on the power supply is welcome
Warranty: 2 years. All the defect power supplies (not man-made) will be replaced with your new order one by one.
Major Products:
| 1. 5V -36V AC /DC adapters for CCTV camera/3D printers/POS/hay mower etc. |
| 2. Laptop adapters for Macbook/ HP/Acer/Lenovo/IBM/Toshiba/Dell/Sony/Asus etc. |
| 3. LED Power supplies |
| 4. Printer adapters for HP/Epson etc. |
| 5. tablet chargers/ultrabook chargers |
1.Can we customize the package?
Yes, it"s no problem
2.Can we make the products with our own logo?
Yes,of course. printing logo is OK.
3.Can you accept OEM/ODM serice business?
Yes,we accept.
4.What is the payment terms?
Standard payment terms: T/T in advance. Small amount: Western union or Money Gramm.
For sample, paypal is OK
5.What is your MOQ?
50pcs/model.Also accept sample order,1 piece as sample is OK.
6.How long warranty do you offer?
Two Years
7.What"s the RMA?
5‰
8.How to solve the issue of defect items?
We offer relevant quantity new goods replacments together with next shippment.
9.How do you ship the order usually?
We ship the goods by sea for large quantity,by air or express for smaller quantity.
10.What is the lead time?
In 3-5days for small order, in 7-25days for large order.it depends on the stock and the order situation.
Need any help, welcome to contact with Ms Summer
