Home > Products > New Arrival RF remote control Led Solar Light Outdoor Solar Power Spotlight Garden Lawn Lamp Landscape Path Walkway Spot Lights

New Arrival RF remote control Led Solar Light Outdoor Solar Power Spotlight Garden Lawn Lamp Landscape Path Walkway Spot Lights

Click on the image to view the original image

Product：	views：9New Arrival RF remote control Led Solar Light Outdoor Solar Power Spotlight Garden Lawn Lamp Landscape Path Walkway Spot Lights
Branch：	WQF
Size：	30X18X15 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 20:59

Product Details

Overview

Quick Details

Input Voltage(V):: 6

Lamp Luminous Flux(lm):: 100

CRI (Ra>):: 80

Beam Angle(°):: 120

Working Temperature(℃):: -25 - 55

Working Lifetime(Hour):: 50000

Lamp Body Material:: Aluminum Alloy, Aluminum Alloy

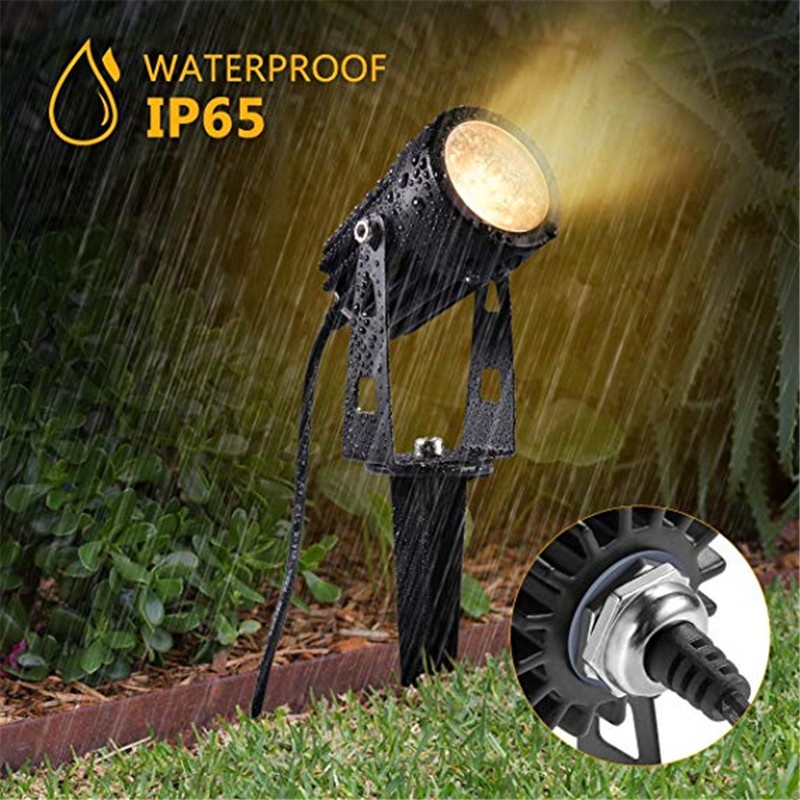

IP Rating:: IP65

Certification:: CE, EMC, FCC, LVD, RoHS

Place of Origin:: Guangdong, China

Brand Name:: WQF

Model Number:: QF-163 04

Application:: Garden

Light Source:: LED

Lamp Power(W):: 4.8

Product name:: RFSolar Garden Spotlight

Power:: 1W*4/400lm

Led Chip:: Epistar big power chip 2700-3000K

Solar Panel:: DC6V/4.8W

Battery:: 3.2V 6000mAh

Charging Time:: 6-8H

Working Time:: 15-30H

Cable:: 0.2M (main line)+3M (four sub-lines)

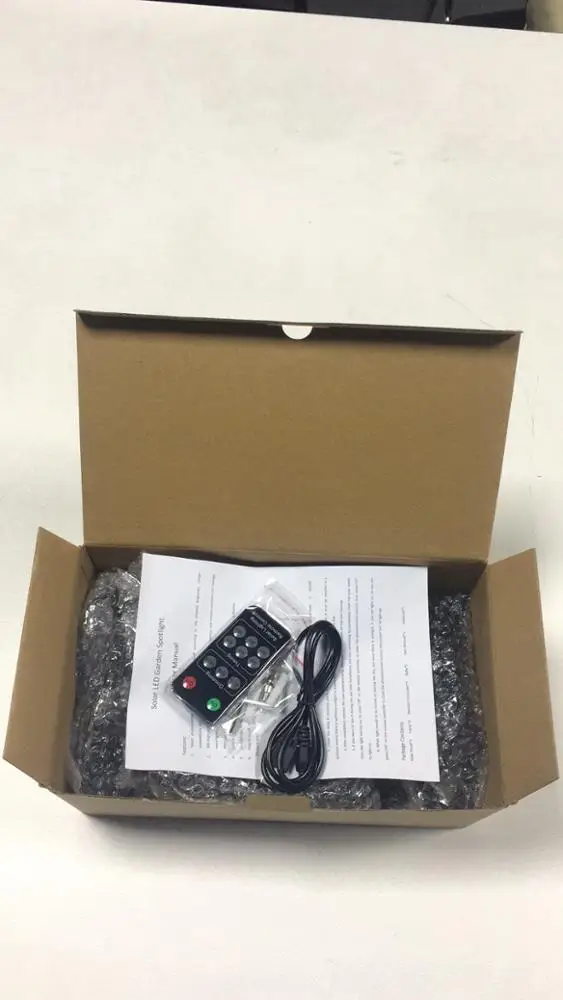

Packaging & Delivery

Selling Units:: Single item

Single package size:: 30X18X15 cm

Single gross weight:: 2.5 kg

Package Type:: 8pcs/CTN Outer Carton: 60*30*34.5cm G.W.: 17.5kg

Picture Example:

Lead Time:

Quantity(Set)	1 - 50	>50
Est. Time(days)	3	To be negotiated

New Arrival RF remote control Led Solar Light Outdoor Solar Power Spotlight Garden Lawn Lamp Landscape Path Walkway Spot Lights

Product Description

Parameters

1. Solar Panel: ABS+Polysilicon 270*140*70mm

2. Lawn Lamp: Aluminum alloy ¢43*85*250mm

3. Cables:0.2M (main line)+3.5M (two sub-lines)+2.5M(two sub-lines)

Solar Panel:

1. Polysilicon

2. Output Voltage: 6V

3. Output Current (max): 6000mA
4. Power: 4.8W

5. Charge Time: 6-8hrs

Battery:

1. Lithium iron phosphate Battery

2. Voltage/Capacity: 3.2V 6000mAh

3. Cell Resistance: <30MΩ
4. Overcharge Protection Voltage: 4.25V+/-0.05V

5. Over-discharge Protection Voltage:2.5V

LED Lawn Lamp:

1. Rated Voltage:3.2V

2. Rated Current: 500mA

3. Rated Power: 1W*4

4. CCT: 3000K/6000K /RGB

5. Lumens: 70LM*4

6. Working Time: 15H(100% brightness), 23H(75% brightness), 30H(50% brightness)

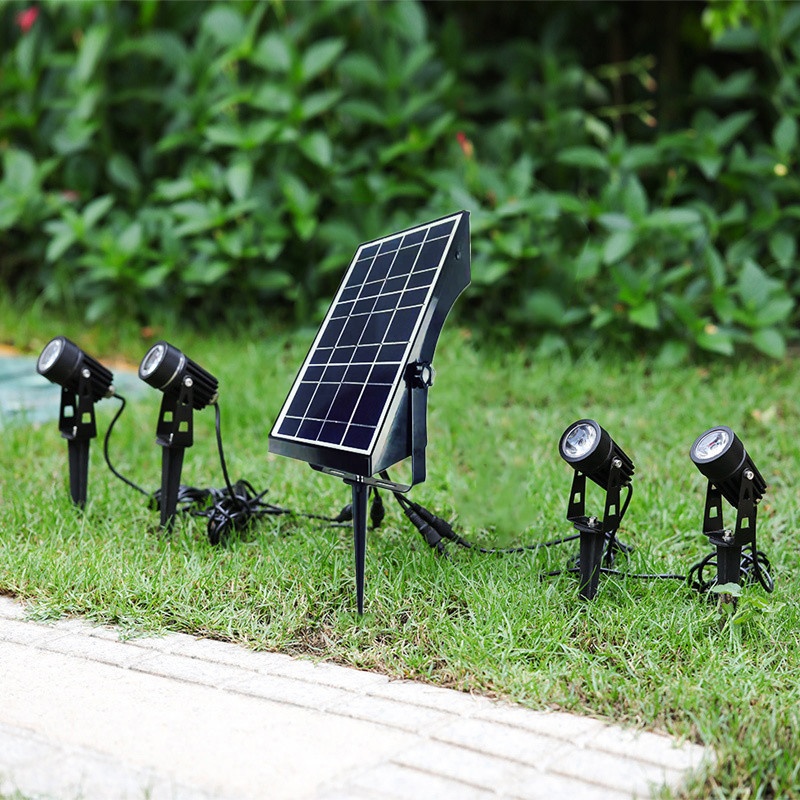

Photo Show

Features

1. Smart photosensitive control, automatically turn on&off according to the ambient brightness, charge automatically during daytime.

2. 360 degrees RF remote control at will, distance could reach up to 20 meters, one remote controller can manage many lights.

3. Manually turn off the remote controller to meet the need of daytime lighting.

4. Built-in high-quality lithium battery with high safety factor, good performance and long lifetime.

5. Low voltage, no electric shock hazard.

6. Easy to install, wall-mounted, or fix it in the ground, wide application.

Tips

1. Please install the solar panel to the places that have sufficient sunlight.

2. Since this product is charged by solar energy, If 2 consecutive days without sunlight and the lamp can’t light up, it is a normal situation.

3. Automatically light up at night, when bad weather and no lighting needs at night, please turn if off.

4. The default lighting brightness is 75% and timing is 6 hours, it is a normal status that the light will flicker when you set timing.

5. Charging time is determined by the intensity and duration of sunlight, the stronger the sunlight, the faster the charging speed will be, otherwise, it will be slow.

6. Lighting time depends on the selected brightness, the higher the brightness, the shorter the lighting time, on the contrary, lighting time will be longer.

7. When the battery voltage of the remote controller is insufficient and it doesn’t work, it is a normal phenomenon.

Application

Widely used for landscaping, scenic spots, garden, park, lawn, courtyard and other places as decorative lighting.

Usage

1. Install the lamp at required place, then fix the solar panel on the wall or ground. It must be installed in a position where there is sufficient sunlight to ensure that it can be properly charged every day.

2. After installation, connect the solar panel and lamp, then turn on the power on the rear housing.

3. If you want to test it during the day after installation, just use something to completely cover the solar panel, then the light will be on. Or press”Off” on the remote controller to close the photosensitive control, then press”On” to light up.

4. When light needs to be turned on during the day, but since there is sunlight, it can not light up, so you can press”Off” on the remote controller to close the photosensitive control, then press”On” to light up.
