- Place of Origin:
- Guangdong, China
- Brand Name:
- WQF
- Model Number:
- QF-163 02
- Application:
- Garden
- Product name:
- Solar Lawn Lamp
- Power:
- 1W*2/200lm
- Led Chip:
- Epistar big power chip 2700-3000K
- Solar Panel:
- DC6V/2.5W
- Battery:
- 2200mAh 0.35A
- Charging/Working Time:
- 7H/6H
- Sensing Angle:
- 120
- IP Rating:
- IP65, IP65
- Cable:
- 0.2M main line+3M two sublines AntiUV waterpoof plug
- Material:
- ABS+Polysilicon + Al Alloy
- Light Type:
- Solar
- Voltage:
- 3.7V
- Rated Power:
- 2w
- Supply Ability:
- 150000 Set/Sets per Month Sample for Rechargeable Solar Lawn Lamp is available
- Packaging Details
- Inner Box: 200*175*100mm
G.W.:0.87kg
12pcs/CTN
Outer Carton: 55.5*41.5*22cm
G.W.:10.8kg
- Port
- Shenzhen

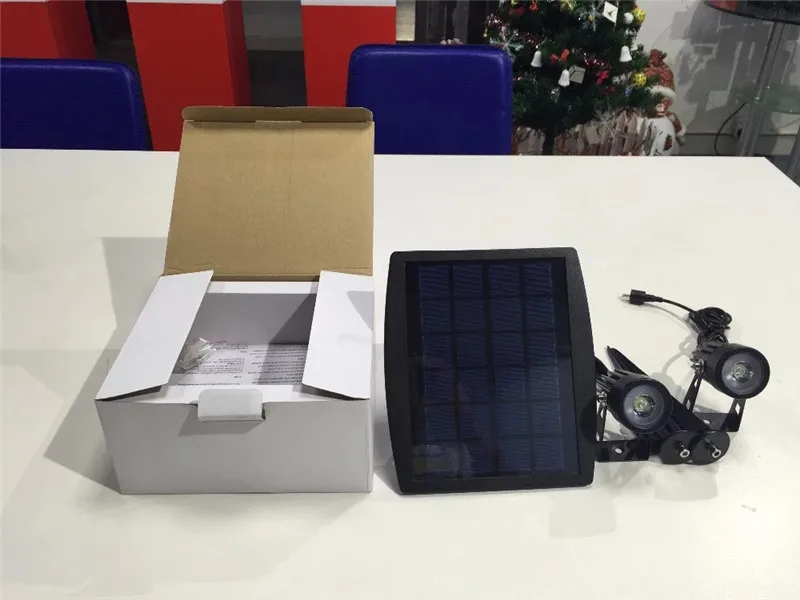

- Picture Example:
![package-img]()
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 200 >200 Est. Time(days) 3 To be negotiated
unique metal garden lighting 1w 2w 3w 4w ip65 outdoor solar led spotlight
Parameters
1. Solar Panel: ABS+Polysilicon 173*193mm
2. Lawn Lamp: Aluminum alloy 43*85*250mm

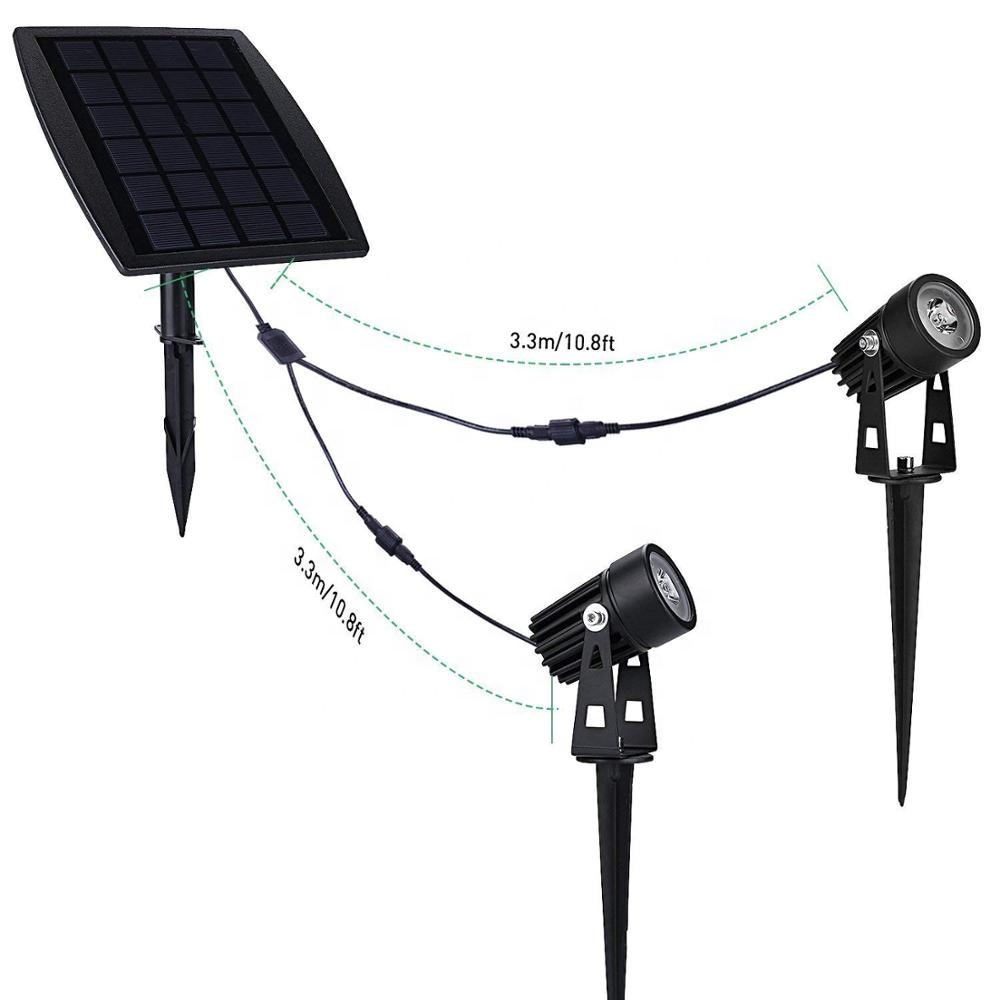

3. Cables:0.2M (main line)+3M (two sub-lines)
Solar Panel:
1. Polysilicon
2. Output Voltage: 6V
3. Output Current (max): 420mA
4. Power: 2.5W
5. Charge Time:8hrs
Lithium Battery:
1. Lithium battery 18650*1
2. Voltage/Capacity: 3.7V 2200mAh
3. Cell Resistance: <30MΩ
4. Overcharge Protection Voltage: 4.25V+/-0.05V
5. Over-discharge Protection Voltage:2.5V
LED Lawn Lamp:
1. Rated Voltage:3.2V
2. Rated Current: 500mA
3. Rated Power: 0.8W*2
4. CCT: 3000K/6000K /RGB
5. Lumens: 70LM*2
6. Working Time: 6hrs

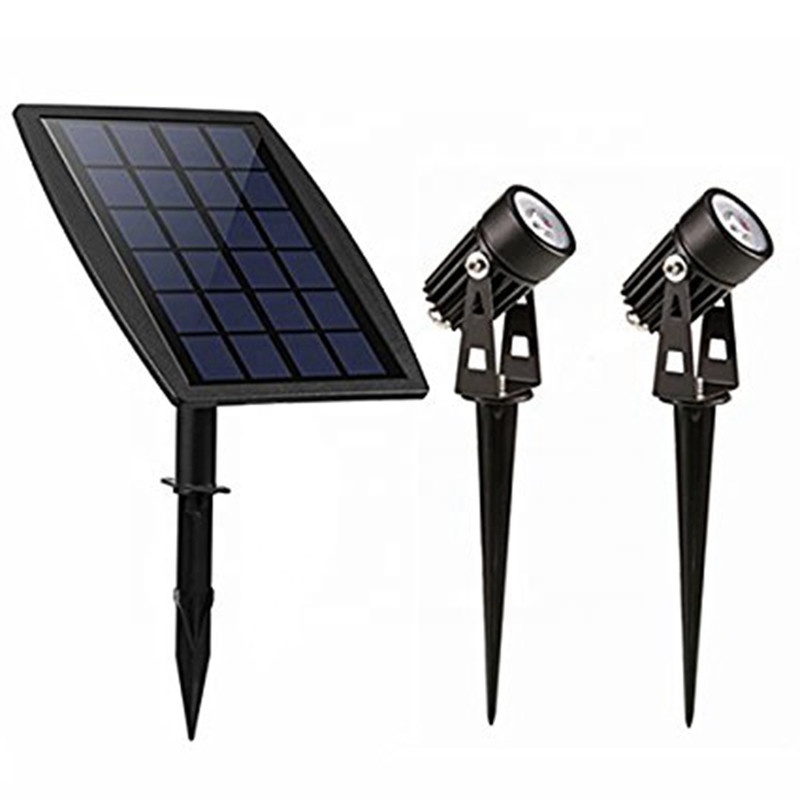

Photo Show
Features
Photovoltaic new energy, eco-friendly.
2 lamps with spike, adjustable projection angle.
Super bright LEDs, high efficient lens, perfect decorative effect.
Built-in 3.7V/2200mAh Lithium battery, 6hrs working time (2 lamps lit at the same time).
High efficient solar panel, intelligent control, automatically charge during the day and discharge at night.
Over-voltage&over-current IC control protection.
The solar panel comes with a spike and holder, ideal for park, lawn, garden, building exterior wall installation at will.
Practical and novel design.
Notes
1. IP65 waterproof grade, please do not install in low-lying water places, it is forbidden to use underwater.
2. If long time no use, please firstly put the solar panel under the sunlight to charge, then the lamps will work normally.
3. Charge this product in time if not used for 3 months above.
4. The spike is sharp and make sure that it is firmly fixed. Do not let the children play it in order to avoid personal injury.
Usage
1. Fixed by screws or spike, adjust the solar panel to a 45-degree direction for sunlight exposure.
2. Install the lawn lamps at relevant places that you want.
3. Turn on switch “ON”, it goes to the state of charging and discharging.
4. Automatically charge under sunlight at daytime and discharge in the evening.
Application
Widely used for landscaping, scenic spots, garden, park, lawn, courtyard and other places as decorative lighting.
Our New hot products:
1. New energy Solar light QF-163, QF-165, QF-168, QF-169, QF-178, QF-181,QF-188
2. New energy salt water light QF-167, QF-173, QF-177,QF-187, QF-189
3. Night light QF-175, QF-185, QF-196 Cabinet light QF-171
Please do not hesitate to contact us should you need any assistance.
SHENZHEN WOQINFENG ELECTRONICS CO., LTD.
Founded in 2011, is an innovative enterprise that involved in R&D,production,sales.Main products include: home portable lighting products, solar lighting products, new energy seawater powered lighting products. At present, we have obtained more than 20 patents for utility models and appearance designs. All products are exported to Europe, America,Southeast Asia, Africa and other regions in the world. Our company has passed ISO9001:2008 International Quality System Certification. We got ETL, TUV, SAA, FCC, CE, RoHS certifications for our products. We own a professional and experienced R&D team, unique appearance designs, perfect quality control system. Wefollow the management philosophy of " specialty, integrity, service and win-win" to provide you with high-quality products, reasonable prices, accurate delivery date, perfectafter-sales service, and OEM/ODM service.
Package Contains
1. Solar Panel*1
2. Lamp*2
3. Screw*2
4. Plastic Bolt*2
5. Spike*3
6. User Manual*1
Inner Box: 200*175*100mm
G.W.:0.87kg
12pcs/CTN
Outer Carton: 55.5*41.5*22cm
G.W.:10.8kg
Shipping
1. OEM/ODM service
Our professional R&D dept could develop different products for different requirements.
2. Quality Control
We have strict quality control system and professional QC team. 24hrs aging test for all products before delivery.
3. Customized packaging service
No matter the inner box or master carton, we could provide customized packaging service for you according to your order quantity.
4. Warranty
We offer warranty for all products.
