Home > Products > Stainless Steel Outdoor Solar LED Stake Light Path Garden Sensor Lamp Landscape Lighting

Stainless Steel Outdoor Solar LED Stake Light Path Garden Sensor Lamp Landscape Lighting

Click on the image to view the original image

Product：	views：2Stainless Steel Outdoor Solar LED Stake Light Path Garden Sensor Lamp Landscape Lighting
Branch：	WQF
Size：	30X20X15 cm
Unit Price：	Negotiated
Min.Order：
Supply：
Delivery：	Shipment within days since the date of payment
Valid until：	Long Term
Updated on：	2019-10-16 21:00

Product Details

Overview

Quick Details

Input Voltage(V):: DC6V

Lamp Luminous Flux(lm):: 400

CRI (Ra>):: 80

Beam Angle(°):: 360

Working Temperature(℃):: -25 - 55

Working Lifetime(Hour):: 70000

Lamp Body Material:: Aluminum Alloy

IP Rating:: IP65

Certification:: CE, EMC, FCC, LVD, RoHS

Place of Origin:: Guangdong, China

Brand Name:: WQF

Model Number:: QF-163 04

Application:: Garden

Light Source:: LED, LED

Warranty(Year):: 1-year

Item Type:: Garden Lights

LED Light Source:: Epistar

Power:: 1W*4/400lm

Led Chip:: Epistar big power chip 2700-3000K

Solar Panel:: DC6V/4.8W

Battery:: 3.2V 6000mAh

Charging Time:: 6-8H

Sensing Angle:: 360°

Cable:: 0.2M (main line)+3.5M (two sub-lines)+2.5M(two sub-lines)

Packaging & Delivery

Selling Units:: Single item

Single package size:: 30X20X15 cm

Single gross weight:: 2.5 kg

Package Type:: 8pcs/CTN Outer Carton: 62*32*35cm G.W.:18kg

Picture Example:

Lead Time:

Quantity(Set)	1 - 100	>100
Est. Time(days)	5	To be negotiated

Stainless Steel Outdoor Solar LED Stake Light Path Garden Sensor Lamp Landscape Lighting

Product Description

Parameters

1. Solar Panel: ABS+Polysilicon 270*140*70mm

2. Lawn Lamp: Aluminum alloy ¢43*85*250mm

3. Cables:0.2M (main line)+3.5M (two sub-lines)+2.5M(two sub-lines)

Solar Panel:

1. Polysilicon

2. Output Voltage: 6V

3. Output Current (max): 6000mA
4. Power: 4.8W

5. Charge Time: 6-8hrs

Lithium Battery:

1. Lithium iron phosphate Battery

2. Voltage/Capacity: 3.2V 6000mAh

3. Cell Resistance: <30MΩ
4. Overcharge Protection Voltage: 4.25V+/-0.05V

5. Over-discharge Protection Voltage:2.5V

LED Lawn Lamp:

1. Rated Voltage:3.2V

2. Rated Current: 500mA

3. Rated Power: 1W*4

4. CCT: 3000K/6000K /RGB

5. Lumens: 70LM*4

6. Working Time: 15H(100% brightness), 23H(75% brightness), 30H(50% brightness)

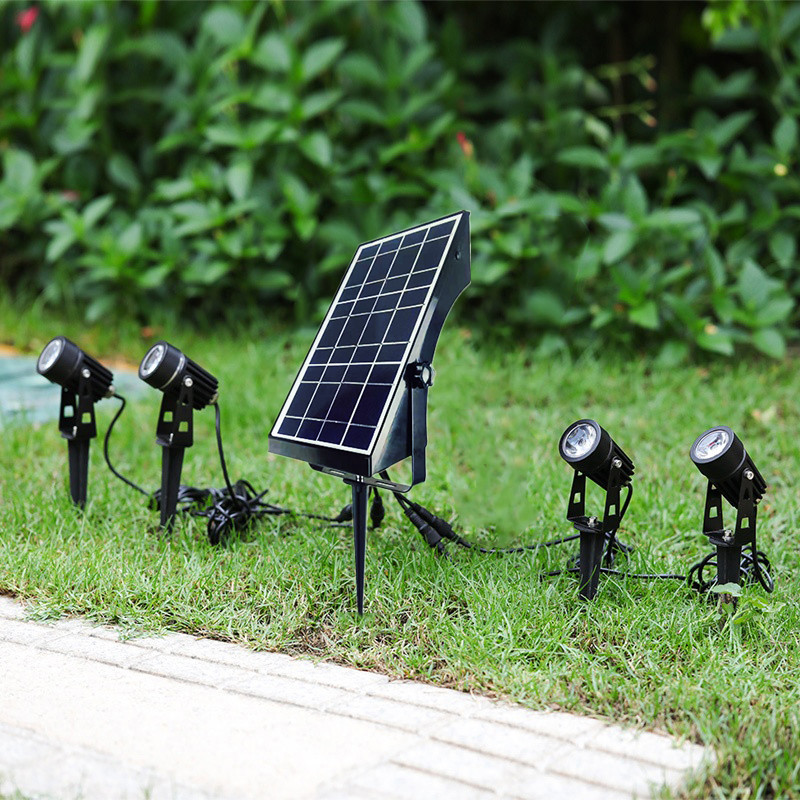

Photo Show

Features

Photovoltaic new energy, eco-friendly.
Photovoltaic new energy, eco-friendly.
Super bright LEDs, high efficient lens, perfect decorative effect.
360-degree RF remote control, distance up to 20 meters.
Remote function: on/off, brightness adjustment, timer control and memory working.
Built-in 3.7V/6000mAh Lithium battery, 6hrs working time
(4 lamps lit at the same time).
High efficient solar panel, intelligent control, automatically
charge during the day and discharge at night.
Over-voltage and over-current IC control protection.
The solar panel comes with a spike and holder, ideal for park, lawn, garden, building exterior wall installation at will.

Tips

1. Please install the solar panel to the places that have sufficient sunlight.

2. Since this product is charged by solar energy, If 2 consecutive days without sunlight and the lamp can’t light up, it is a normal situation.

3. Automatically light up at night, when bad weather and no lighting needs at night, please turn if off.

4. The default lighting brightness is 75% and timing is 6 hours, it is a normal status that the light will flicker when you set timing.

5. Charging time is determined by the intensity and duration of sunlight, the stronger the sunlight, the faster the charging speed will be, otherwise, it will be slow.

6. Lighting time depends on the selected brightness, the higher the brighness, the shorter the lighting time, on the contrary, lighting time will be longer.

7. When the battery voltage of the remote controller is insufficient and it doesn’t work, it is a normal phenomenon.

Application

Widely used for landscaping, scenic spots, garden, park, lawn, courtyard and other places as decorative lighting.

Usage

1. Install the lamp at required place, then fix the solar panel on the wall or ground. It must be installed in a position where there is sufficient sunlight to ensure that it can be properly charged every day.

2. After installation, connect the solar panel and lamp, then turn on the power on the rear housing.

3. If you want to test it during the day after installation, just use something to completely cover the solar panel, then the light will be on. Or press "Off" on the remote controller to close the photosensitive control, then press "On" to light up.

4. When light needs to be turned on during the day, but since there is sunlight, it can not light up, so you can press "Off" on the remote controller to close the photosensitive control, then press "On" to light up.
