Click on the image to view the original image
- Input Voltage(V):
- 6V
- Lamp Luminous Flux(lm):
- 400
- CRI (Ra>):
- 80
- Beam Angle(°):
- 40
- Working Temperature(℃):
- -15 - 50
- Working Lifetime(Hour):
- 30000
- Lamp Body Material:
- Aluminum
- IP Rating:
- IP65
- Certification:
- CE, RoHS
- Place of Origin:
- Guangdong, China
- Brand Name:
- WQF
- Model Number:
- QF-163 04
- Application:
- For garden park path lighting
- Light Source:
- LED
- LED Light Source:
- Epistar
- Product Name:
- Solar LED Garden Spotlight
- Model No.:
- QF-163 04
- Solar Panel:
- 6V /4.8W
- Panel Size:
- 270*140*70mm
- Battery Capacity:
- 6000mAh/3.2V
- LED Color:
- WW/CW/Green

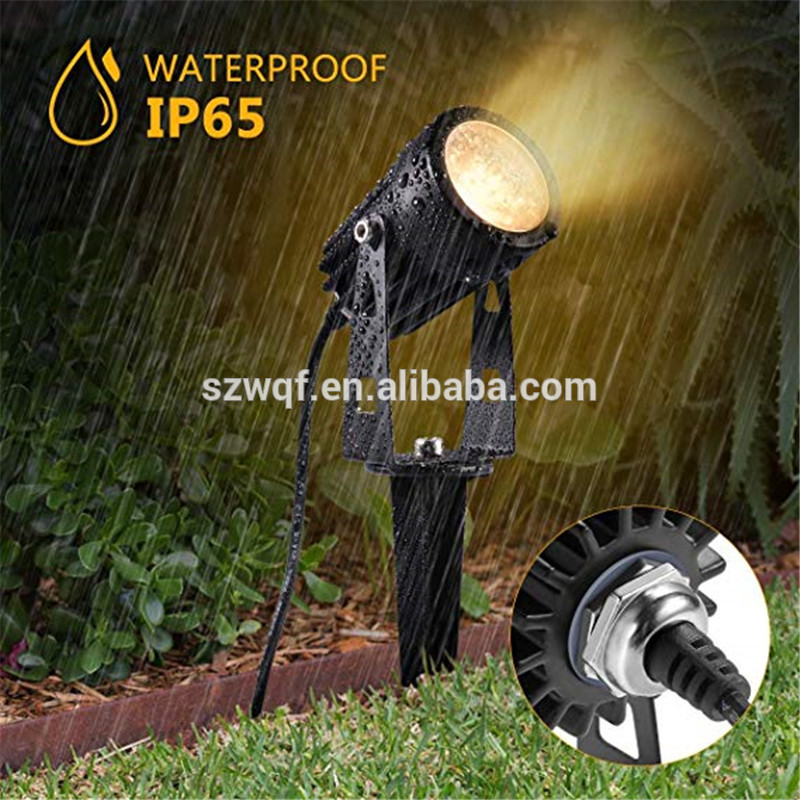

- IP Grade:
- IP65 Water Proof
- Lamp Power:
- 1W*4
- Supply Ability:
- 50000 Set/Sets per Month
- Packaging Details
- Inner Box: 285*165*128mm
G.W./Piece: 2.1kg
8pcs/CTN
Outer Carton:
60*30*34.5cm
G.W./CTN: 17.5kg
- Port
- SHENZHEN

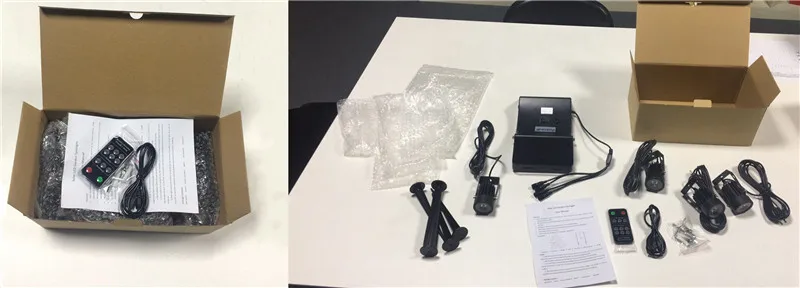

- Picture Example:
![package-img]()
- Lead Time:
Quantity(Sets) 1 - 100 101 - 1000 1001 - 2000 >2000 Est. Time(days) 7 10 15 To be negotiated

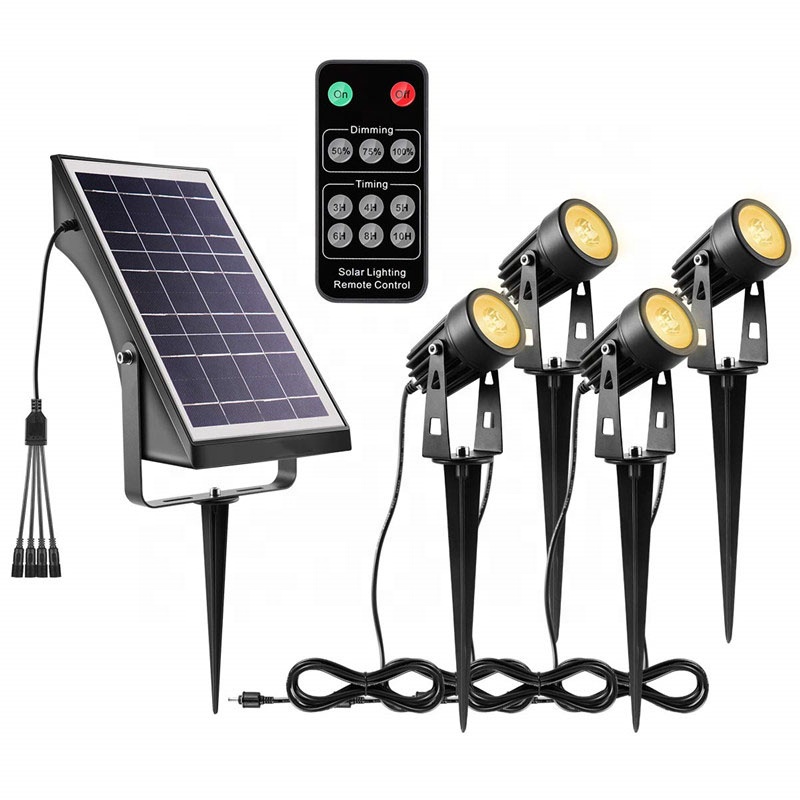

solar energy powered led stake light warm white spotlights
Solar Panel:
1. Poly 4.8W
2. Voltage: DC6V
3. Product Size: 270*140*70mm
4. Photosensitive Control
5. Output Lead: 0.5m
Battery:
1. Lithium iron phosphate battery
2. Voltage/Capacity: 3.2V /6000mAh
3. Charge&Discharge Time: 8hrs/15-30hrs according to different brightness level.
Spotlights:
1. Rated Power: 1W*4
2. CCT/Light Color: 3000K/6000K /Green/Blue
3. Lumens: 100lm*4
4. Product Size: ¢43*85*250mm
5. Cable Length: 2.5m*2+3.5m*2
Structure&Size:
Features:
1. Smart photosensitive control, automatically turn on&off according to the ambient brightness, charge automatically during daytime.
2. 360 degrees RF remote control at will, distance could reach up to 20 meters, one remote controller can manage many lights.
3. Manually turn off the remote controller to meet the need of daytime lighting.
4. Built-in high-quality lithium battery with high safety factor, good performance and long lifetime.
5. Low voltage, no electric shock hazard.
6. Easy to install, wall-mounted, or fix it in the ground, wide application.
How to use with a RF remote controller:
1. Install the lamp at required place, then fix the solar panel on the wall or ground. It must be installed in a position where there is sufficient sunlight to ensure that it can be properly charged every day.
2. After installation, connect the solar panel and lamp, then turn on the power on the rear housing.
3. If you want to test it during the day after installation, just use something to completely cover the solar panel, then the light will be on. Or press”Off” on the remote controller to close the photosensitive control, then press”On” to light up.
4. When light needs to be turned on during the day, but since there is sunlight, it can not light up, so you can press”Off” on the remote controller to close the photosensitive control, then press”On” to light up.
Application:
For landscape, scenic spots, garden, park, lawn, courtyard and other places as decorative lighting.
Shipping by DHL /UPS/FedEx/TNT, etc for samples and small orders. Shipping by air or by sea for bulk order.
Packaging:
Inner Box: 285*165*128mm
G.W./Piece: 2.1kg
8pcs/CTN
Outer Carton:
60*30*34.5cm
G.W./CTN: 17.5kg
SHENZHEN WOQINFENG ELECTRONICS CO., LTD.
Founded in 2011, is an innovative enterprise that involved in R&D,production,sales.Main products include: home portable lighting products, solar lighting products, new energy seawater powered lighting products. At present, we have obtained more than 20 patents for utility models and appearance designs. All products are exported to Europe, America,Southeast Asia, Africa and other regions in the world. Our company has passed ISO9001:2008 International Quality System Certification. We got ETL, TUV, SAA, FCC, CE, RoHS certifications for our products. We own a professional and experienced R&D team, unique appearance designs, perfect quality control system. Wefollow the management philosophy of " specialty, integrity, service and win-win" to provide you with high-quality products, reasonable prices, accurate delivery date, perfectafter-sales service, and OEM/ODM service.
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than 1000pcs.
Q3. Do you have any MOQ limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 year warranty.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution
including re-call according to real situation.
