Polysilicon portable mini solar kits led outdoor wall light luces solares solar lamps for garden and home
Product Features
● Photo voltaic new energy, Eco-friendly.
● 2 bulbs, each is equipped with a hook, can be controlled by independent switch.
● Super bright LEDs, milky PC cover, sof light beam, no glare.
● Built-in 3.7V/2200mAh Lithium batery, 6hrs working tme (2 bulbs lit at the same tme).
● High efficient solar panel, intelligent control, automatically charge during the day and discharge at night.
● Over-voltage&over-current IC control protection.

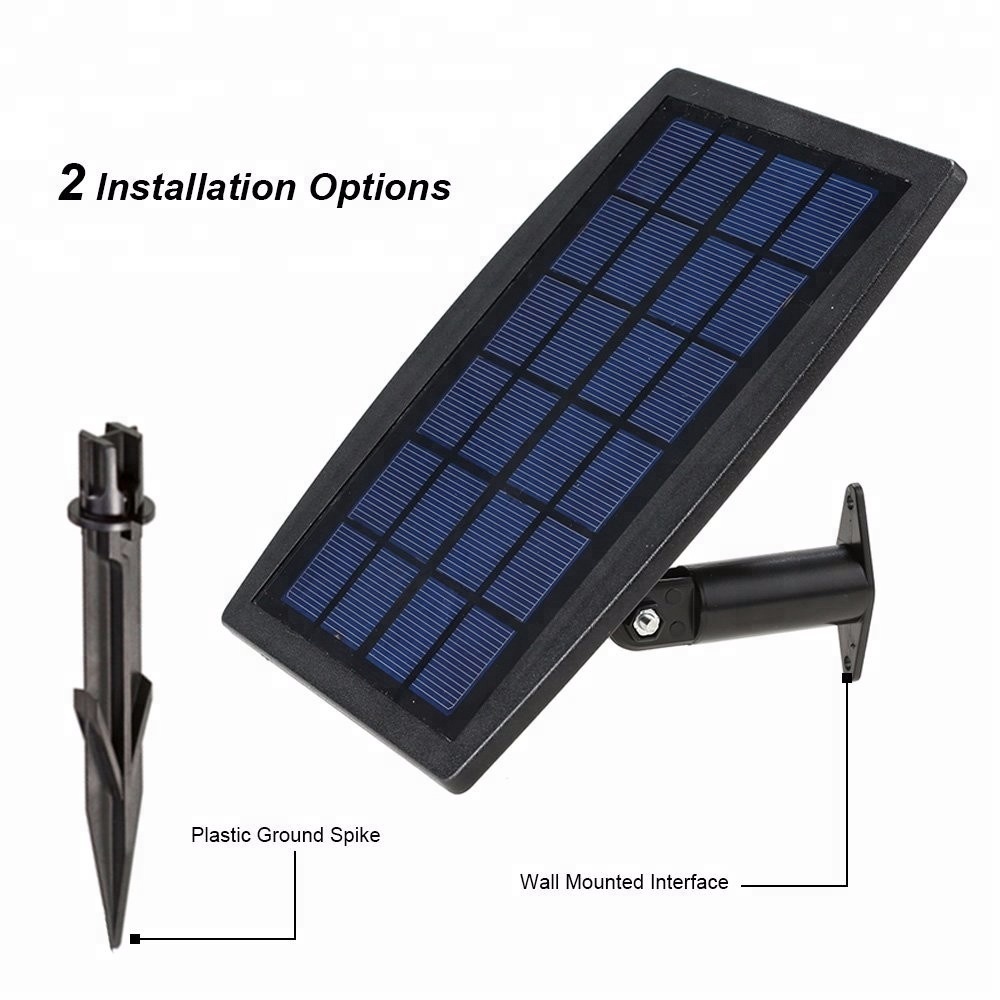

● The solar panel comes with a spike and holder, ideal for lawn, garden, building exterior wall installation at will.
● Practical and novel design

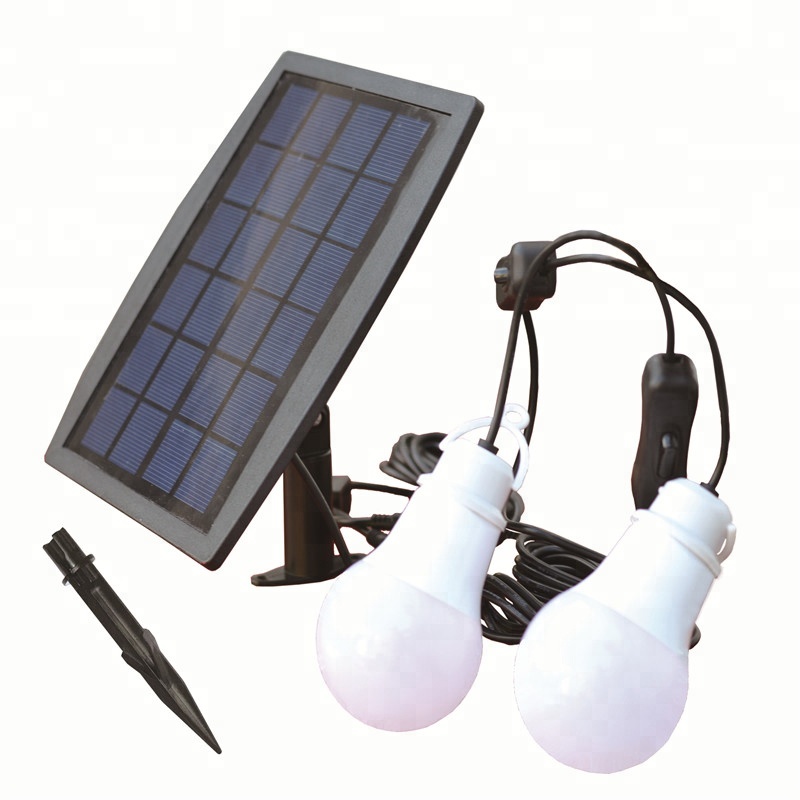

This product is consist of one solar panel with battery and 2 LED bulbs.
2. LED Bulb: ABS+PC Ø62*104mm
3. Cables:2M (main line)+1.5M /3M (two sub-lines)
LED Bulbs specification:
Solar Panel
2.5W poly-silicon solar panel, with improved solar panel, the conversion rate of light energy into electrical energy is up to 17%, which greatly shorten the charging time.
Charging time for 2200mAh battery is around 8 hours
ON/OFF Switch
Turn on switch "ON", it goes to the state of charging and discharging.
The solar panel will automatically charge under sunlight at daytime and discharge in the evening
Battery
1. Lithium battery 18650*1
2. Voltage/Capacity: 3.7V 2200mAh
3. Cell Resistance: <30MΩ
4. Overcharge Protection Voltage: 4.25V+/-0.05V
5. Over-discharge protection Voltage
6. Can be charged for over 1000 times
LED Bulbs
1. Rated Voltage:3.2V
2. Rated Current: 500mA
3. Rated Power: 0.8W*2
4. CCT: 6000-6500k
5. Lumens: 80LM*2
6. Working Time: 6hrs
independent switches
Each bulb is controlled by an independent switch. Very convenient and humanized design
Suitable for electricity shortage regions and indoor emergency lighting. Such as bedroom, study room, siting room, school, etc.
SHENZHEN WOQINFENG ELECTRONICS CO., LTD.
Founded in 2011, is an innovative enterprise which has its own R&D team, production lines, marketing and sales team.
Our main products include:
Home emergency lighting like our Multi-functional LED Bulb QF-168, Multi-functional Portable LED Lamp QF-169, etc.
Solar energy lighting products like Solar Powered Bulb Kit QF-178/QF-168B etc.
New energy seawater powered lights like QF-167/QF-173, etc.
Covering an area of nearly 6000 square meters, we have 8 production lines and 4 aging test lines with monthly capacity of 150000-300000pcs. Most of our products have the certificates CE RoHS FCC SAA and so on for European countries and American countries. Now our new products with unique structures and designs are well-received by our customers all over the world. We are always dedicated to manufacturing innovative and unique lighting products for people to make their daily life better.
We accept OEM and ODM order, we believe that our professionalism could meet all your requirements and make you satisfactory. We are always on the road, to practise our brand faith and commitment to reach a win-win with all customers.
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
