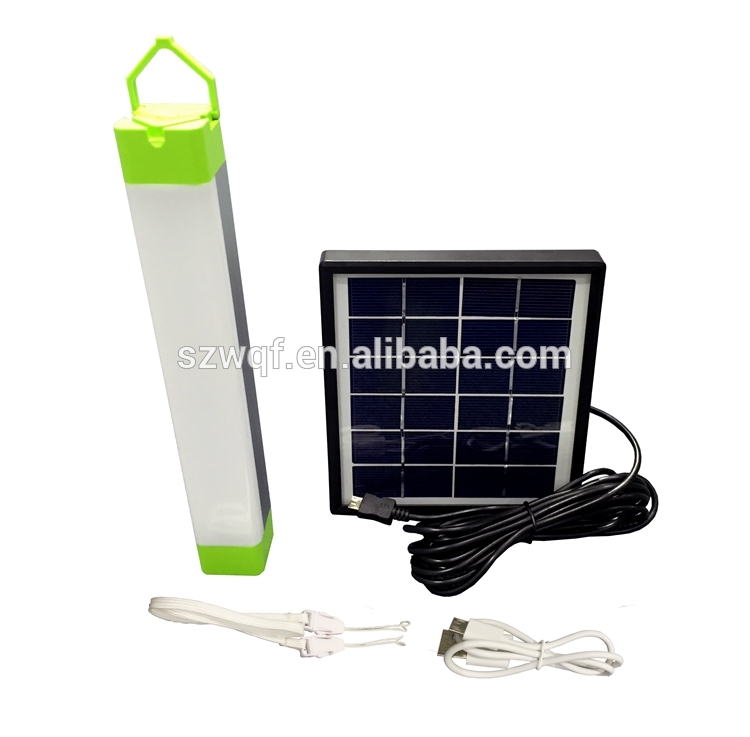

portable led solar powered fishing light
Click on the image to view the original image
Product： views：2portable led solar powered fishing light
Branch： WQF
Size： 4X4X27 cm
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 21:07
  Negotiated
Product Details
Overview
Quick Details
Place of Origin:
Guangdong, China
Brand Name:
WQF
Model Number:
QF-169
Bulb Type:
LED
Battery Type:
Li-ion, 3.6V 4000mAh Rechargeable Battery
Material:
aluminum + plastic
Usage:
Camping
Certification:
CE ROHS FCC
Specifications:
5W/8W
Product name:
Rechargeable Led Emergency Light
Input Voltage:
DC 5V
LED:
SMD2835
Size:
22CM/32CM
Function:
emergency/power bank /rechargeable
Charge time:
14 Hours
Emergency Time:
6-12 hours
Color:
red/green/blue

Packaging & Delivery

Selling Units:
Single item
Single package size:
4X4X27 cm
Single gross weight:
0.5 kg
Package Type:
each in inner box , 100 pieces/carton
Lead Time:
2
Specification
Specification
Model NO.
QF-169B2
Rated Power
5W
Product Size
32*32*220mm
LED Chip
51 pcs Epistar SMD 2835
Battery
2600mAh Lithium Battery
CCT
8000K
Lumen
400 lm(full light)
Solar Panel
6V, 1.8WPolycrystalline silicon solar panel
Model No.
QF-169A2
QF-169B2
QF-169A3
QF-169B3
LED Lamp Size
32*32*220mm
32*32*220mm

32*32*320mm

32*32*320mm

LED Chip Qty.
51pcs SMD 2835
51pcs SMD 2835
75pcs SMD 2835
75pcs SMD 2835
Battery Capacity
2600mAh
2600mAh
4000mAh
4000mAh
Rated Power
5W
5W
8W
8W
Lumen
400 lumen
400 lumen
640 lumen
640 lumen
Solar Panel or Not
No
Yes
No
Yes
Charging Time
9Hrs
9Hrs
14Hrs
14Hrs
Working Time
6Hrs
Input Voltage
DC 5V
End Cap Color
Blue/ White/Green
CCT
8000K
Switch
Three-way switch button
CRI
80Ra
Beam Angle
120 degree
Ambient Temp.
-40-45℃
Battery Lifetime
Charging over 1000 times
Solar Panel Cable Length
3 meters
Solar Panel
Polycrystalline silicon
Solar Panel Size
140*130*17mm

Solar Panel Power(Max)
1.8W
Solar Panel Current(Max)
0.3A
Solar Panel Voltage(Max)
6V
Product Description

Design Features:





1. Unique and elegant appearance

2. Concealed hook,easy to carry

3. NdFeB magnet

4. End cap color: Green/ Bulb /White

5. Three-way switch, anti wrong touching design

PC cover





High quality imported PC Cover, 80% Light Transmission，creates even and gentle light effect, no glare

no dark spots and uniform luminance

Housing Material




6063 Aluminum,commonly used for aluminium
extrusion. It allows complex shapes to be formed
with very smooth surfaces fit for anodizing and so
is popular for visible architectural applications

LED Chip


Epistar SMD 2835


80Ra, 8000K, over 50000 hours life time.

5W with 51pcs SMD and 7W with 75pcs SMD.

no glare,no dark spots and uniform luminance



Battery





1. Built-in 3.7V Lithium battery
2. 5W with 2600mAh and 8W with 4000mAh capacity
3. Battery Lifetime: can be charged for over 1000 times
4. MSDS passed

Driver






Smart driver inside, overvoltage & overcurrent IC protection to ensure safety.

Installation Process
Applications
Certifications
Company Information

There are many hundreds of LED bulbs on the market, so why would you chose SZWQF?



Inflated claims about lifespan and colour quality of cheap LED’s have led to some people being disappointed in the product and unwilling to invest further in the technology. But not all LED’s are born equal. SZWQF has spent 7 years sourcing the very best components and design to bring you a quality product you can rely on, at a reasonable price.

FAQ

Q1. Can I have a sample order for led light?

A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?

A:Sample needs 1-2 days, mass production time needs 1-2 weeks for order quantity more than 500pcs

Q3. Do you have any MOQ limit for led light order?

A: Our MOQ is 50 pcs. Sample orders acceptable

Q4. How do you ship the goods and how long does it take to arrive?

A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for led light?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on led light product?

A: Yes.We have a laser machine. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 years warranty to this multi functional portable led lamp.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less

than 0.2%.

Secondly, during the guarantee period, we will send new lights with new order for small quantity. For

defective batch products, we will repair them and resend them to you or we can discuss the solution i

ncluding re-call according to real situation.
