1. Unique and elegant appearance
2. Concealed hook,easy to carry
3. NdFeB magnet
4. End cap color: Green/ Bulb /White
5. Five-way switch, anti wrong touching design
Overview
Quick Details
- Place of Origin:
- Guangdong, China
- Brand Name:
- WQF
- Bulb Type:
- LED
- Battery Type:
- Lithium-ion, 3.7V 2600mAh LithiumRechargeable Battery
- Material:
- Aluminum and ABS Plastic
- Usage:
- Camping
- Certification:
- CE ROHS FCC
- Specifications:
- 5W
- Warranty(Year):
- 1-year
- Product name:
- multi function portable led tube
- Input Voltage:
- DC 5V
- LED Type:
- Epistar SMD2835
- Product Length:
- 22CM
- Charge time:
- 4 Hours
- Working Time:
- 6-18 hours
- End Cap Color:
- Blue/ Green/ White
- LED Driver:
- Smart driver with IC protection
- Application:
- emergency/power bank /rechargeable
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 4X4X28 cm
- Single gross weight:
- 0.22 kg
- Package Type:
- 50pcs/CTN Outer Carton: 56*21*21cm G.W.:9kg
- Picture Example:
![package-img]()
- Lead Time:
Quantity(Piece) 1 - 200 >200 Est. Time(days) 2 To be negotiated
Specification
Specification | ||
Model NO. | QF-169 | |
Power | 3/5/8W | |
CRI | 80Ra | |
LED Chip | Epistar SMD 2835 | |
Battery | Lithium Battery | |
CCT | 8000K | |
Lumen | 400 lm(full light) | |
Solar Panel | 6V, 1.8WPolycrystalline silicon solar panel(not included) | |
Working Time | 5-18Hrs | Input Voltage | DC 5V |
End Cap Color | Blue/ White/Green | CCT | 8000K |
Switch | Five-way switch button | CRI | 80Ra |
Beam Angle | 120 degree | Ambient Temp. | -40-45℃ |
Battery Lifetime | Charging over 1000 times | Solar Panel Cable Length | 3 meters |
Solar Panel | Polycrystalline silicon | Solar Panel Size | 140*130*17mm |
Solar Panel Power(Max) | 1.8W | Solar Panel Current(Max) | 0.3A |
Solar Panel Voltage(Max) | 6V |
Product Description
Design Features:
PC cover
High quality imported PC Cover, 80% Light Transmission,creates even and gentle light effect, no glare
no dark spots and uniform luminanceHousing Material
6063 Aluminum,commonly used for aluminium
extrusion. It allows complex shapes to be formed
with very smooth surfaces fit for anodizing and so
is popular for visible architectural applications
LED Chip
Epistar SMD 2835
80Ra, 8000K, over 50000 hours life time.
5W with 51pcs SMD and 8W with 75pcs SMD.
no glare,no dark spots and uniform luminance
Battery
1. Built-in 3.7V Lithium battery
2. 5W with 2600mAh and 8W with 4000mAh capacity
3. Battery Lifetime: can be charged for over 1000 times
4. MSDS passed
Driver
Smart driver inside, overvoltage & overcurrent IC protection to ensure safety.
Installation Process

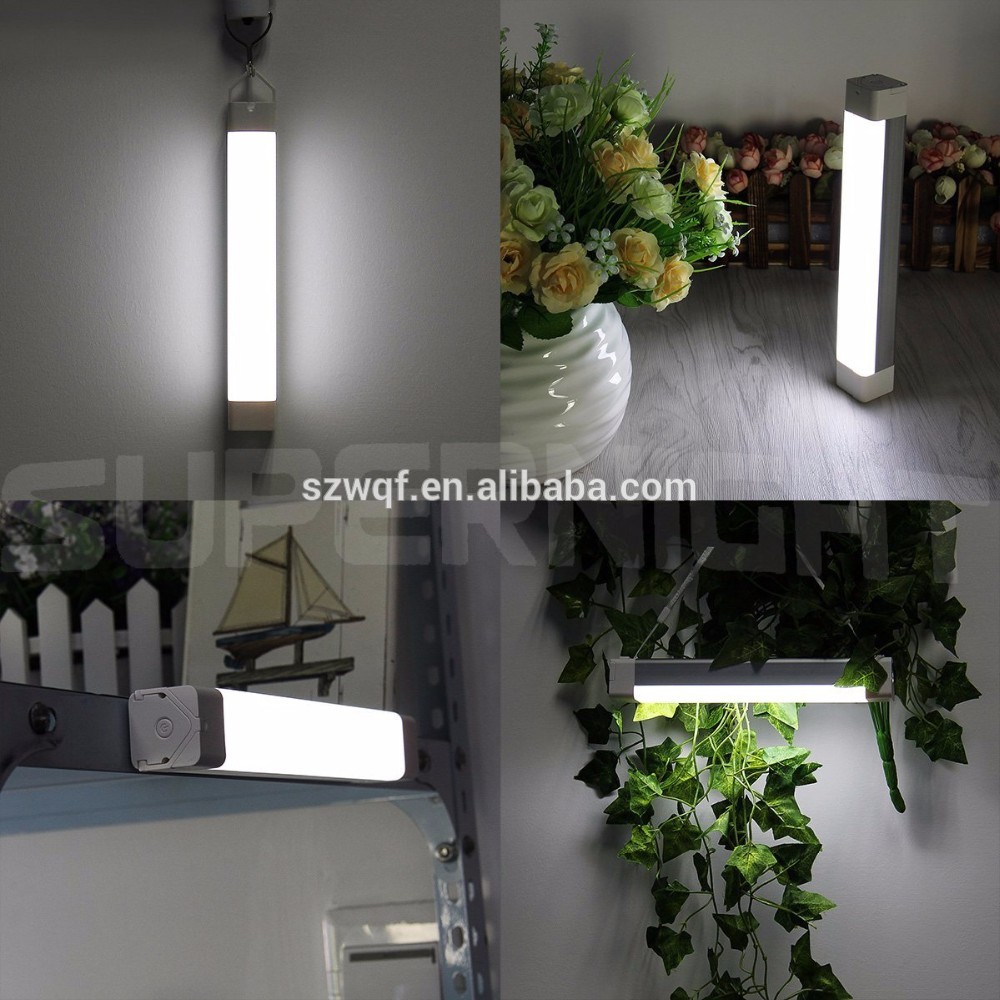

Applications
Emergency Lighting: study room, bedroom, dormitory.
Portable Lighting: camping, hiking, outdoor cycling, fishing.
Alert/Warning Lighting: road warning, SOS for help, automobile examining&repairing.
Certifications
Packing& Delivery

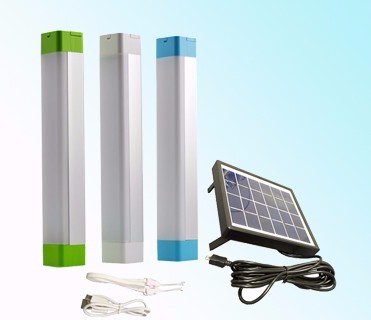

Packing:(Solar panel is not included for this price)
Accessories: One LED Lamp, One user manual, Two slings, One USB cable (Solar panel is offered according to your choice)
5W LED Lamp:
Inner Box: 36*36*270mm
G.W.：0.18kg
50pcs/CTNOuter Carton: 56*21*21cmG.W.：9kg
Payment & Delivery
1.Payment: 1.) For Sample order: PayPal ,T/T ,Western Union full payment first,and we would send out the products in 2 days (Samples in stock)
For big order:L/C, T/T, 30% deposits first and to pay the balance end before the shipment.
2.) We recommend you pay through Alibaba Trade Assurance.
2. Lead time: 1-100 pcs in one day. 100-1000pcs within 5 working days. 1000-3000pcs,5-7 working days. 3000-5000 pcs within 15 working days.
3. We usually quote EXW prices. FOB and other prices will be offered according to the quantity.
4. Shipping Port: Shenzhen, China (Mainland).
5. MOQ: pieces.(We offer free sample but would not bear the shipping cost )
6. We usually deliver the samples through TNT,Fed Ex,DHL etc.,and you would receive the products in 3~4 days after we send the products.and we would inform you of the shipping number at once when the products are delivered
7. You can decide the method of shipment.
Company Information
TSHENZHEN WOQINFENG ELECTRONICS CO., LTD.
Founded in 2011, is an innovative enterprise which has its own R&D team, production lines, marketing and sales team Our main products include Home emergency lighting like our Multi-functional LED Bulb QF-168, Multi-functional Portable LED Lamp QF-169, etc. Solar energy lighting products like Solar Powered Bulb Kit QF-178/QF-168B etc. New energy seawater powered lights like QF-167/QF-173, etc.
Covering an area of nearly 6000 square meters, we have 8 production lines and 4 aging test lines with monthly capacity of 150000-300000pcs. Most of our products have the certificates CE RoHS FCC SAA and so on for European countries and American countries. Now our new products with unique structures and designs are well-received by our customers all over the world. We are always dedicated to manufacturing innovative and unique lighting products for people to make their daily life better.
We accept OEM and ODM order, we believe that our professionalism could meet all your requirements and make you satisfactory. We are always on the road, to practise our brand faith and commitment to reach a win-win with all customers.
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 1-2 days, mass production time needs 1-2 weeks for order quantity more than 500pcs
Q3. Do you have any MOQ limit for led light order?
A: Our MOQ is 50 pcs. Sample orders acceptable
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly, let us know your requirements or application.
Secondly, We quote according to your requirements or our suggestions.
Thirdly, customer confirms the samples and places deposit for formal order.
Fourthly, We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes.We have a laser machine. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1 years warranty to this multi functional portable led lamp.
