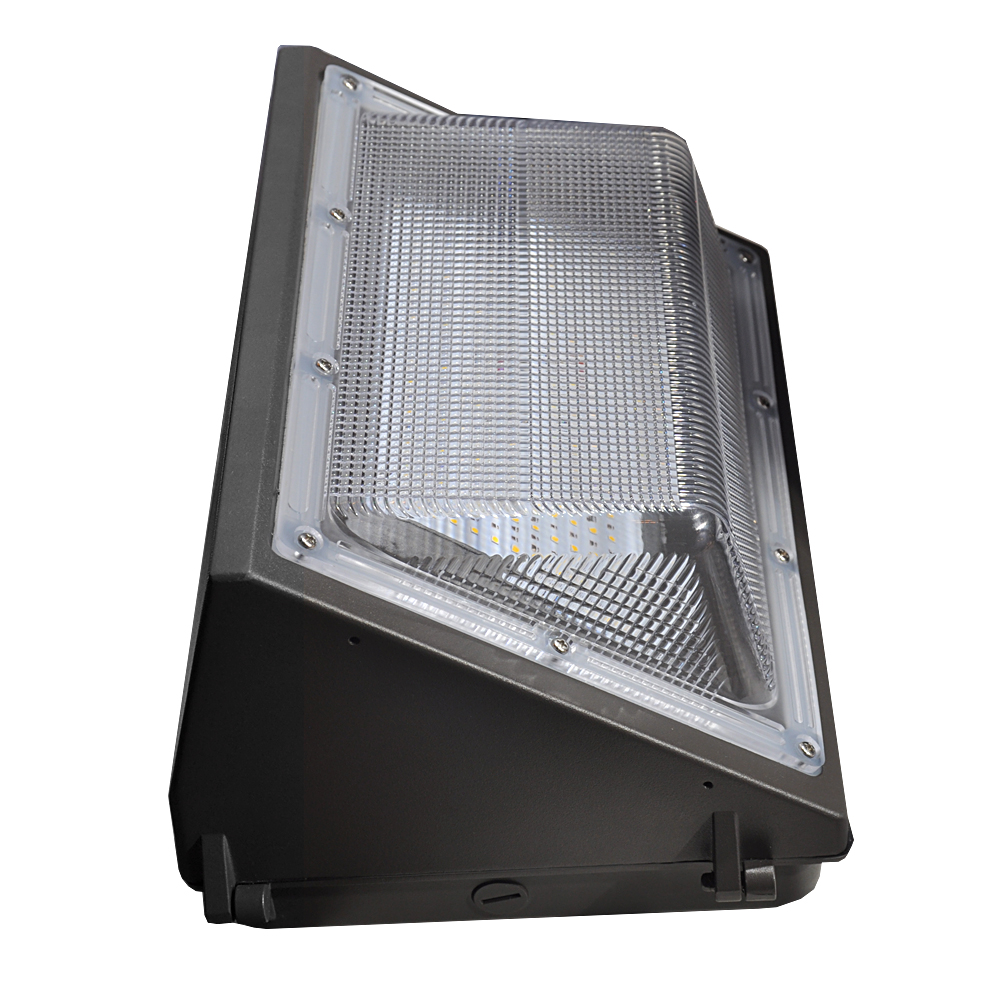

led wall pack 100w 5280-14300lm 100-480Vac 2700K-6500K ETL/cETL DLC led wallpack light with 5 years warranty
| Housing Color | Black |
| Input Voltage Range | 100-277VAC, 50/60Hz |
| Power Factor | >0.9 |
| Color Rendering Index (CRI) | >70 |
| Color Temperature (CCT) | 5000K (3000K-6000K optional) |
| Lens Materials | Tempered Glass |
| Housing Materials | Die Casting Aluminum |
| Power | 48w(60w/80w/90w/100w/130w optional ) |
Product description
120-277V Forward throw LED wall pack light for outdoor area lighting. Commonly used as a dusk to dawn light for exterior commercial and industrial buildings to light parking lots and walk ways.
Unmatched quality:
The fully gasketed housing is powder coated bronze color and IP65 rated. The lens is made from real tempered glass and will not yellow over time as it ages.
This fixture produces 3897 lumens with a 5000k color and accepts 120-277V input.
DLC and ETL listed with 5 year manufacturers warranty and 50000 hour L70 life. Compatible with photocells and motion sensors. Comes with easy installation bracket already mounted on back. No additional assembly required.
Don"t settle for inferior quality wall packs that cost more. We have the buying power to command the best pricing on high quality fixtures.
Excellent distribution of light:
This LED wallpack produces Type IV LED light distribution with a 96 degree beamspread that is perfect for mounting along walls and building perimeters to cast light out on to walk ways and parking lots.
Directional lumen output:
Conventional high intensity discharge exterior lighting utilized a bulb distributing light 360 degrees within a fixture wasting much of the of the lumen output. With LED the lumen output is focused entirely towards the optical glass reflector achieving better foot candles on the ground with less overall lumen output.
Unmatched savings beyond the electric bill:
LED Lighting not only saves you on energy costs but on maintenance costs as well. Installing LED wall pack lights virtually eliminates exterior lighting maintenance saving you time, money, and resources in addition to big energy savings over conventional HID lighting. A comparable metal halide light would consume over 200 watts of electricity compared to just 48 watts from this LED.
Item Number | Power (Watts) | Voltage Input | Driver | Product Size(mm) L x W x H | Lumen Output | CRI | Certificates |
WD-WP03B-48W | 48W | 100-277Vac | certificated | 360x235x190 | 5280 | Ra>70 | ETL/cETL,DLC |
WD-WP03B-60W | 60W | 100-277Vac | certificated | 360x235x190 | 6600 | Ra>70 | ETL/cETL,DLC |
WD-WP03B-80W | 80W | 100-277Vac | certificated | 360x235x190 | 8800 | Ra>70 | ETL/cETL,DLC |
WD-WP03B-100W | 100W | 100-277Vac | certificated | 360x235x190 | 11000 | Ra>70 | ETL/cETL,DLC |
WD-WP03B-60W | 60W | 277-480Vac | certificated | 360x235x190 | 6600 | Ra>70 | ETL/cETL,DLC |
WD-WP03B-90W | 90W | 100-277Vac | certificated | 460x248x222 | 9900 | Ra>70 | ETL/cETL,DLC |
WD-WP03B-130W | 130W | 100-277Vac | certificated | 460x248x222 | 14300 | Ra>70 | ETL/cETL,DLC |
WD-WP03B-90W | 90W | 277-480Vac | certificated | 460x248x222 | 9900 | Ra>70 | ETL/cETL,DLC |
WD-WP03B-130W | 130W | 277-480Vac | certificated | 460x248x222 | 14300 | Ra>70 | ETL/cETL,DLC |
Standard shipping carton , or customize
Cooperate with FedEX, DHL, TNT, EMS, UPS, To ensure the safety of goods quickly reach your hands
HOT product! 3000K IP65 commercial led wall pack light outdoor wall mounted led light
HOT product! 3000K IP65 commercial led wall pack light outdoor wall mounted led light
Westdeer Technology Co.,Ltd located in shenzhen China and is a skilled and knowledgeable exporter
of indoor and outdoor led manufacturer .Our main marketing is North America,Europe , Australia ,
with ETL,DLC,CE and SAA certification. Productions mainly include led light,led panel light,led street light,
led ceiling light,led wall pack light,led linear high bay,ufo led high bay light,led grow light and christmas lights .
Hope westdeer could find a way to cooperate with you .
Q1. Can I have a sample order for led light ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time ?
A: Sample needs 3-5 days , mass production time needs 1-2 weeks .
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL,UPS,FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on led light product ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products ?
A: Yes, we offer 3-5 years warranty to our products.
Q6: How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q7. Can I have a quotation and more detail of your solar light?
A: Yes,please contact us, our sales will sent you more detail and price list .
Q8. What"s the best price of this this light?
A: We have discount frequently, you can contact our sales manager to get the best price directly.
