- Input Voltage(V):
- 100-277voltage
- Lamp Luminous Flux(lm):
- 12500lm
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -25 - 50
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum Alloy
- IP Rating:
- IP65
- Certification:
- ETL
- Place of Origin:
- Guangdong, China
- Brand Name:
- WESTDEER
- Model Number:
- WD-HB07A-100W-M8U
- Application:
- WAREHOUSE, Gymnasium,Factory, Warehouse Supermarket, Car Wash place, Workshop
- Light Source:
- LED
- Product Name:
- High Cri Industrial Lighting Led High Bay Lighting 200w Ufo Led High B
- Warranty:
- 5 years
- Advantage:
- environment friendly
- Description:
- LED Industrial Hig Bay Lighting
- Power:
- 100w/150w/200w/240w
- LED Chip:
- Energy save LED chip
- Payment term:
- T/T30 with order, 70%before shipping
- CCT:
- 2700-6500K
- Waterproof rating:
- IP65
- Warranty(Years):
- 5
- Supply Ability:
- 10000 Piece/Pieces per Month
- Packaging Details
- 1pc/ctn
- Port
- Shenzhen
- Lead Time:
Quantity(Pieces) 1 - 1 >1 Est. Time(days) 5 To be negotiated
Product information of High Cri Industrial Lighting Led High Bay Lighting 200w Ufo Led High Bay
Description | |

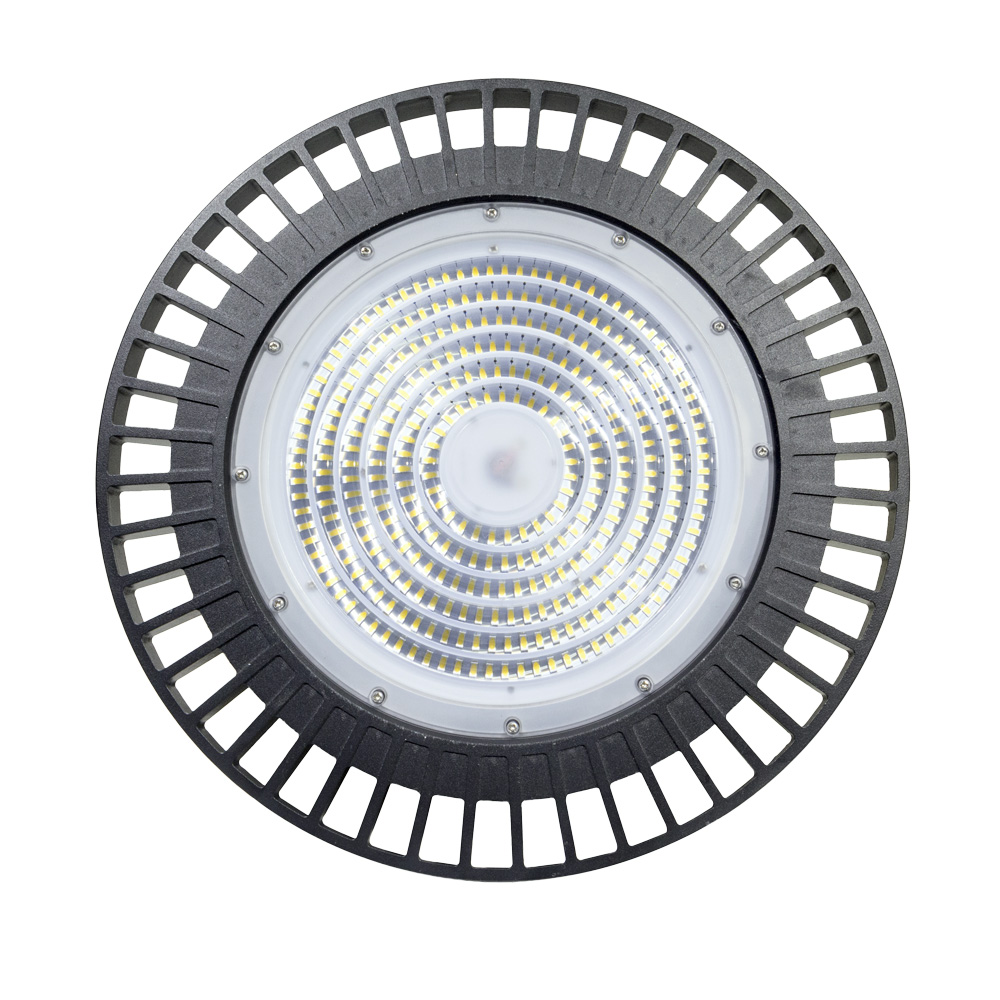

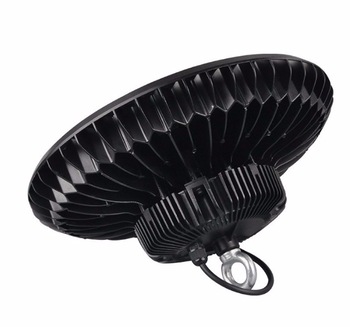

WESTDEER UFO high bay LED light, have the power with 100W, 150W, 200W and 240W, valtage input support 120-277Vac and 249-525Vac, support CCT from 2700k to 6500k, Certified. Widly use for Gymnasium, Farm, Factory, Warehouse, Supermarket, Car Wash place, Workshop, Underground Parking Lot, Court, Station and all places where need energy saving and high color rendering index lighting. | |
Material | |
Adopt high quality aluminum and acrylic material . Epistar SMD3030 led chip ,100-130lm/w,high brightness and lighting dimmable. Integrated design built-in power supply, have good heat dispation. | |
Advantage | |
1. Environmental friendly, low heat, no IR or UV radiation, low power consumption, energy-saving (can save up to 80%) 2. No RF interference, bright and soft light, can protect your eyes and brains | |
ETL | |
90% of our products are exported to North America, All products with certificate ETL |
Item Number | Power | Driver | Lumen(lm) | Voltage Input | CCT |
WD-HB07A-100W | 100W | meanwell HBG-100 | 12500lm | 100-277Vac 50-60Hz | 2700-6500K |
WD-HB07A-150W | 150W | meanwell HBG-160 | 19500lm | 100-277Vac 50-60Hz | 2700-6500K |
WD-HB07A-200W | 200W | meanwell HBG-240 | 25000lm | 100-277Vac 50-60Hz | 2700-6500K |
WD-HB07A-240W | 240W | meanwell HBG-240 | 29000lm | 100-277Vac 50-60Hz | 2700-6500K |
WD-HB07A-100W-HV | 100W | Inventronics | 12500lm | 249-525VAC 50-60Hz | 2700-6500K |
WD-HB07A-150W-HV | 150W | Inventronics | 19500lm | 249-525VAC 50-60Hz | 2700-6500K |
WD-HB07A-200W-HV | 200W | Inventronics | 25000lm | 249-525VAC 50-60Hz | 2700-6500K |
WD-HB07A-240W-HV | 240W | Inventronics | 29000lm | 249-525VAC 50-60Hz | 2700-6500K |
Specification of High Cri Industrial Lighting Led High Bay Lighting 200w Ufo Led High Bay
Strength for West Deer LED lighting | |
1. saving 80% power | |
2.Enviromental light | |
3.resourcing led lighting | |
4.low consumption, green for environment | |
5.source,safe for human | |
6.protect eye | |
7.easy to install | |
8. promise for 5ys |
Application of High Cri Industrial Lighting Led High Bay Lighting 200w Ufo Led High Bay
Widely use in:
1. Gymnasium, Farm, Factory, Warehouse
2. Supermarket, Car Wash place, Workshop
3. Underground Parking Lot, Court, Station
4. Indoor and Outdoor
5.Places where need energy saving and high color rendering index lighting
Westdeer Technology Co.,Ltd located in shenzhen China and is a skilled and knowledgeable exporter
of indoor and outdoor led manufacturer .Our main marketing is North America,Europe , Australia ,
with ETL,DLC,CE and SAA certification. Productions mainly include led light,led panel light,led street light,
led ceiling light,led wall pack light,led linear high bay,ufo led high bay light,led grow light and christmas lights .
Hope westdeer could find a way to cooperate with you .
Q1. Can I have a sample order for led light ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time ?
A: Sample needs 3-5 days , mass production time needs 1-2 weeks .
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL,UPS,FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on led light product ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products ?
A: Yes, we offer 3-5 years warranty to our products.
Q6: How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q7. Can I have a quotation and more detail of your solar light?
A: Yes,please contact us, our sales will sent you more detail and price list .
Q8. What"s the best price of this this light?
A: We have discount frequently, you can contact our sales manager to get the best price directly.
