- Input Voltage(V):
- among 100-277
- Lamp Luminous Flux(lm):
- 12500lumens
- CRI (Ra>):
- 80
- Working Temperature(℃):
- -25 - 50
- Working Lifetime(Hour):
- 50000
- Lamp Body Material:
- Aluminum Alloy
- IP Rating:
- IP65
- Certification:
- CE, ETL, RoHS
- Place of Origin:
- Guangdong, China
- Brand Name:
- WESTDEER
- Model Number:
- WD-HB07A-100W-F3Y
- Application:
- WAREHOUSE, Gymnasium,Factory, Warehouse Supermarket, Car Wash place, Workshop
- Light Source:
- LED
- Product Name:
- High Lumen Indoor And Outdoor Ufo Led High Bay 240w
- Warranty:
- 5 years
- Advantage:
- Enviromental LED lighting
- Description:
- LED Industrial Hig Bay Lighting
- Power:
- 100w/150w/200w/240w
- LED Chip:
- Energy save LED chip
- Payment term:
- T/T30 with order, 70%before shipping
- CCT:
- 2700-6500K
- Waterproof rating:
- IP65
- Warranty(Years):
- 5
Packaging & Delivery
- Selling Units:
- Single item
- Single package size:
- 37X37X20 cm
- Single gross weight:
- 7.0 kg
- Package Type:
- 1pc/ctn
- Lead Time:
Quantity(Piece) 1 - 1 >1 Est. Time(days) 5 To be negotiated
We are westdeer and the key cooperator partner with Alibaba in led light from shen zhen China .
Product information of High Lumen Indoor And Outdoor Ufo Led High Bay 240w
Description | |

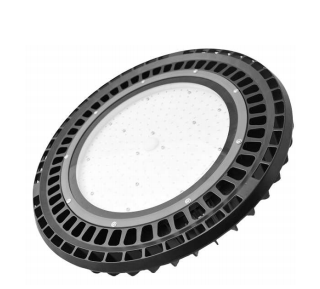

WESTDEER UFO high bay LED light, have the power with 100W, 150W, 200W and 240W, valtage input support 120-277Vac and 249-525Vac, support CCT from 2700k to 6500k, UL Certified. Widly use for Gymnasium, Farm, Factory, Warehouse, Supermarket, Car Wash place, Workshop, Underground Parking Lot, Court, Station and all places where need energy saving and high color rendering index lighting. | |
Material | |
Adopt high quality aluminum and acrylic material . Epistar SMD3030 led chip ,100-130lm/w,high brightness and lighting dimmable. Integrated design built-in power supply, have good heat dispation. | |
Advantage | |
1. Environmental friendly, low heat, no IR or UV radiation, low power consumption, energy-saving (can save up to 80%) 2. No RF interference, bright and soft light, can protect your eyes and brains | |
ETL/cETL | |
90% of our products are exported to North America, All products with certificate ETL/cETL, some of them have the Energy Star |
Item Number | Power | Driver | Lumen(lm) | Voltage Input | CCT |
WD-HB07A-100W | 100W | meanwell HBG-100 | 12500lm | 100-277Vac 50-60Hz | 2700-6500K |
WD-HB07A-150W | 150W | meanwell HBG-160 | 19500lm | 100-277Vac 50-60Hz | 2700-6500K |
WD-HB07A-200W | 200W | meanwell HBG-240 | 25000lm | 100-277Vac 50-60Hz | 2700-6500K |
WD-HB07A-240W | 240W | meanwell HBG-240 | 29000lm | 100-277Vac 50-60Hz | 2700-6500K |
WD-HB07A-100W-HV | 100W | Inventronics | 12500lm | 249-525VAC 50-60Hz | 2700-6500K |
WD-HB07A-150W-HV | 150W | Inventronics | 19500lm | 249-525VAC 50-60Hz | 2700-6500K |
WD-HB07A-200W-HV | 200W | Inventronics | 25000lm | 249-525VAC 50-60Hz | 2700-6500K |
WD-HB07A-240W-HV | 240W | Inventronics | 29000lm | 249-525VAC 50-60Hz | 2700-6500K |
Specification of High Lumen Indoor And Outdoor Ufo Led High Bay 240w
Strength for West Deer LED lamp | |
1. energy saving 80% | |
2.Enviromental lamp | |
3.resourcing lighting | |
4.No hazardous materials(Mercury / Lead free) | |
5.Great for heat dissipation and guarantee the life of LED bulb | |
6.High Brightness | |
7.not difficult in installation | |
8. warranty for 5ys |

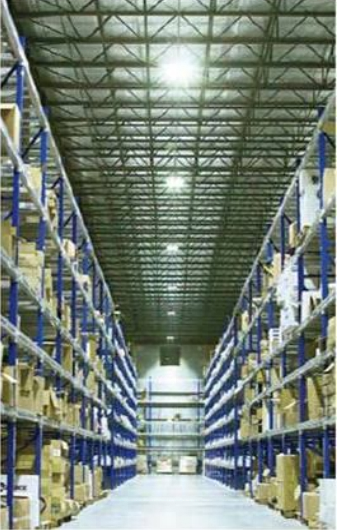

Application of High Lumen Indoor And Outdoor Ufo Led High Bay 240w
Widely use in:
1. Gymnasium, Farm, Factory, Warehouse
2. Supermarket, Car Wash place, Workshop
3. Underground Parking Lot, Court, Station
4. Indoor and Outdoor
5.Places where need energy saving and high color rendering index lighting
Q1. Can I have a sample order for led light ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time ?
A: Sample needs 3-5 days , mass production time needs 1-2 weeks .
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL,UPS,FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on led light product ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products ?
A: Yes, we offer 3-5 years warranty to our products.
Q6: How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q7. Can I have a quotation and more detail of your solar light?
A: Yes,please contact us, our sales will sent you more detail and price list .
Q8. What"s the best price of this this light?
A: We have discount frequently, you can contact our sales manager to get the best price directly.
