Commercial Led Linear Lighting Industrial Tunnel Waterproof Ip65 Led High Bay Replace Led Pendant Light
Click on the image to view the original image
Product： views：3Commercial Led Linear Lighting Industrial Tunnel Waterproof Ip65 Led High Bay Replace Led Pendant Light
Branch： WESTDEER
Unit Price： Negotiated
Min.Order：
Supply：
Delivery： Shipment within days since the date of payment
Valid until： Long Term
Updated on： 2019-10-16 15:23
  Negotiated
Product Details
Overview
Quick Details
Input Voltage(V):
120-277volt, 60hz
Lamp Luminous Flux(lm):
9750(lm)
CRI (Ra>):
80
Working Temperature(℃):
-20 - 55
Working Lifetime(Hour):
50000
Lamp Body Material:
Aluminum Alloy
IP Rating:
IP44
Certification:
ETL
Place of Origin:
China
Brand Name:
WESTDEER
Model Number:
LHB-2FTN-75W-C7E
Application:
WAREHOUSE, Gymnasium,Factory, Warehouse Supermarket, Car Wash place, Workshop
Light Source:
LED
Product Name:
Commercial Led Linear Lighting Industrial Tunnel Wat
Warranty:
5 years
Advantage:
Green material
Description:
LED Linear Hig Bay Lighting
LED Chip:
Energy save LED chip
Power:
70W/96W/140W/186W/286W
CCT:
80
Voltage:
120-277V, and 277-480V
LED Light Source:
2835chip
Warranty(Years):
5
Packaging & Delivery
Packaging Details
1pc/ctn
Lead Time:
Quantity(Pieces)1 - 1 >1
Est. Time(days)5To be negotiated
WHO WE ARE?
We are westdeer and the key cooperator partner with Alibaba in led light from shen zhen China .







Product info.

Product information of Ul Dlc Etl Listed Commercial Led Linear Lighting Industrial Tunnel Waterproof Ip65 Led High Bay Replace Led Pendant Light





Description

 WESTDEER Linear high bay LED light, have the power with 70W, 96W, 140W and 186W and 286W, valtage input support 120-277Vac and 277-480Vac, support CCT from 3000k to 5000k. Widly use for Gymnasium, Farm, Factory, Warehouse, Supermarket, Car Wash place, Workshop, Underground Parking Lot, Court, Station and all places where need energy saving and high color rendering index lighting.


Material


Adopt high quality aluminum and acrylic material .
Epistar SMD2835 led chip ,130-150lm/w,high brightness and lighting dimmable.

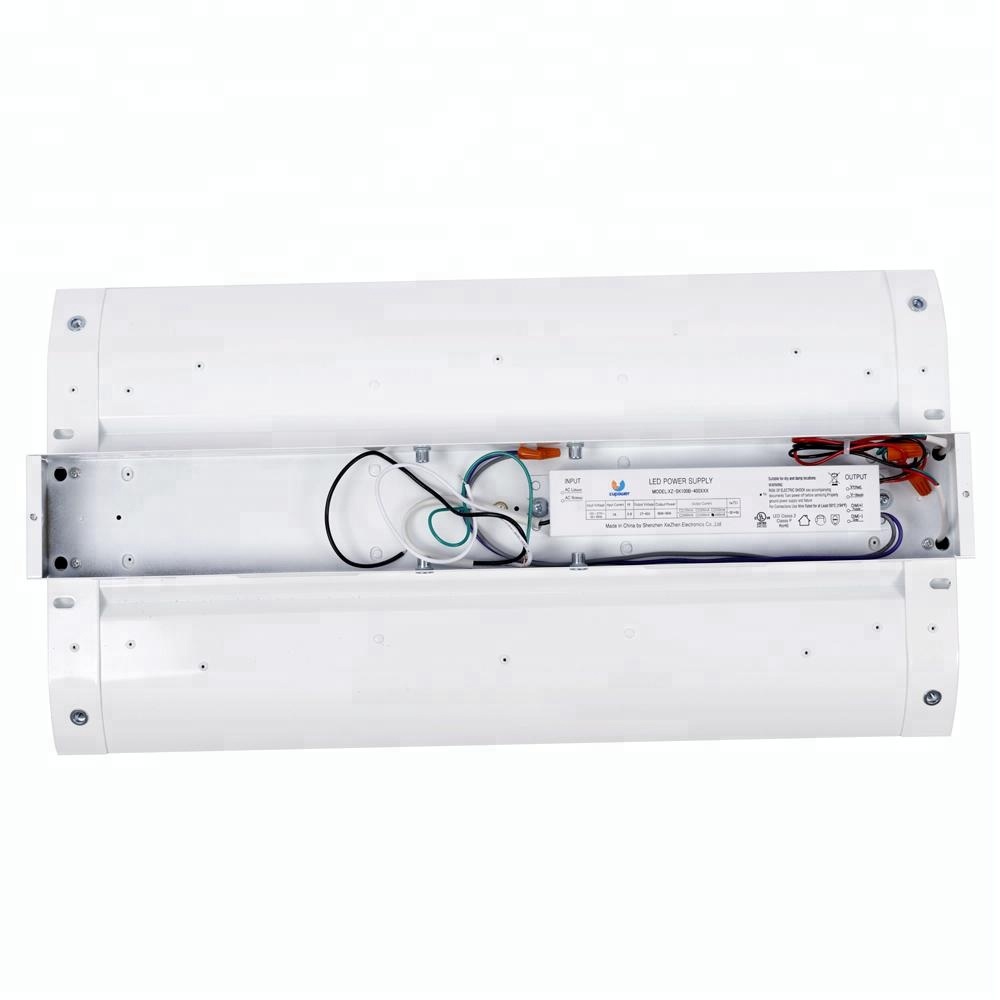

Integrated design built-in power supply, have good heat dispation.


Advantage

1. Environmental friendly, low heat, no IR or UV radiation, low power consumption, energy-saving (can save up to 80%)

2. No RF interference, bright and soft light, can protect your eyes and brains
3. High quality and long service life, can light up to 50,000hrs
4. Safe power interface, easy to install and dismantle

ETL/cETL


90% of our products are exported to North America, most of them with certificate ETL/cETL, some of them have the Energy Star







Specification





Item NumberPowerCRILumen(lm)Voltage InputCCTLumen efficiency
LHB-2FTN-75W75W≥80Ra9750
without lens

120-277V     Non Dimmable



and 277-480Vac-Non Dimmable

3000K



4000K



5000K

version1: 130lm/w



version2:  150lm/w

LHB-2FTN-98W98W≥80Ra12740
without lens
LHB-2FTW-150W150W≥80Ra19500
without lens
LHB-4FTN-196W196W≥80Ra25480
without lens
LHB-4FTW-296W296W≥80Ra44400
without lens

 Specification of Ul Dlc Etl Listed Commercial Led Linear Lighting Industrial Tunnel Waterproof Ip65 Led High Bay Replace Led Pendant Light





Advantage for West Deer LED lighting

 1.save 80 percent power
 2.Enviromental lamp
 3.resourcing led lamp
 4.No pollution & contaminates
 5.source,safe for human
 6.High Brightness
 7.easy installation
 8.warranty for 5years







Applications



Application of Ul Dlc Etl Listed Commercial Led Linear Lighting Industrial Tunnel Waterproof Ip65 Led High Bay Replace Led Pendant Light

Widely use in:

1. Gymnasium, Farm, Factory, Warehouse
2. Supermarket, Car Wash place, Workshop
3. Underground Parking Lot, Court, Station
4. Indoor and Outdoor

5.Places where need energy saving and high color rendering index lighting





COMPANY INFORMATION



Westdeer Technology Co.,Ltd located in shenzhen China and is a skilled and knowledgeable exporter

of indoor and outdoor led manufacturer .Our main marketing is North America,Europe , Australia ,

with ETL,DLC,CE and SAA certification. Productions mainly include led light,led panel light,led street light,

led ceiling light,led wall pack light,led linear  high bay,ufo led high bay light,led grow light and christmas lights .

Hope westdeer could find a way to cooperate with you .

FAQ
Q1. Can I have a sample order for led light ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.



Q2. What about the lead time ?
A: Sample needs 3-5 days , mass production time needs 1-2 weeks .



Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL,UPS,FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.



Q4. Is it OK to print my logo on led light product ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.



Q5: Do you offer guarantee for the products ?
A: Yes, we offer 3-5 years warranty to our products.



Q6: How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.



Q7. Can I have a quotation and more detail of your solar light?
A: Yes,please contact us, our sales will sent you more detail and price list .



Q8. What"s the best price of this this light?
A: We have discount frequently, you can contact our sales manager to get the best price directly.
