| Description |

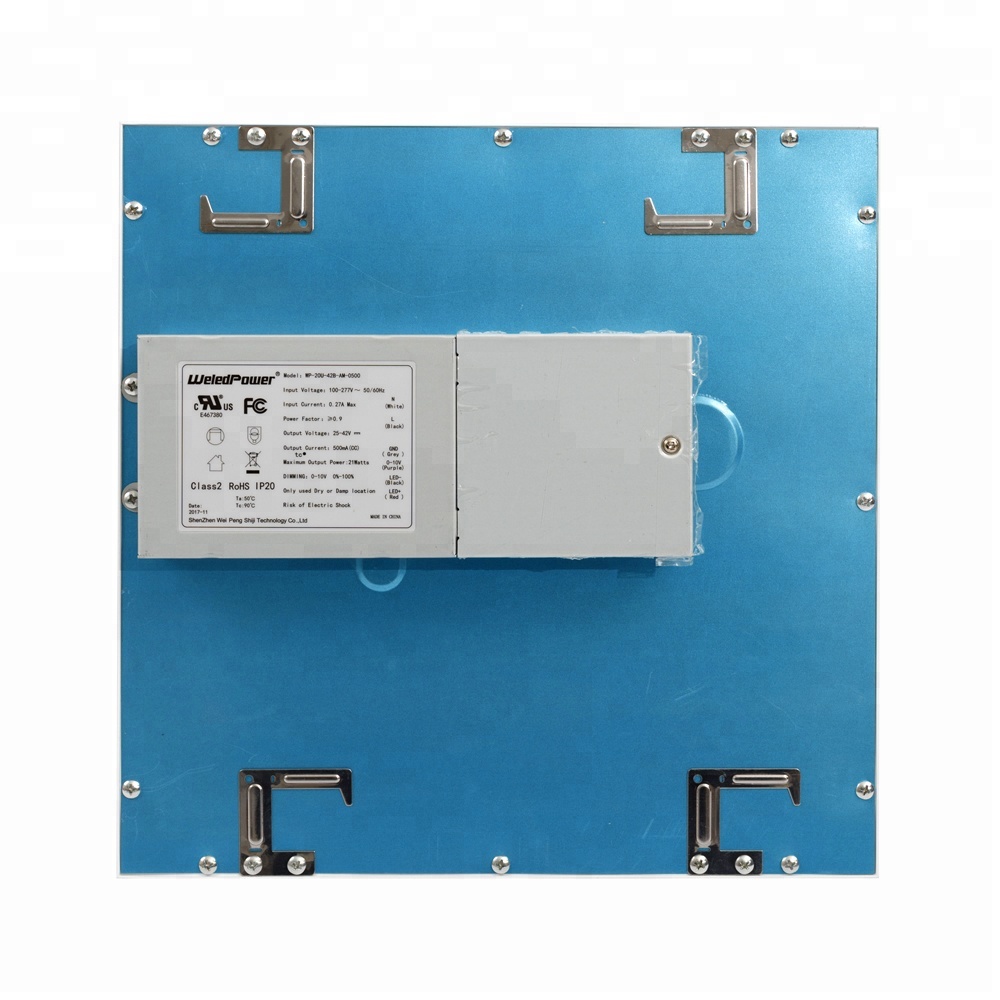

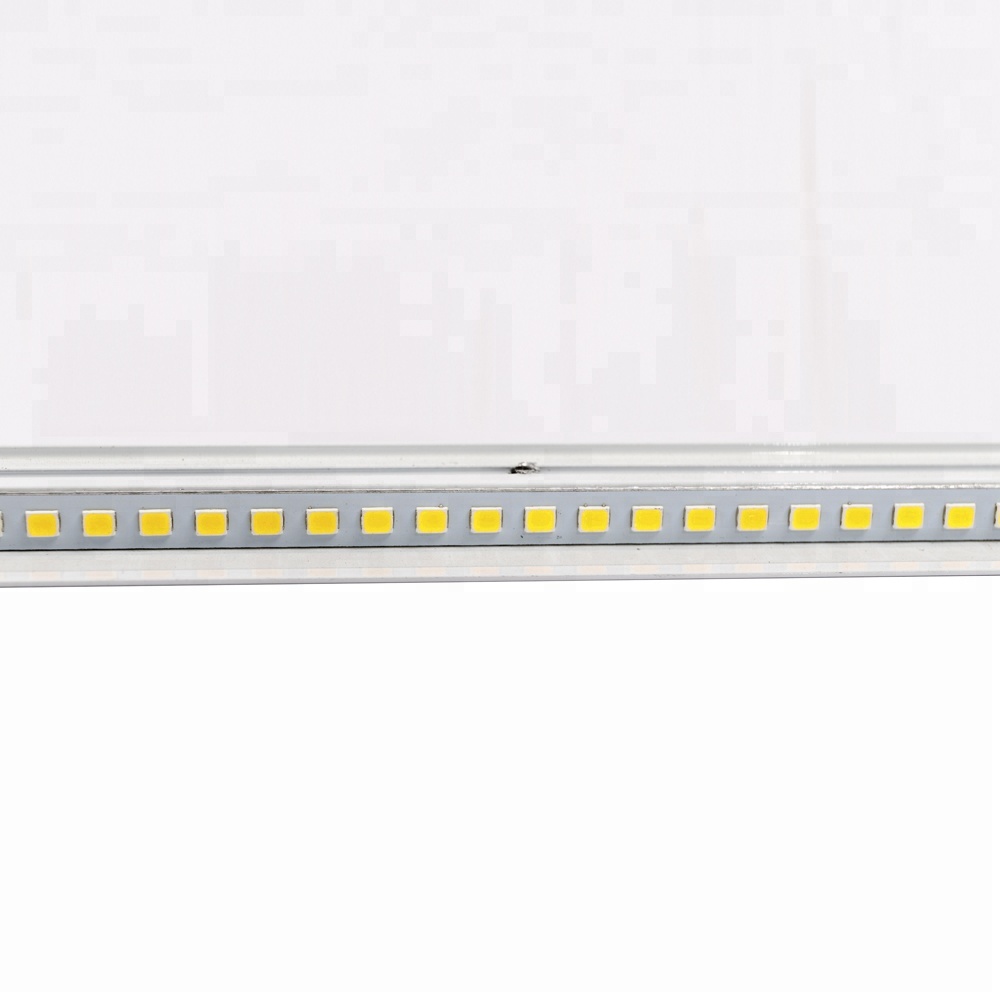

WestDeerUltra Slim led panel light are thin, custom sizable, optical acrylic sheets with high output tier one LEDs embed-ded along the edge of the LED Light Panels and an engraved light distribution matrix across the back of the panel.
This surface led panel light distribution grid pattern is optimized for each specific panel size to ensure uniform and bright illumination over the face of the panel. With their minimal power consumption, long lifespan, uniform, bright illumination and thin, lightweight characteristics, WestDeerUltra Slim LED panel to traditional fluorescent back light systems. | |
Dimension | |
| | |
| | Advantage |
80% energy Saving in comparison to conven-tional lights. No UV & IR emission
Environmentally friendly – fully recyclable, no mercury or other hazardous materials
Simple and convenient installation Durable with life span of over 50,000 hours. | |
ETL | |
| 90% of our panel lamps products are exported to North America, some are to Europure and Aisa. All products with certificate, some of them have the Energy Star |
Item Number | WD-P2-18W CNS/CDS | CRI | Ra> 80 |
Dimension | 303x303x10mm (1"x1" x 1/2") | Beam Angle | 150° |
Net Weight | 1 kg ( 2.2 lbs) | Operation Temp | -40~ +40℃(-40~104 ℉) |
Power Consumption | 18W | Dimmable | Yes (0~10 V) |
Lumen Output | Warm white:1800lm Cool white:1400LM | Application | Indoor Only |
| Efficiency | 100lm/W | Installation | Suspension/Wall Mount Recessed/Ceiling Mount |
| Voltage Input | 100~277V | Safety Certificate | ETL |
| LED Type | SMD 2835 | Energy Saving Qualification | DLC |
| Power Supply | Driver | Life Span | 50,000 hours |
| Color Temp | 3000K/4000K/5000K | Warranty | 5 years |
Specification of WESTDEER LED flat panel light 10W/32W/38W 1X4
Application of WESTDEER LED flat panel light 10W/32W/38W 1X4
Widely use in:
1.Office Lighting
2.Restaurants
3.Hotels
4.Subway Stations
5.School and Hospital
6.Hallway & lobbies
7.Meeting Rooms
Westdeer Technology Co.,Ltd located in shenzhen China and is a skilled and knowledgeable exporter
of indoor and outdoor led manufacturer .Our main marketing is North America,Europe , Australia ,
with ETL,DLC,CE and SAA certification. Productions mainly include led light,led panel light,led street light,
led ceiling light,led wall pack light,led linear high bay,ufo led high bay light,led grow light and christmas lights .
Hope westdeer could find a way to cooperate with you .
Q1. Can I have a sample order for led light ?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time ?
A: Sample needs 3-5 days , mass production time needs 1-2 weeks .
Q3. How do you ship the goods and how long does it take to arrive ?
A: We usually ship by DHL,UPS,FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q4. Is it OK to print my logo on led light product ?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q5: Do you offer guarantee for the products ?
A: Yes, we offer 3-5 years warranty to our products.
Q6: How to deal with the faulty ?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity.
For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
Q7. Can I have a quotation and more detail of your solar light?
A: Yes,please contact us, our sales will sent you more detail and price list .
Q8. What"s the best price of this this light?
A: We have discount frequently, you can contact our sales manager to get the best price directly.
