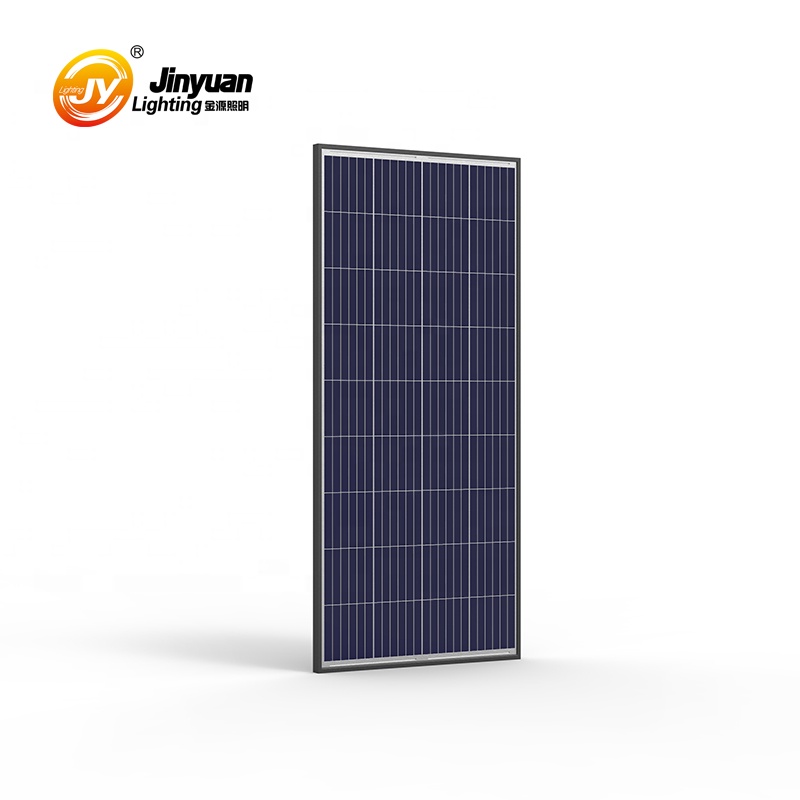

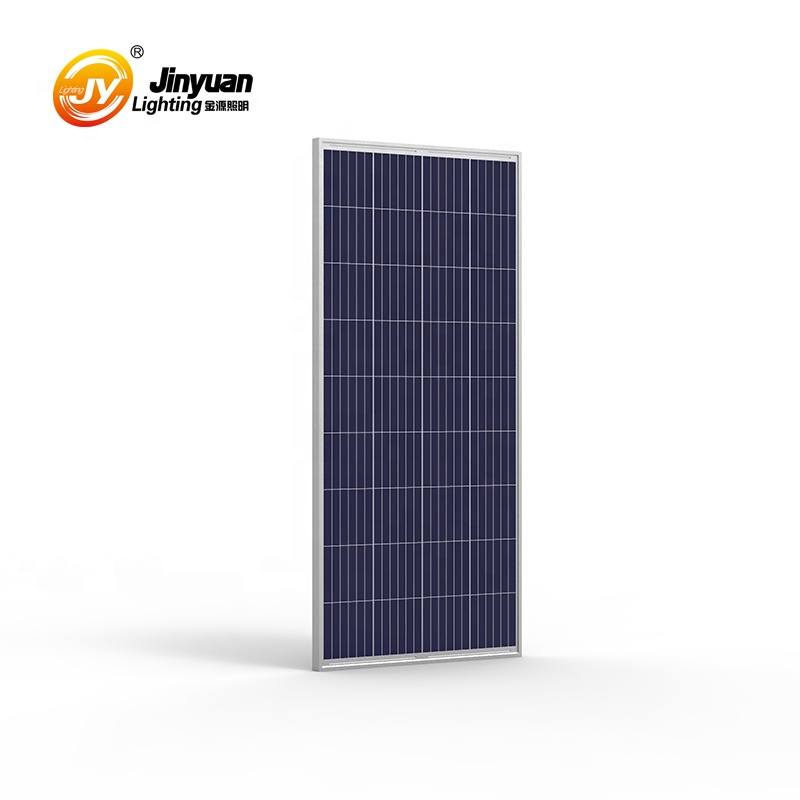

36 cells polycrystalline sunpal 155W 160W 165W 150 w solar panel
Product Description
Product Number | JY150P36 | JY155P36 | JY160P36 | JY160P36 |
| Rated Maximum Power(Pmax) | 150W | 155W | 160W | 165W |
| Open Circuit Voltage(Voc) | 22.9V | 23V | 23.3V | 23.4V |
| Short Circuit Voltage(Isc) | 8.42A | 8.66A | 9.14 | 9.21A |
| Rated Power Maximum Voltage(Vmp) | 18.4V | 18.8V | 19V | 19.1V |
| Rated Power Maximum Current(Imp) | 8.15A | 8.24A | 8.55A | 8.64A |
| Module Efficiency | 15.02% | 15.52% | 16.02% | 16.52% |
| Maximum Reverse Current Protection Rating | 15A | |||
| Solar Irradiance | 1000W/m² | |||
| Solar Cell Temp. | 25℃ | |||
| AM | 1.5 | |||
| Solar Module Temperature | ||||
| Rated Maximum Power Temperature(Pmax Temp.) | -0.395%/℃ | |||
| Open Circuit Voltage Temperature(Voc Temp.) | -0.317%/℃ | |||
| Short Circuit Voltage Temperature(Isc Temp.) | 0.0577%/℃ | |||
| Normal Operating Condition Test(NOCT) | 45±2℃ | |||
| Specifictaion | ||||
| Solar Cell Dimension | Polycrystalline:156.75×156.75×0.2mm(6 inches) | |||
| Soalr Cell Permutation | 36(4×9)pcs | |||
| Module Dimension | 1482×674×35mm | |||
| Module Weight | 11.3kg | |||
| Glass | 3.2mm Tempered Glass | |||
| Cable | 4mm²×900mm | |||
| Packaging | |||
| Box Dimension/Gross Weight | 1512×704×75mm/24.5kg (2pcs) | ||
| Box Cover+Wodden Pallet | 1522×1108×832mm | ||
| Pallet Volume/Gross Weight | 30pcs/386kg | 26pcs/351.2kg | 24pcs/332.6kg |
| Container Volume | 40HQ : 900pcs 40GP : 900pcs 20GP : 420pcs | 40HQ : 900pcs 40GP : 900pcs 20GP : 420pcs | 40HQ : 720pcs 40GP : 720pcs 20GP : 336pcs |
