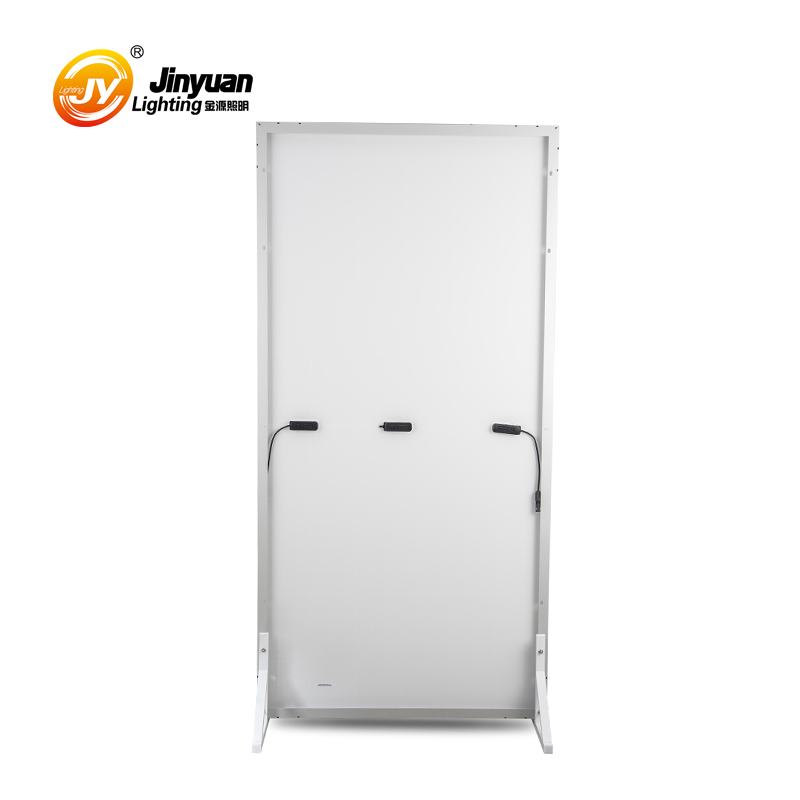

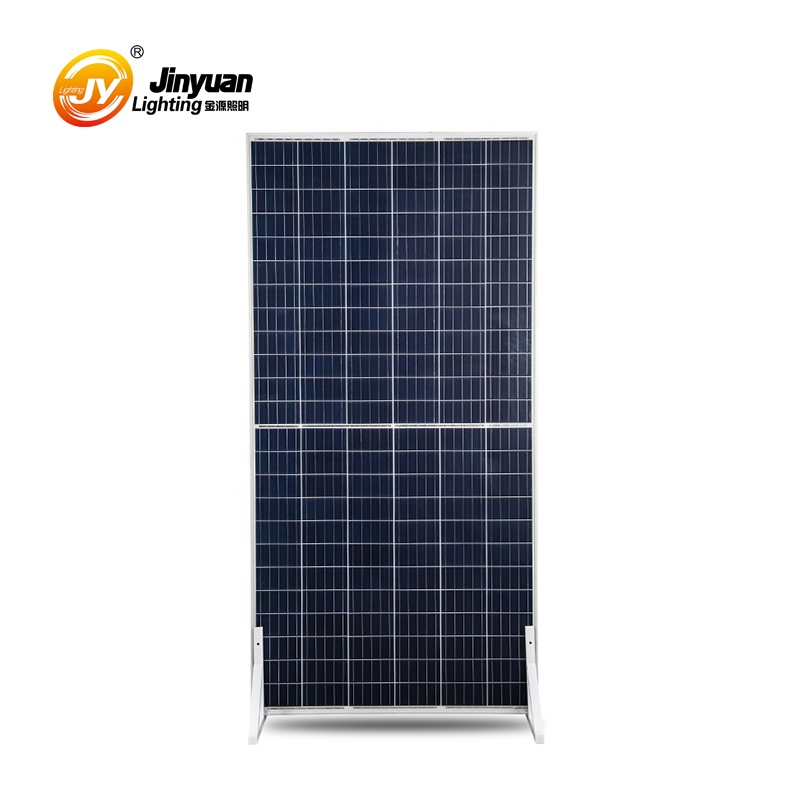

335w 340w 72 cell half cut solar photovoltaic module 355w solar panel
Product Description
Product Number | JY335P72-H | JY340P72-H | JY345P72-H | JY350P72-H | JY355P72-H |
| Rated Maximum Power(Pmax) | 335W | 340W | 345W | 350W | 355W |
| Open Circuit Voltage(Voc) | 47.1V | 47.2V | 47.3V | 47.5V | 47.8V |
| Short Circuit Voltage(Isc) | 9.19A | 9.24A | 9.31A | 9.38A | 9.45A |
| Rated Power Maximum Voltage(Vmp) | 38V | 38.7V | 38.9V | 39.2V | 39.3V |
| Rated Power Maximum Current(Imp) | 8.82A | 8.79A | 8.87A | 8.93A | 9.04A |
| Module Efficiency | 16.94% | 17.2% | 17.45% | 17.7% | 17.96% |
| Maximum reverse current protection rating | 15A | ||||
| Solar Irradiance | 1000W/m² | ||||
| Solar Cell Temp. | 25℃ | ||||
| AM | 1.5 | ||||
| Solar Module Temperature | |||||
| Rated Maximum Power Temperature(Pmax Temp.) | -0.37%/℃ | ||||
| Open Circuit Voltage Temperature(Voc Temp.) | -0.29%/℃ | ||||
| Short Circuit Voltage Temperature(Isc Temp.) | 0.048%/℃ | ||||
| Normal Operating Condition Test(NOCT) | 45±2%/℃ | ||||
| Specifictaion | |||||
| Solar Cell Dimension | Polycrystalline:156.75×156.75×0.2mm(6 inches) | ||||
| Soalr Cell Permutation | 144(12×12)pcs | ||||
| Module Dimension | 1993×992×40mm | ||||
| Module Weight | 21.7kg | ||||
| Glass | 3.2mm Tempered Glass | ||||
| Cable | 4mm²×900mm | ||||
| Packaging | |
| Package | Box(2pcs)/Wodden Pallet(26pcs) |
| Box Dimension/Weight | 2022×1020×85mm/40.5kg |
| Box Cover+Wodden Pallet/Weight | 2022×1108×1150mm/616.2kg |
