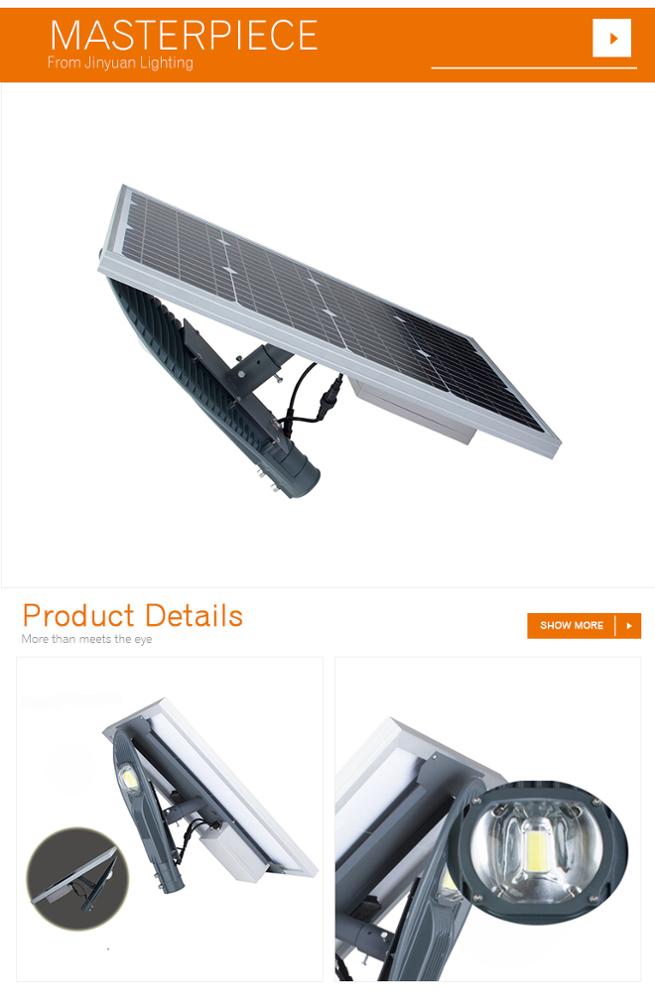

15W 60W led light integrated panel solar lamp street for outdoor lighting
Product Description
Product number: | SSL01 | SSL05 |
| LED rated power(Max): | 15W | 60W |
| Lumen output(Max): | 1800Lm | 7200Lm |
| Beam angle: | 60°×120° | 60°×130° |
| Solar panel nominal power: | 30W | 120W |
| Solar panel size: | 670*420*25mm | 1240*670*35mm |
| Solar panel voltage at Pmax(Vmp): | 18V | |
| Solar panel current at Pmax(Imp): | 1.56A | 6.67A |
| Battery type: | LiFePo4 | |
| Battery nominal capacity: | 153.6Wh | 1152Wh |
| Battery nominal voltage: | 12.8V | |
| Battery BMS battery management system: | Yes | |
| Recommended height of installation: | 4-6M | 6-8M |
