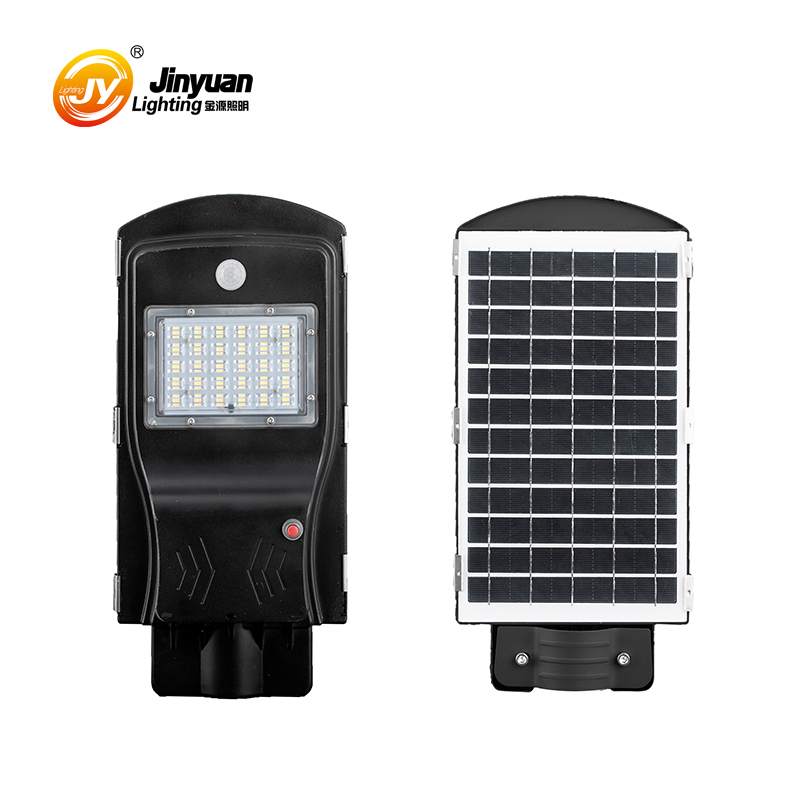

IP65 10w 20w 30w LED light integrated panel street lamp solar for road
Product Description
Product number: | LY04A | LY04B | LY04C |
| LED rated power(Max): | 10W | 20W | 30W |
| Lumen output(Max): | 600Lm | 1200Lm | 1800Lm |
| Beam angle: | 60°×120° | ||
| Solar panel nominal power: | 7.6W | 10.3W | 15.8W |
| Solar panel size: | 291.5*171.5*4.5mm | 383.5*194.5*4.5mm | 499*208.5*4.5mm |
| Solar panel voltage at Pmax(Vmp): | 5.5V | 5.5V | 6V |
| Solar panel current at Pmax(Imp): | 1.32A | 1.77A | 2.54A |
| Battery type: | LiFePo4 32650 | ||
| Battery nominal capacity: | 12Ah | 18Wh | 24Wh |
| Battery nominal voltage: | 3.2V | ||
| Battery BMS battery management system: | No | ||
| -0℃ operation: | No | ||
| Recommended height of installation: | 2-4M | 4-5M | 5-6M |
