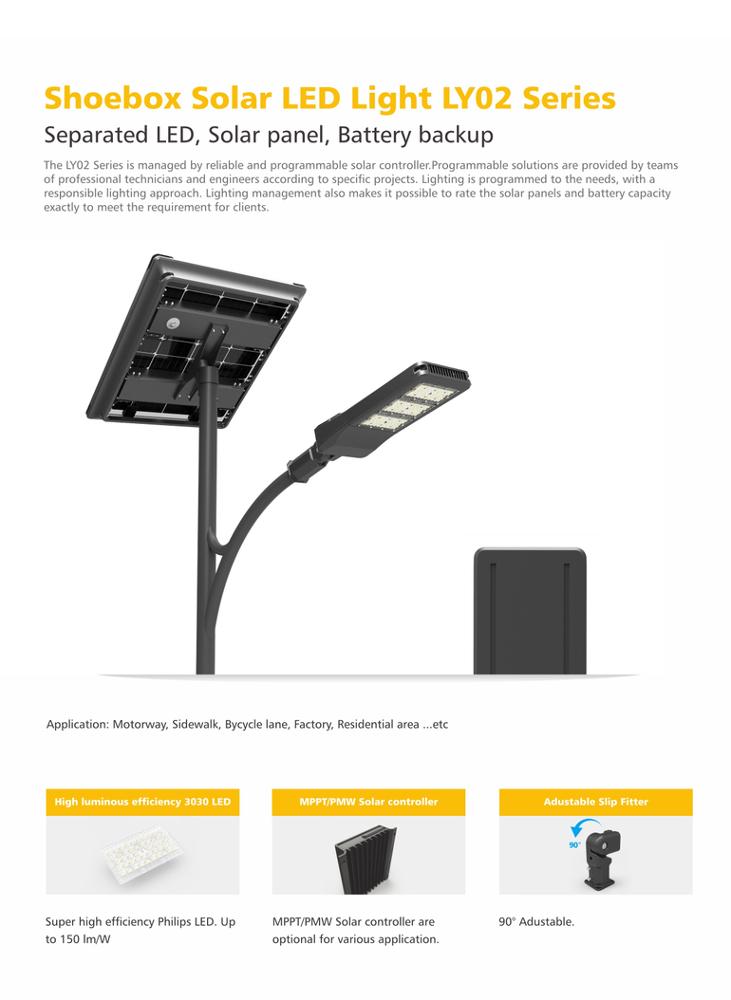

aluminum 30W 60W 90W lamp street light led integrated solar streetlamp
Product Description
Product number: | LY02A | LY02B | LY02C |
| LED rated power(Max): | 30W | 60W | 90W |
| Lumen output(Max): | 4500Lm | 9000Lm | 13500Lm |
| Beam angle: | 50°×140°/70°×140°(Optional) | ||
| Solar panel nominal power: | 6W | 120W | 200W(2×100W) |
| Solar panel size: | 670*620*30mm | 1470*670*35mm | 1020*670*30mm |
| Solar panel voltage at Pmax(Vmp): | 18V | 18V | 36V |
| Solar panel current at Pmax(Imp): | 3.29A | 6.66A | 5.60A |
| Battery type: | LiFePo4 (NiCoMn Optional) | ||
| Battery nominal capacity: | 640Wh | 1408Wh | 2304Wh |
| Battery nominal voltage: | 12.8V | ||
| Battery BMS battery management system: | Yes | ||
| -0℃ operation: | Extreme low temperature solution optional | ||
| Recommended height of installation: | 4-6M | 5-6M | 6-8M |
