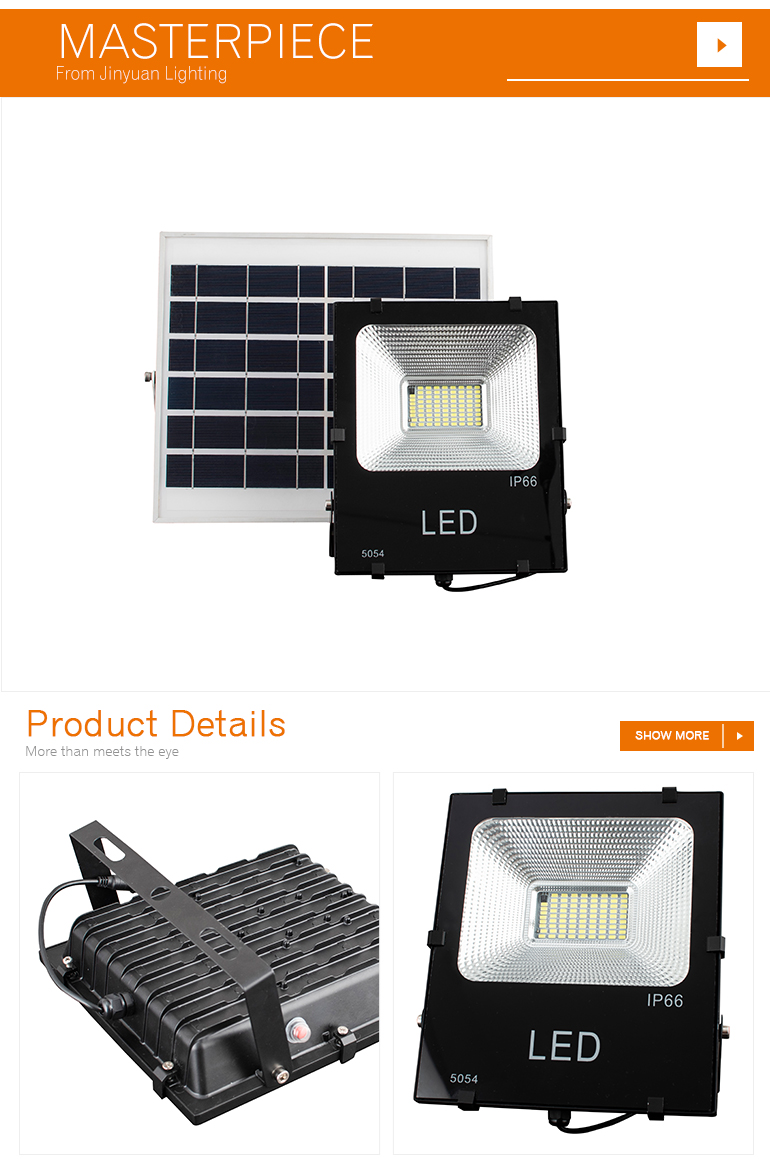

high efficient 10w 20w 30w led powered solar flood light outdoor
Product Description
Product number: | TY01A | TY01B | TY01C |
| LED rated power(Max): | 10W | 20W | 30W |
| Lumen output(Max): | 600Lm | 1200Lm | 1800Lm |
| Beam angle: | 110° | ||
| Solar panel nominal power: | 5W | 10W | 18W |
| Solar panel size: | 241*181*18mm | 343*283*18mm | 373*343*18mm |
| Solar panel voltage at Pmax(Vmp): | 6V | 6V | 6V |
| Solar panel current at Pmax(Imp): | 0.81A | 1.62A | 3.05A |
| Solar panel lifetime: | 25years | ||
| Battery type: | Li NiCoMn 18650 | ||
| Battery nominal capacity: | 6Ah | 14Ah | 20Ah |
| Battery nominal voltage: | 3.7V | ||
| Battery BMS battery management system: | Yes | ||
| -0℃ operation: | No | ||
| Structural length: | 206mm | 230mm | 270mm |
| Structural width: | 172mm | 186mm | 223mm |
| Structural height: | 42mm | 42mm | 48mm |
